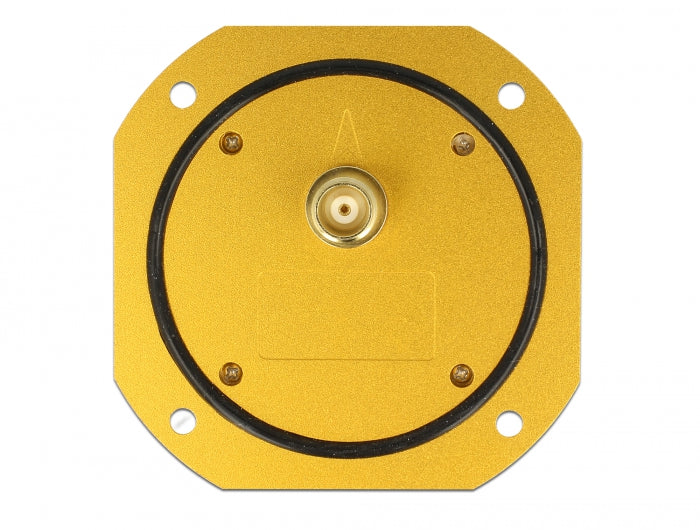

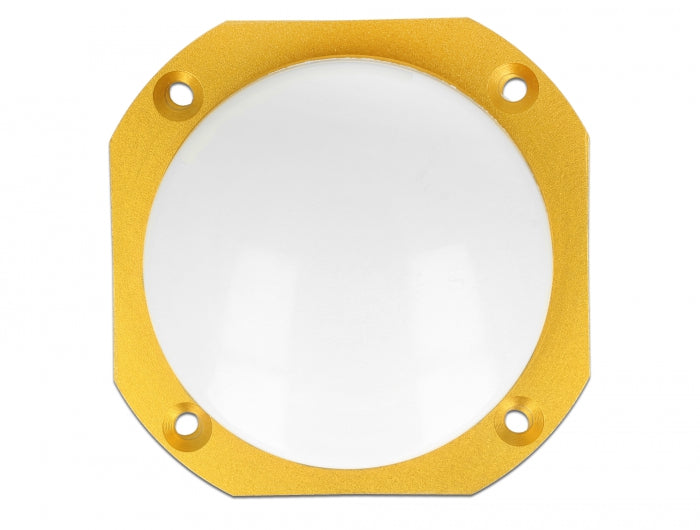

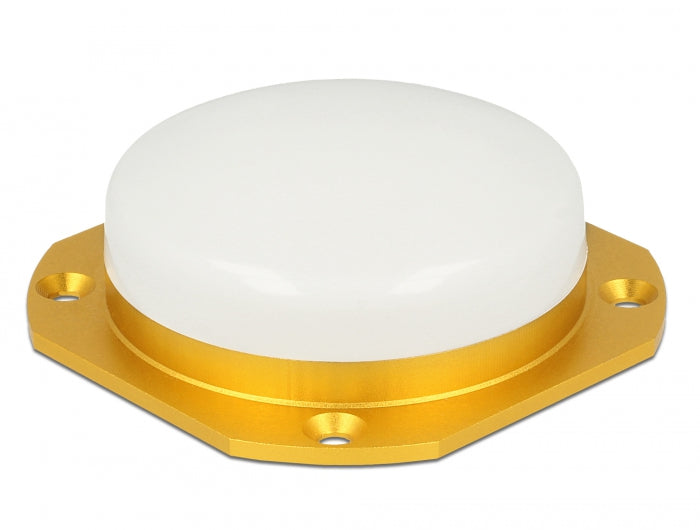

Navilock 60562 Nl-60561M Dualfeed Gnss Beidou Galileo Glonass Gps T...
Country Of Origin: China
• Patch antenna GNSS
Frequency range:
1559.052 - 1616.000 MHz
1205.094 - 1278.750 MHz
GNSS bands:
BEIDOU: B1, B1-2
GALILEO: E1
GLONASS: G1, G2
GPS: L1, L2
Antenna gain: 3 dBi
VSWR: 2
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GNSS:
Frequency range:
1559.052 - 1616.000 MHz
1205.094 - 1278.750 MHz
GNSS bands:
BEIDOU: B1, B1-2
GALILEO: E1
GLONASS: G1, G2
GPS: L1, L2
Gain: 40 dBi
Noise figure: < 1.5 dB
Passband fluctuation: +/- 1 dB
Voltage: 3.3 - 5.0 V
Current: 45 mA
VSWR: < 2
1 dB compression point P1dB: > 0 dB
Impedance: 50 Ohm
• Housing colour: white
• Housing material: ABS
• Protection class: IP67
• Operating temperature: -40 °C ~ 85 °C
• Weight: ca. 150 g
• Diameter: ca. 90.0 mm
• Height: ca. 30.3 mm
-
