Navilock | SKU: DE-60560-E | Barcode: DOES NOT APPLY

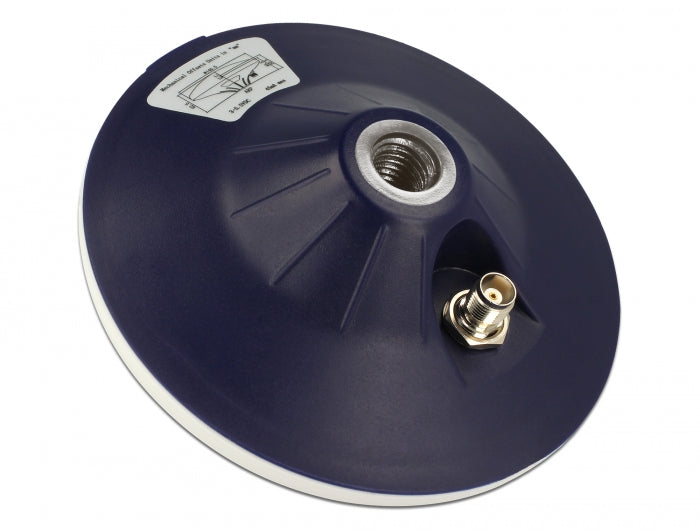

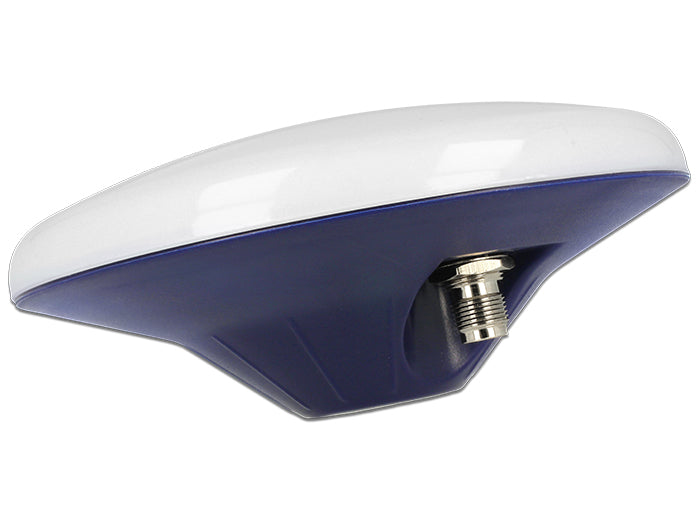

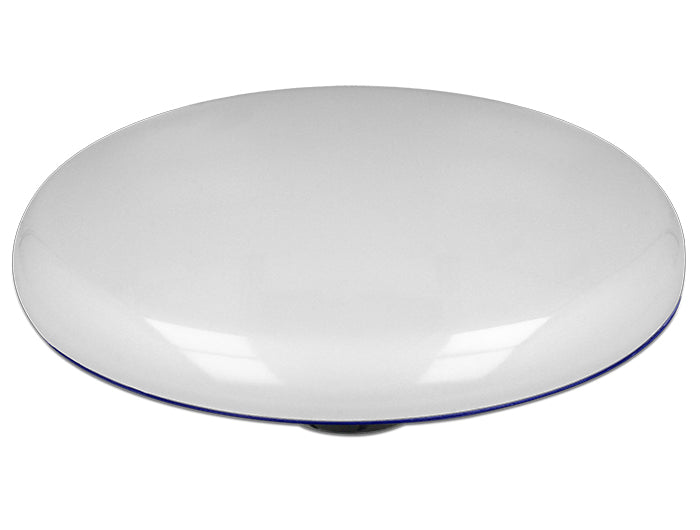

Navilock 60560 Nl-60560M Quad Feed Gnss Beidou Galileo Glonass Gps Tnc Antenna

$555.00 CAD

Shipping calculated at checkout.

Navilock 60560 Nl-60560M Quad Feed Gnss Beidou Galileo Glonass Gps Tnc Antenna is backordered and will ship as soon as it is back in stock.

As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.

Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.

Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin: China

• Connector: 1 x TNC jack
• GNSS:
Frequency range:
BEIDOU: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz
GALILEO: E1, 1.5754200 GHz / E5b, 1.20714 GHz / E6, 1.27875 GHz
GLONASS: G1, 1.6025625 - 1.6155000 GHz / G2, 1.2429375 - 1.2516875 GHz
GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz

Gain: 5 dBic

PZC Phase Center Variation: +/- 2 mm

Axial Ratio: < 3 dB

Beam width: 360°

VSWR: 1.5

Impedance: 50 Ohm
Polarisation: RHCP
Antenna type: quad feed patch

• LNA:

Frequency range:
BEIDOU: B1, 1.561098 GHz / B2, 1.20714 GHz / B3, 1.26852 GHz
GALILEO: E1, 1.5754200 GHz / E5b, 1.20714 GHz / E6, 1.27875 GHz
GLONASS: G1, 1.6025625 - 1.6155000 GHz / G2, 1.2429375 - 1.2516875 GHz
GPS: L1, 1.5754200 GHz / L2, 1.2276 GHz

Operating voltage: 3.0 - 5.5V

Gain: 40 dB

Pass band fluctuation: +/- 1 dB

Noise Figure: < 1.5 dB

Current consumption: 45 mA

VSWR: 2
• Impedance: 50 Ohm

• Mounting type: Tripod mount
• Thread type: UNC 11, 5/8 in

• Housing colour: blue / white

• Housing material: ABS

• Protection category: IP67 exclude air vent in screw hole

• Suitable for outdoor: yes

• Operating temperature: -40 °C ~ 80 °C

• Diameter: 146.5 mm

• Height: 62.5 mm
