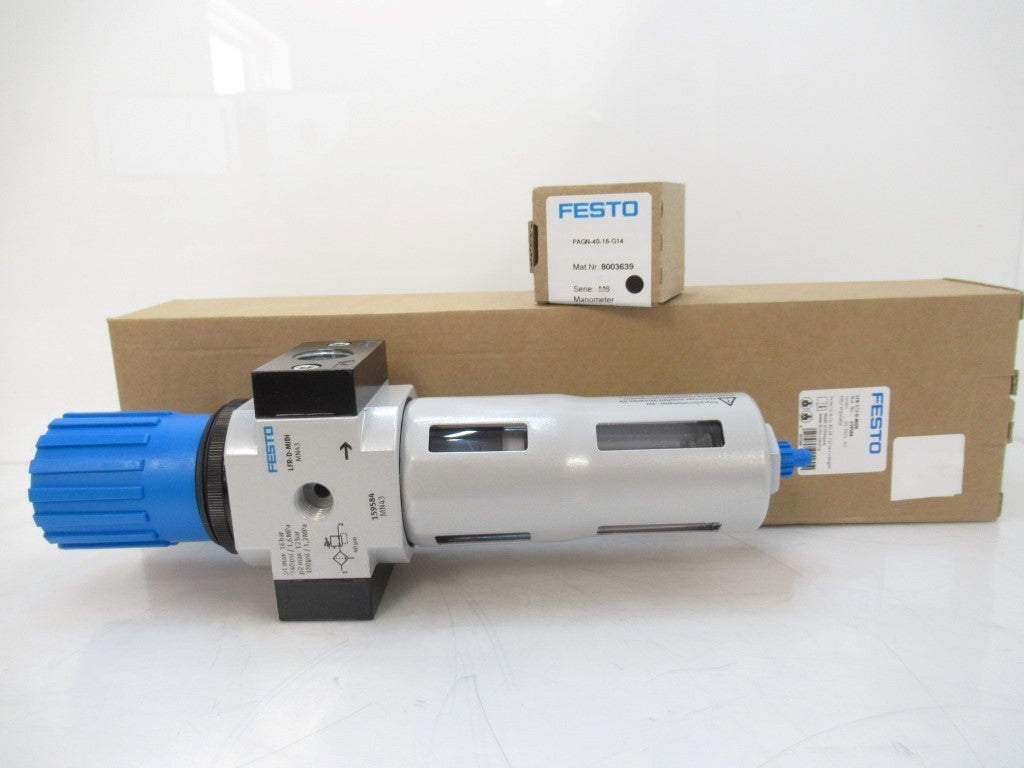

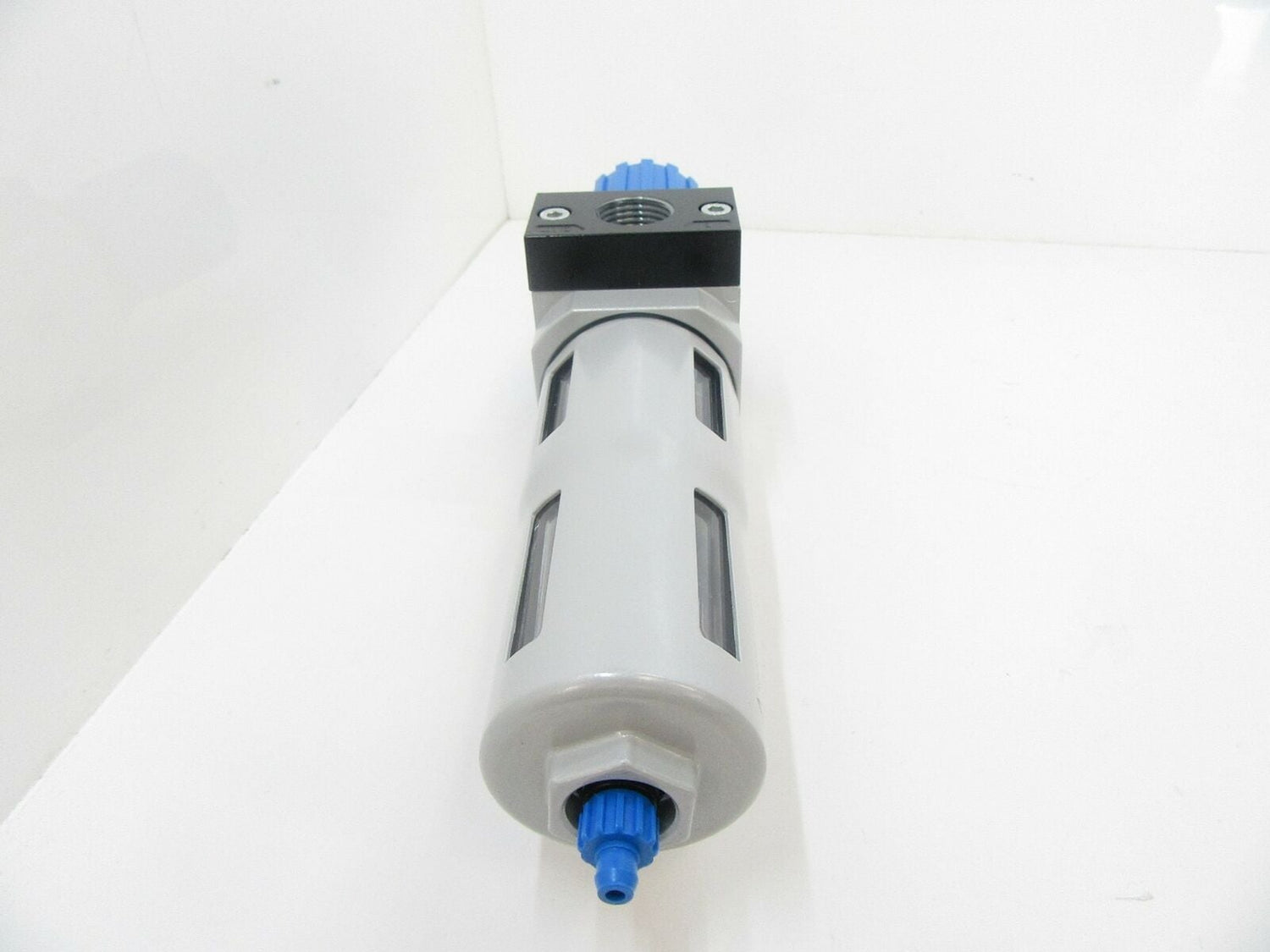

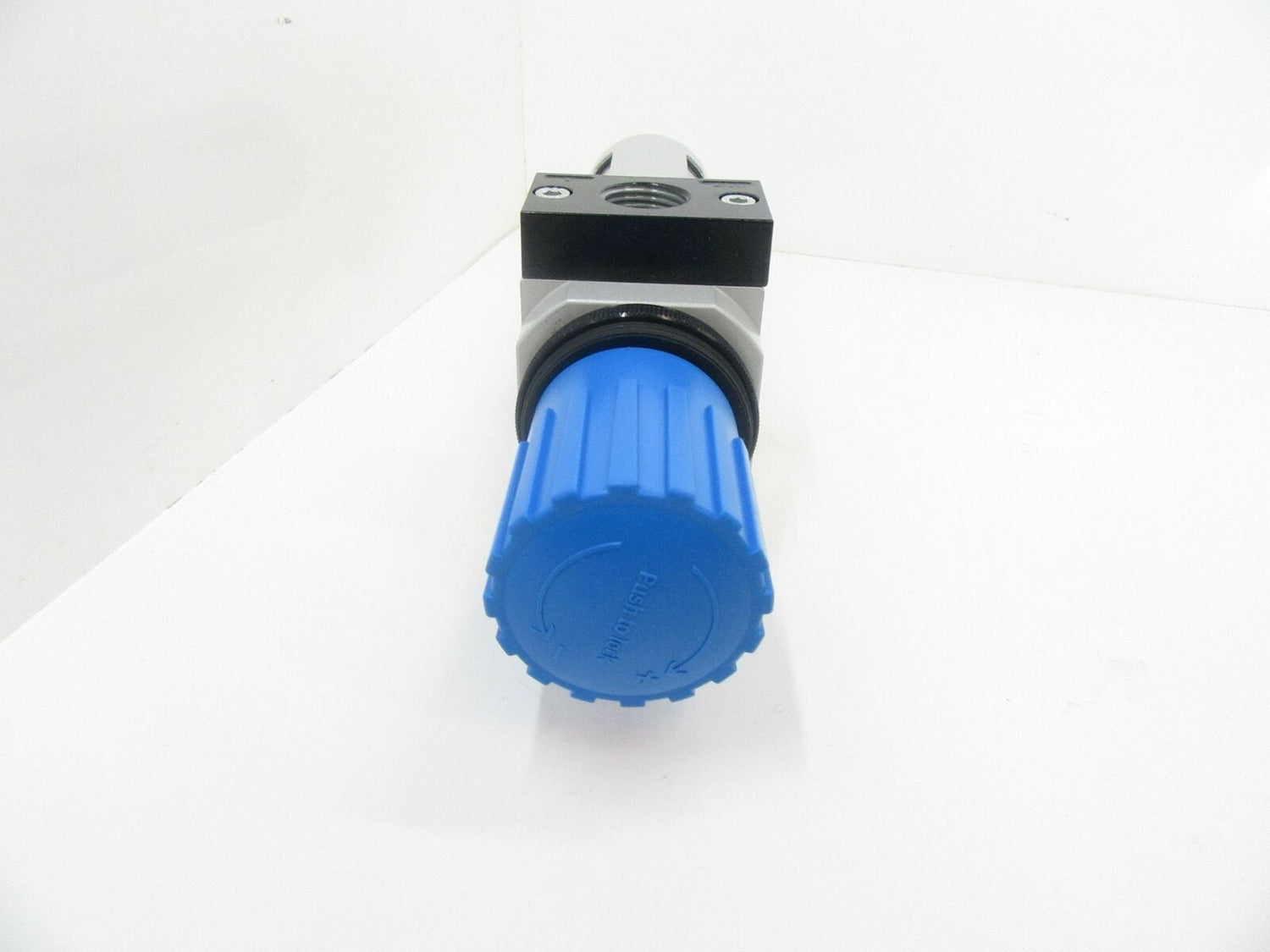

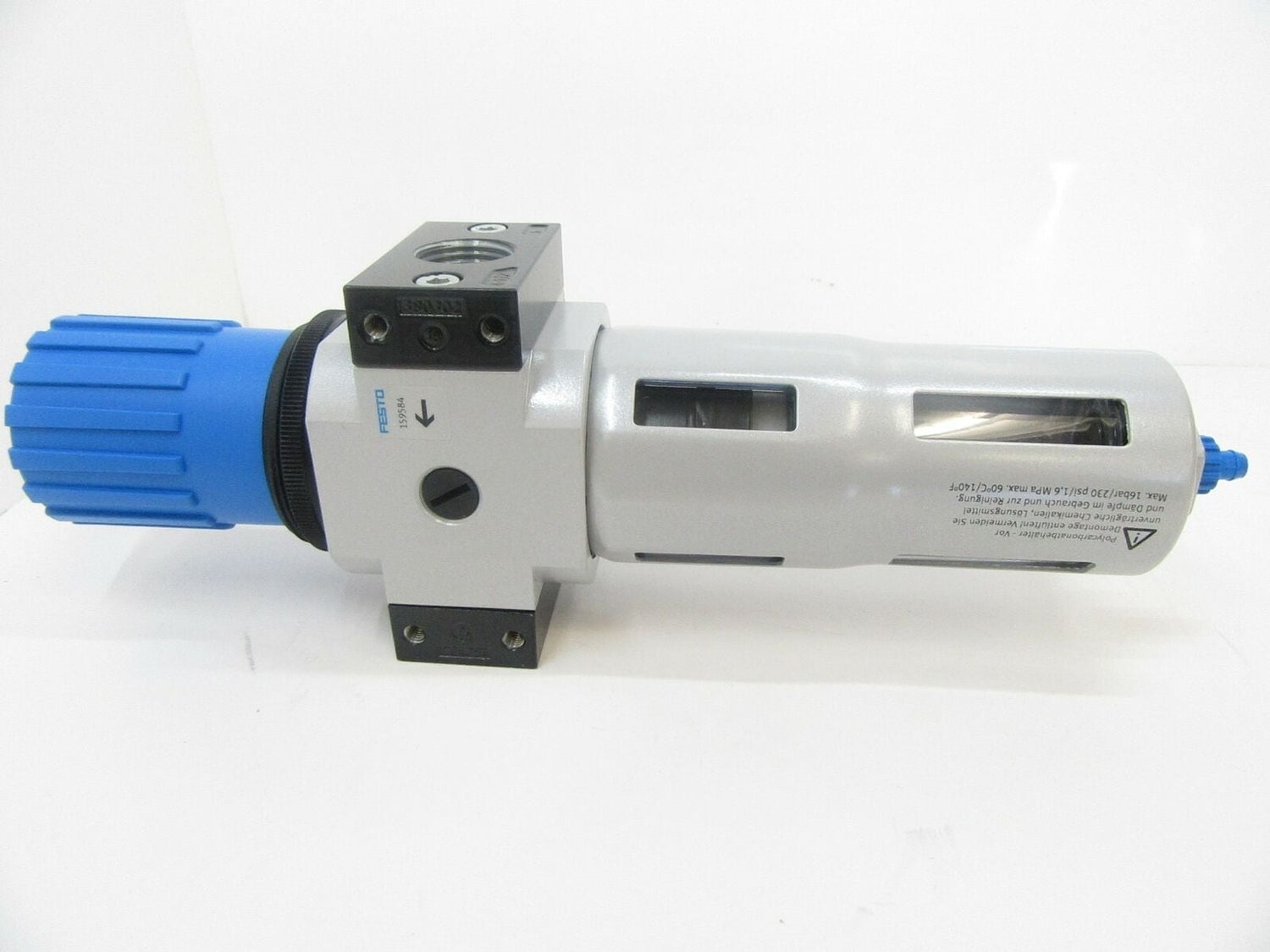

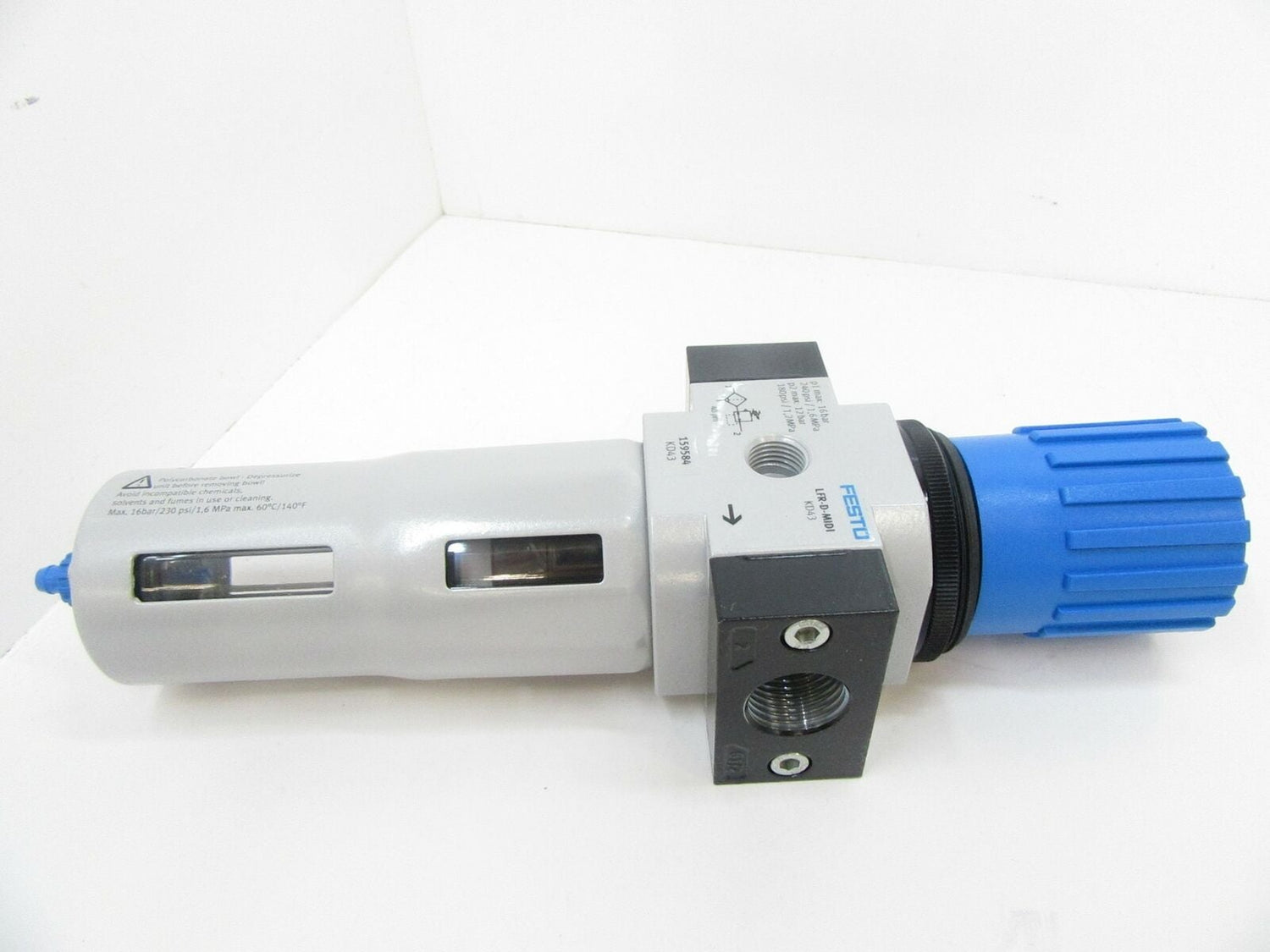

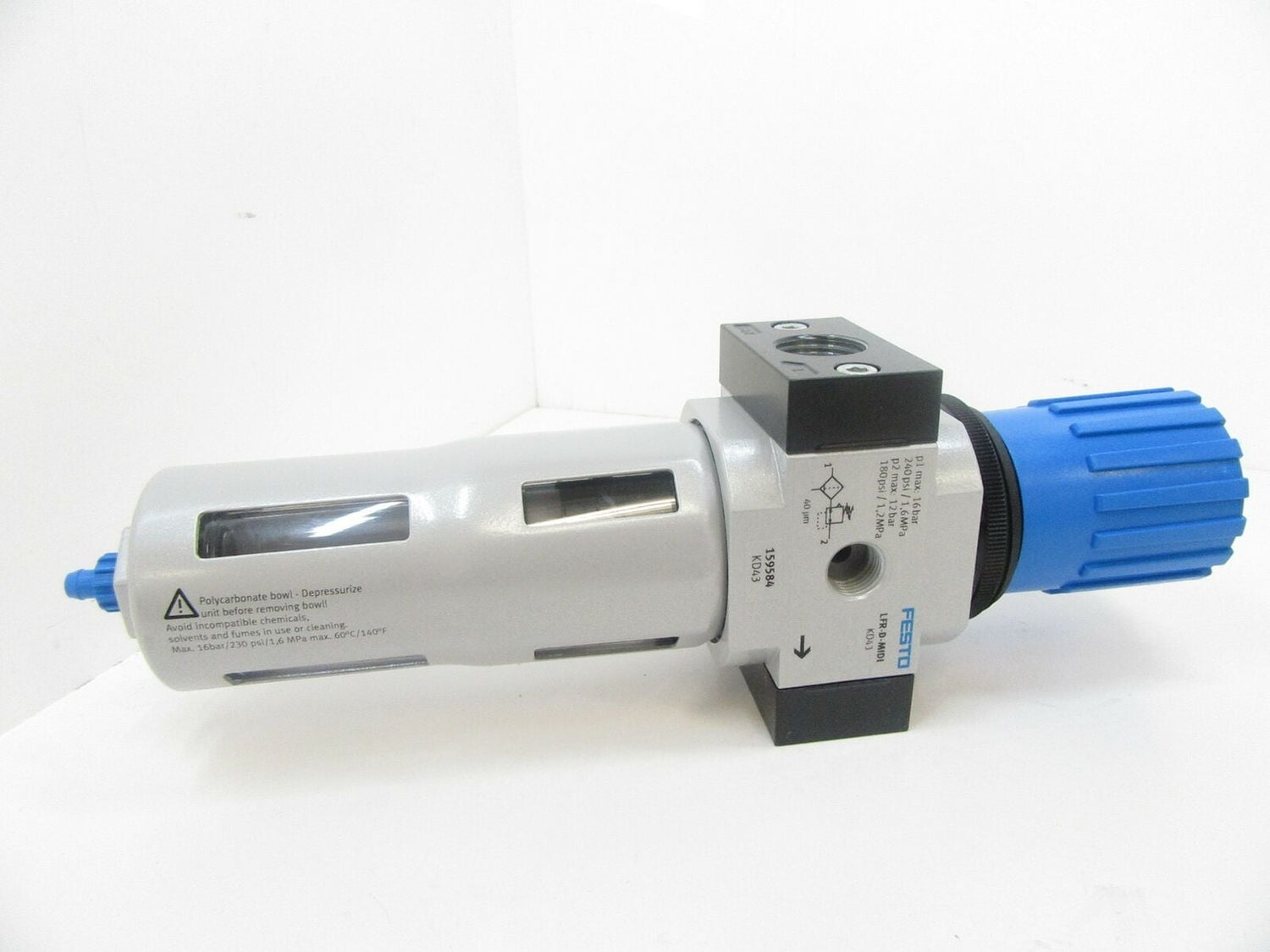

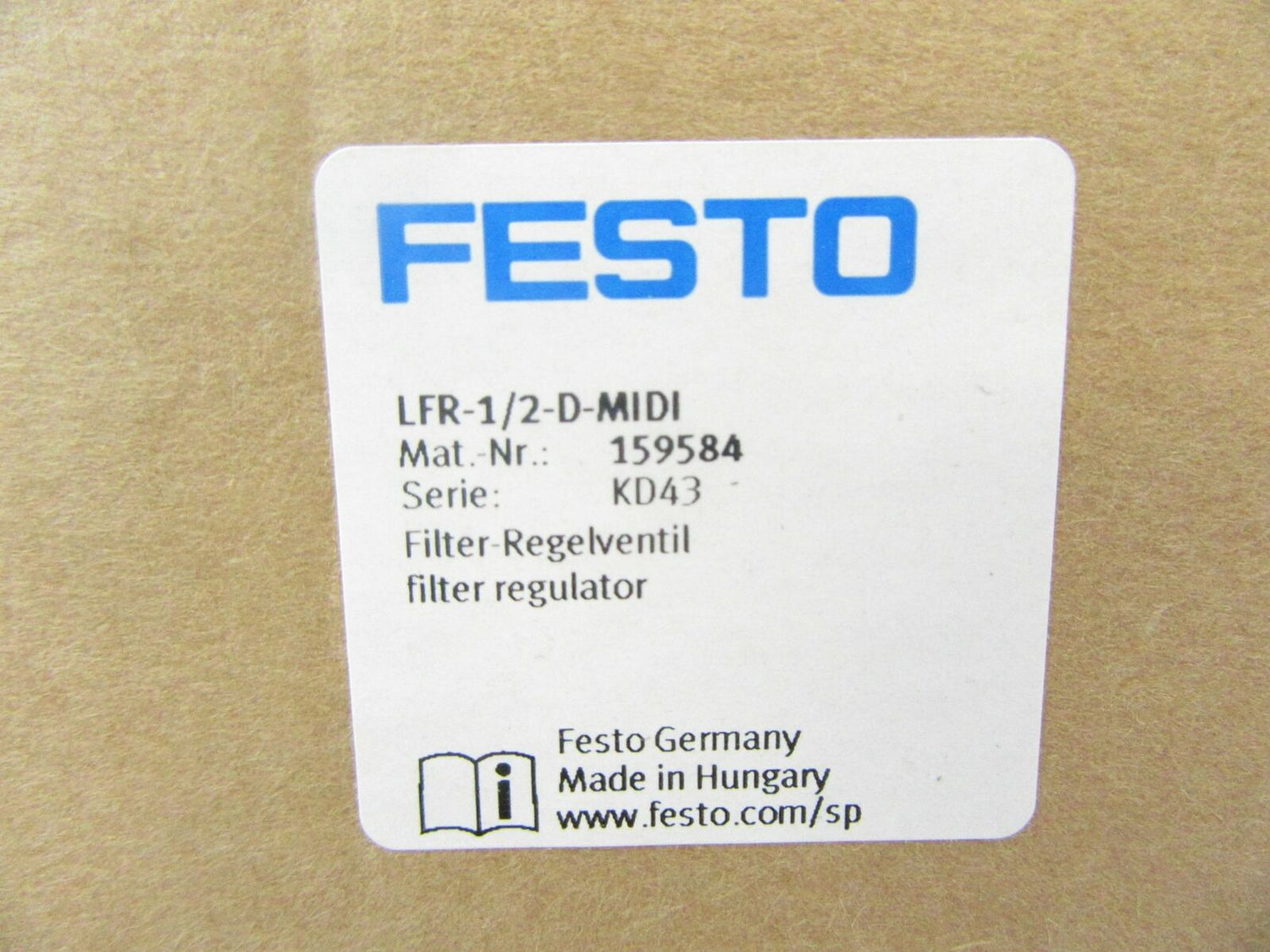

159584 LFR-1/2-D-MIDI Festo, Filter Regulator D Series With Pressur...
Country Of Origin: Hungary

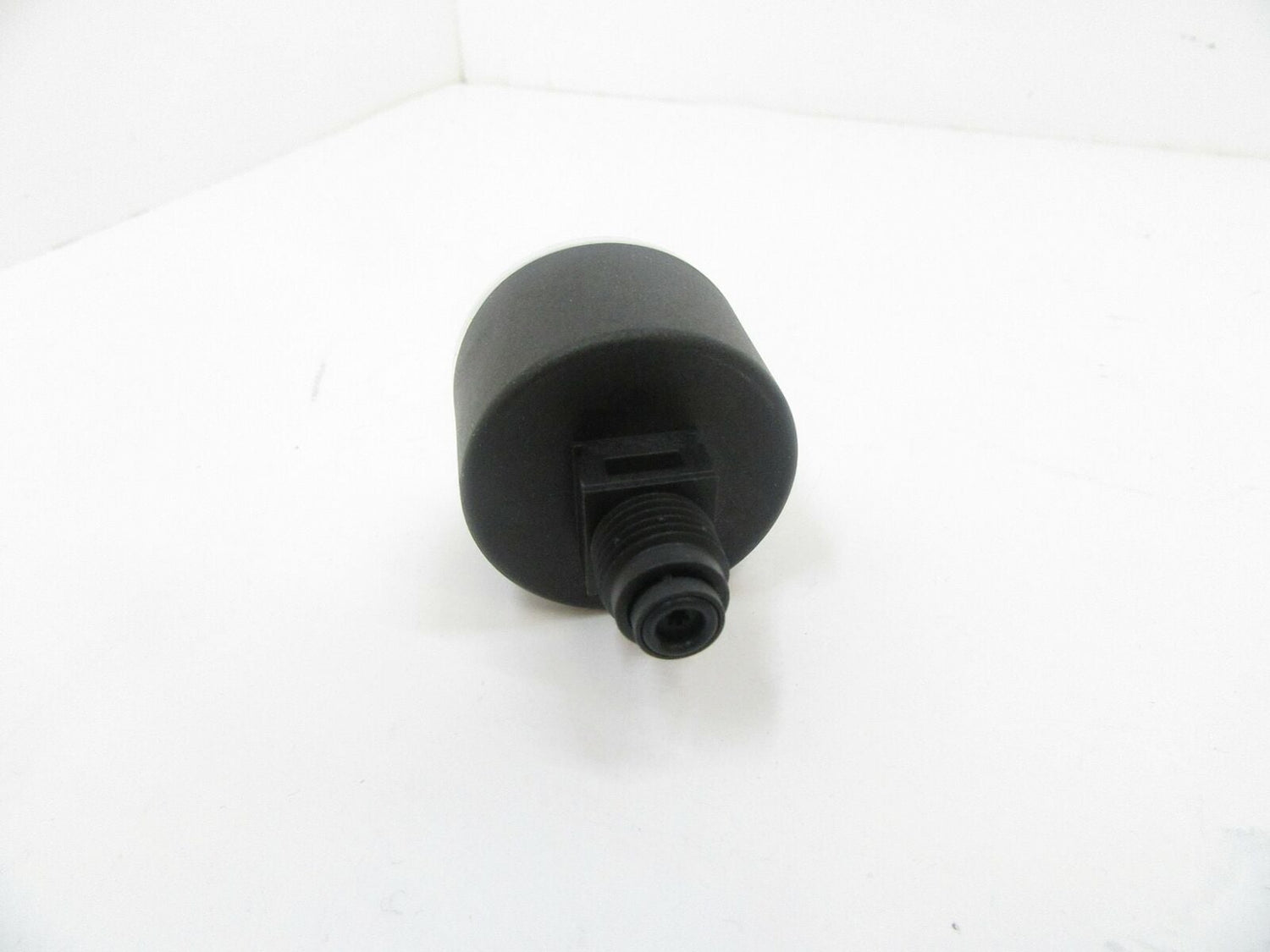

159584 LFR-1/2-D-MIDI LFR12DMIDI PAGN-40-16-G14 PAGN4016G14
Festo
Filter D Series Regulator With Pressure gauge
(New In Box)
Description
- Size: Midi
- Series: D
- Actuator Lock: Rotary Knob With Lock
- Assembly Position: Vertical +/- 5°
- Grade Of Filtration: 40 mm
- Condensate Drain: Manual Rotary
- Design Structure: Filter Regulator With Pressure Gauge
- Max. Condensate Volume: 43 CM3
- Bowl Guard: Metal Bowl Guard

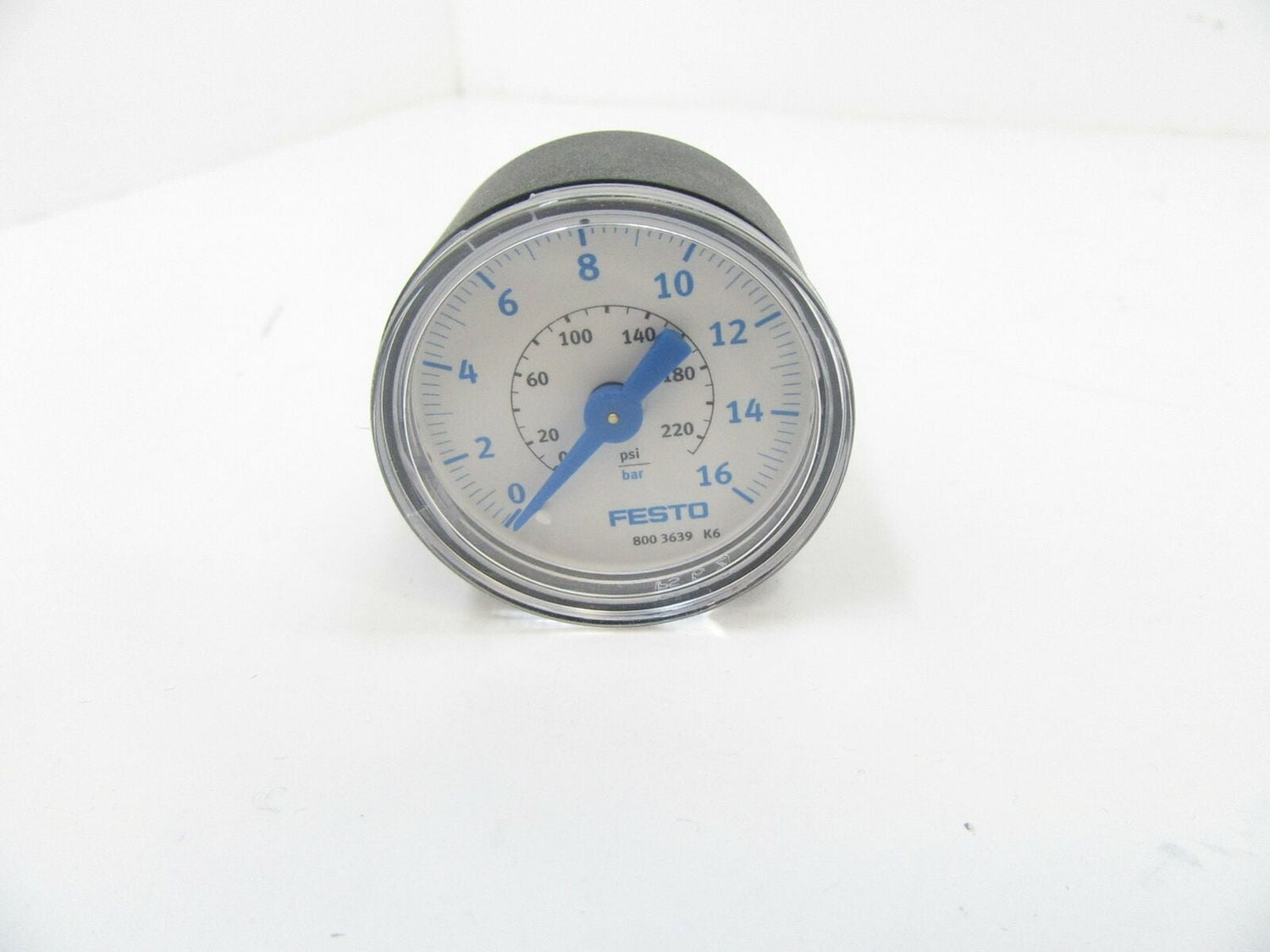

- Pressure Gauge: With Pressure Gauge
- Operating Pressure: 1 ... 16 bar
- Pressure Regulation Range: 0.5 ... 12 bar
- Max. Pressure Hysteresis: 0.2 bar
- Standard Nominal Flow Rate: 3,400 L/min
- Maritime Classification: See Certificate
- Operating Medium: Compressed Air To Iso 8573-1:2010 [-:9:-] Inert Gases
- Note On Operating And Pilot Medium: Lubricated Operation Possible (Subsequently Required For Further Operation)
- Corrosion Resistance Classification CCR: 2 - Moderate Corrosion Stress
- Storage Temperature: -10 ... 60 °c
- Air Purity Class At Output: Compressed Air In Accordance With ISO8573-1:2010 [7:8:4] Inert Gases
- Medium Temperature: -10 ... 60 °C
- Ambient Temperature: -10 ... 60 °C
- Product Weight: 920 G
- Mounting Type: Line Installation With Accessories Optional
- Pneumatic Connection, Port 1: G1/2
- Pneumatic Connection, Port 2: G1/2
- Materials Note: Conforms To RoHs
- Material Housing: Zinc Die-Casting
- Material Bowl: PC
-
