Igus | SKU: MOV-0696-E | Barcode: DOES NOT APPLY

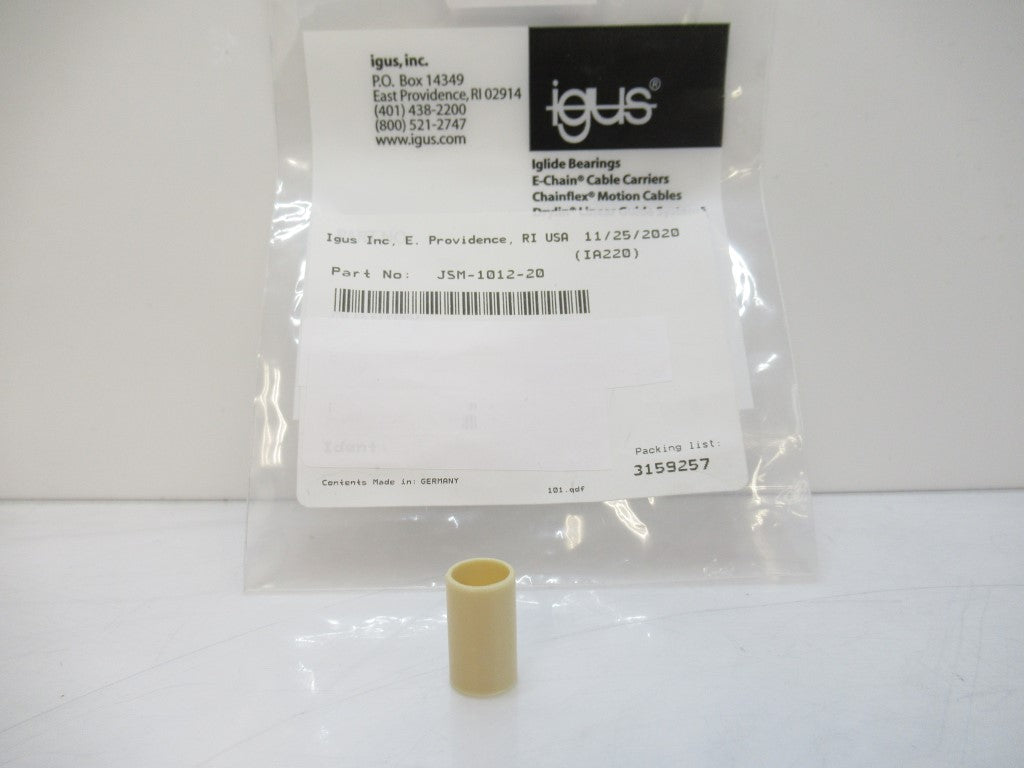

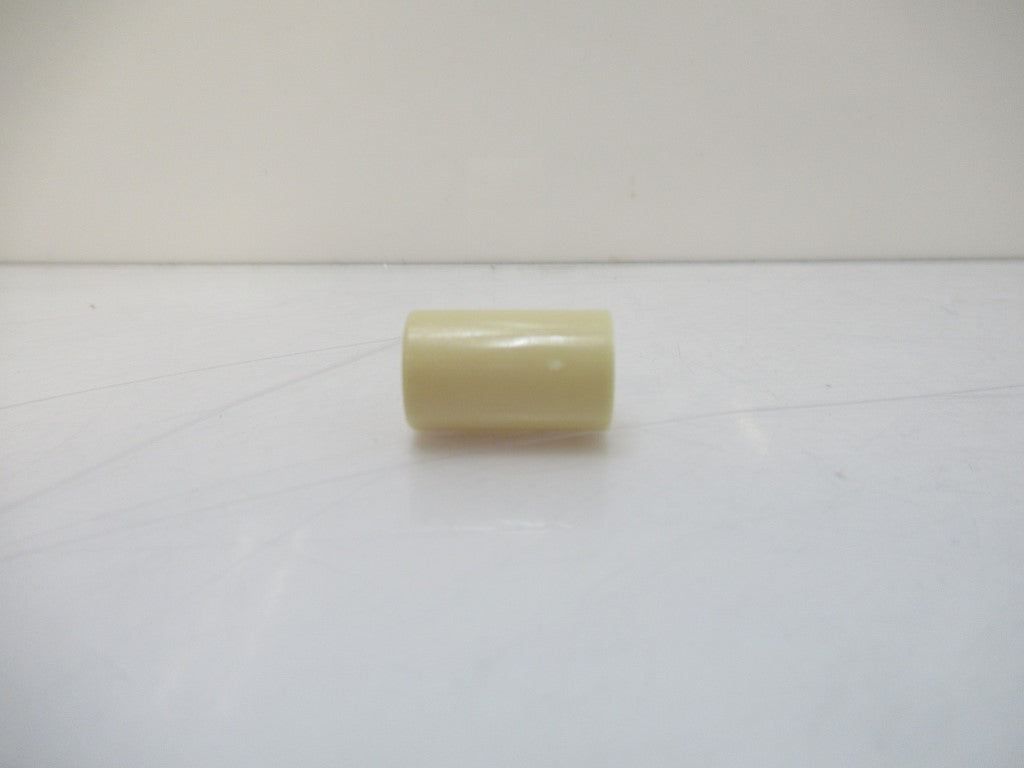

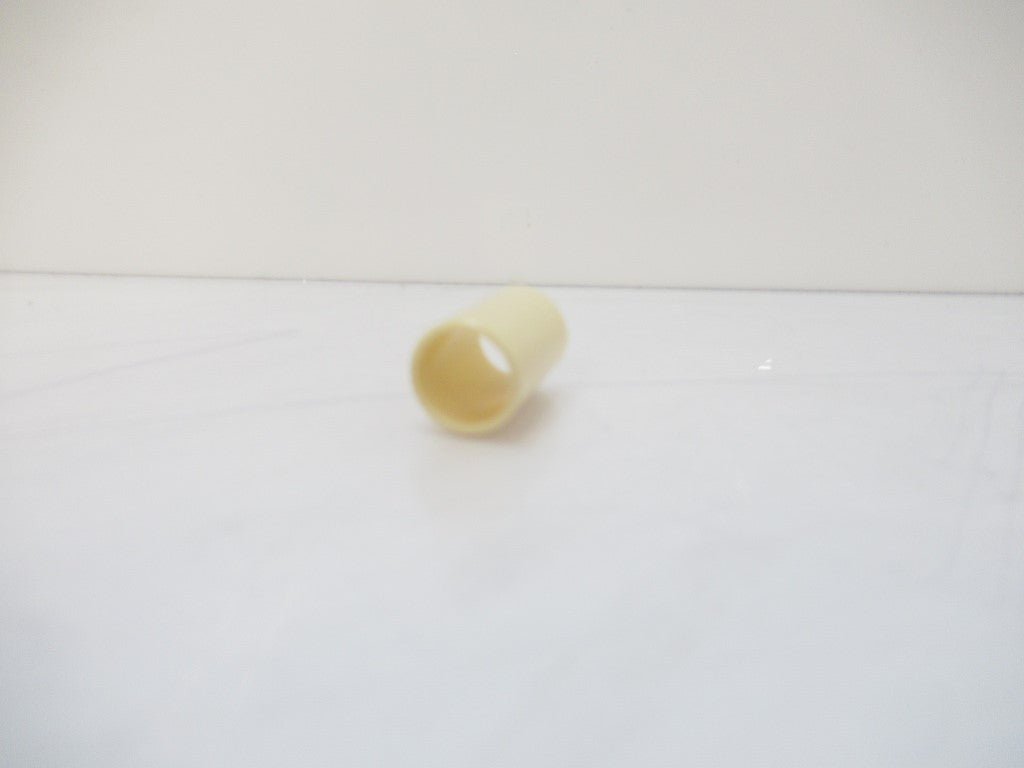

Igus JSM-1012-20 Iglide J, Sleeve Bearing, Sold By Unit

$3.00 CAD

Shipping calculated at checkout.

As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 30% tariff.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Items made in China and imported in the United States will be hit with a 30% fee upon arrival.

Items made in Canada and imported in the United States will be hit with a 25% fee upon arrival.

Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin: Germany

JSM-1012-20 JSM101220

Igus Iglide J, Sleeve Bearing, mm

Sold By Unit New

The versatile endurance runner, highly resistant to wear on (nearly) all shafts with very low coefficients of friction
Low wear against different shaft materials
Low coefficients of friction in dry operation
Vibration-dampening

Dimensions

Ø d1: 10.0 mm
Outer diameter d2: 12.0 mm
Bearing length b1: 20.00 mm
Length of bevel (f):0.5 mm

Production and installation tolerances

b1-Tolerance: h13
Housing bore tolerance: 0 +0.018 mm, H7
Tolerance shaft: 0 -0.036 mm. h9
d1 after press-fit (max.): 10.083 mm
d1 after press-fit (min.): 10.025 mm
Housing bore (max.): 12.018 mm
Housing bore (min.): 12.000 mm
Shaft size (max.): 10.000 mm
Shaft size (min.): 9.964 mm
