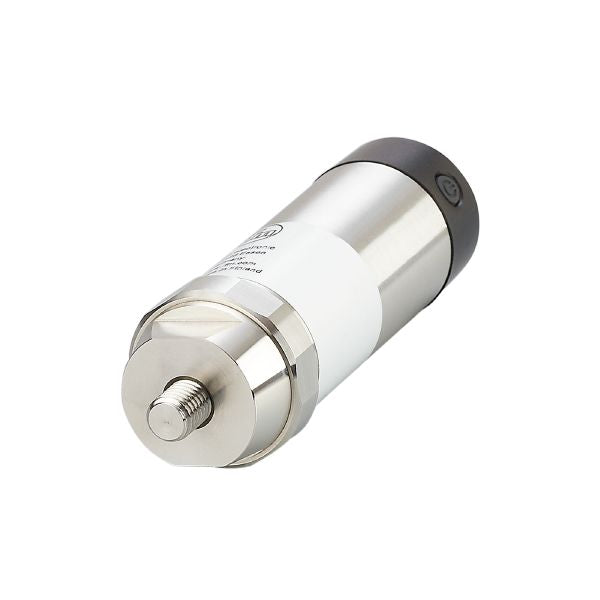

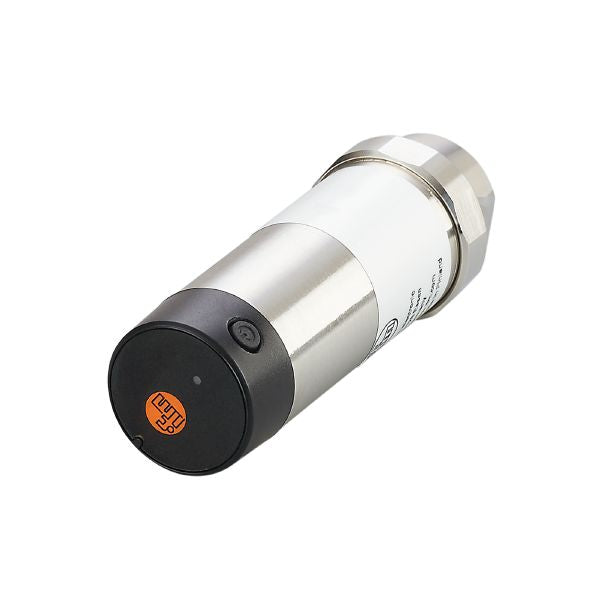

Ifm VWV001 Wireless Vibration Sensor
Country Of Origin:
| Measuring range of vibration [g] | -16...16 |
|---|---|
| Measuring range of vibration [mm/s] | 0...25 |
| Frequency range [Hz] | 10...1000 |
| Application | Vibration sensor to ISO 10816 | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Brazil | |
| Note on radio approval |
|
| Operating voltage [V] | 3.6 DC; (lithium thionyl chloride battery; battery life: > 4 years battery cannot be replaced) |
|---|---|
| Protection class | III |
| Type of sensor | Microelectromechanical system (MEMS) |
| Measuring range of vibration [g] | -16...16 |
|---|---|
| Measuring range of vibration [mm/s] | 0...25 |
| Frequency range [Hz] | 10...1000 |
| Number of measurement axes | 1 |
| Measuring range [°C] | -30...80 |
|---|---|
| Resolution [°C] | 0.1 |
| Accuracy | ≤ 10 % |
|---|---|
| Linearity deviation | ≤ 10 % |
| Parameter setting options | MQTT |
|---|
| Frequency band | 2,4 GHz ISM |
|---|---|
| Range | < 25 m |
| Safety standard | AES-128 |
| Protocol | proprietary |
| Ambient temperature [°C] | -30...80 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -30...80 | |
| Protection | IP 68 |
| EMC |
|
|---|
| Weight [g] | 177.1 |
|---|---|
| Type of mounting | set screw; (M8) |
| Material | housing: stainless steel (1.4404 / 316L); polyethylene |
| Tightening torque [Nm] | 8 |
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
