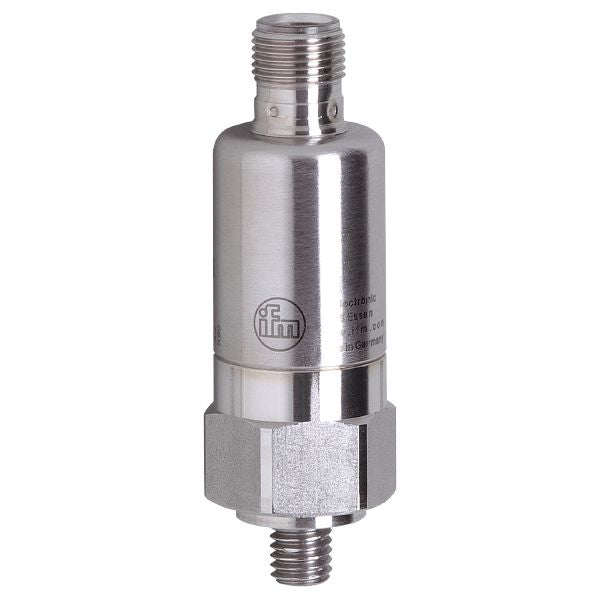

Ifm VTV12A Vibration Transmitter
Country Of Origin: Germany
| Measuring range of vibration [mm/s] | 0...25; (RMS) |
|---|---|
| Frequency range [Hz] | 10...1000 |
| Application | Vibration transmitter to ISO 10816 |
|---|
| Operating voltage [V] | 9.6...32 DC |
|---|---|
| Protection class | III |
| Type of sensor | Microelectromechanical system (MEMS) |
| Total number of inputs and outputs | 1 |
|---|
| Analog current output [mA] | 4...20 |
|---|---|
| Max. load [Ω] | < (Ub - 9,6 V) x 50; Ub = 24 V: 720 |
| Measuring range of vibration [mm/s] | 0...25; (RMS) |
|---|---|
| Frequency range [Hz] | 10...1000 |
| Number of measurement axes | 1 |
| Measuring error [% of the final value] | < ± 3 |
|---|---|
| Repeatability | < 0,5; (% of the final value) |
| Linearity deviation | 0,25 % |
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 67; (when used outside the hazardous area: IP 69K) |
| ATEX marking |
|
||||
|---|---|---|---|---|---|
|
|
|||||
| EMC |
|
||||
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 868 |
| Weight [g] | 139 |
|---|---|
| Type of mounting | set screw |
| Material | stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | 8 |
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12 |
-
