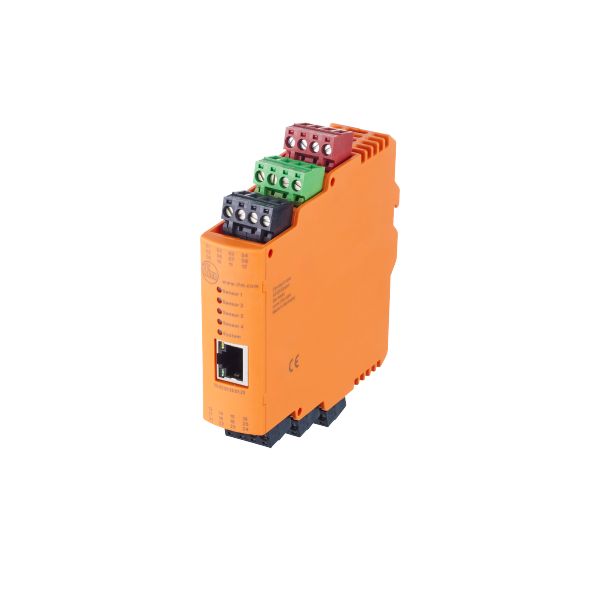

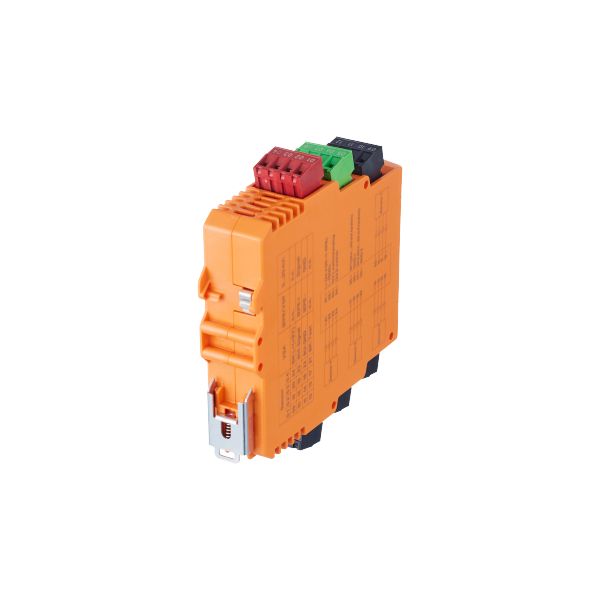

Ifm VSE002 Diagnostic Electronics For Vibration Sensors
Country Of Origin:
| Frequency range [Hz] | 0.1...12000 |
|---|---|
| Communication interface | Ethernet |
| Design | parameter setting via PC software VES004 |
|---|---|
| Application | continuous vibration monitoring |
| Operating voltage tolerance [%] | 20 |
|---|---|
| Operating voltage [V] | 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) |
| Current consumption [mA] | 200; ((24 V DC)) |
| Protection class | III |
| Total number of inputs and outputs | 8; (configurable) |
|---|---|
| Number of inputs and outputs | Number of analog inputs: 2; Number of dynamic inputs: 4; Number of digital outputs: 2; Number of analog outputs: 1 |
| Total number of inputs | 6 |
|---|---|
| Number of analog inputs | 2 |
| Analog input (current) [mA] | 4...20 |
| Resolution of analog input | 12 |
| Number of dynamic inputs | 4 |
| Dynamic input - signal | 0...10 mA / IEPE / 4...20 mA |
| Dynamic input - resolution [bit] | 16 |
| Dynamic input - frequency range [Hz] | 0,1...12000 |
| Dynamic input - sampling rate [kSamples] | 100 |
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal |
| Electrical design | PNP |
| Number of digital outputs | 2; (configurable) |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Number of analog outputs | 1; (configurable) |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Frequency range [Hz] | 0.1...12000 |
|---|
| Communication interface | Ethernet |
|---|---|
| Transmission rate | 10 MBaud; 100 MBaud |
| Protocol | TCP/IP |
| Ambient temperature [°C] | 0...70 |
|---|---|
| Storage temperature [°C] | 0...70 |
| Protection | IP 20 |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| MTTF [years] | 101 | ||||||
| UL approval |
|
| Weight [g] | 323.1 |
|---|---|
| Housing | Plastic housing |
| Type of mounting | rail; (TH35/EN60715) |
| Dimensions [mm] | 100 x 25.4 x 103.4 |
| Material | PA |
| History memory | yes |
|---|---|
| Data memory buffered | yes |
| Data memory type | ring memory; FIFO |
| Real-time clock | yes |
| Memory location | internal |
| Memory interval | min. 1 min |
| Memory size | 881664 data records |
| Accessories (optional) |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Combicon: ; Maximum cable length: 250 m |
|---|
