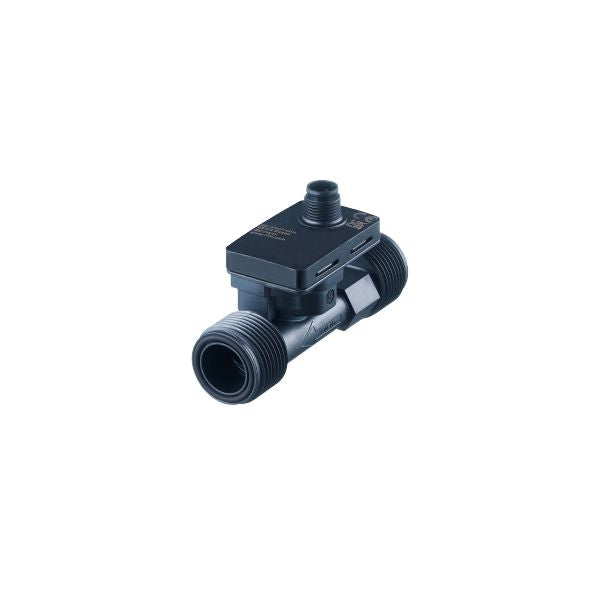

Ifm SV5051 Vortex Flow Meter
Country Of Origin: Switzerland
Description:
-
Product characteristics
- Number of analogue outputs: 1
- Measuring range: 1.8–32 l/min / 0.265–4.716 m/s
- Process connection: G 3/4 external thread DN10
-
Application
- Special feature: Gold-plated contacts
- Measuring element: 1 × Pt 1000 (DIN EN 60751, class B)
- Use: Industrial applications
- Installation: Pipe connection via adapter
- Media: Ultra-pure water, water, glycol solutions, coolants
- Medium temperature: -15…125 °C
- Min. burst pressure: 25 bar / 2.5 MPa (at 125 °C)
- Pressure rating: 16 bar / 1.6 MPa (≤ 90 °C)
-
Electrical data
- Operating voltage: 8–33 V DC
- Current consumption: < 5 mA
- Min. insulation resistance: 100 MΩ (500 V DC)
- Protection class: III
- Power-on delay: < 2 s
- Measuring principle: Vortex
-
Inputs / Outputs
- Total outputs: 1
- Output signal: Analogue
- Analogue output: 4–20 mA
- Max. load: < (Ub - 8 V) / 20 mA (Ub = 24 V: 800 Ω)
-
Measuring / Setting range
- Flow: 1.8–32 l/min / 0.265–4.716 m/s
-
Temperature monitoring
- Internal probe: 1 K/mW
- Measuring range: -15…125 °C
-
Accuracy / Deviations
- Water:
- Q < 50% MEW: < 1% MEW
- Q > 50% MEW: < 2% MW
- Glycol (35%):
- 2 < v < 6 cSt: ±5% MEW
- 6 < v < 15 cSt: ±10% MEW
- Repeatability: 0.2% of final value
- Temperature accuracy: ±0.3 ± 0.005 × T
- Water:
-
Response times
- Flow: 0.34 s (T09)
- Temperature: < 10 s (T05) / < 30 s (T09)
-
Operating conditions
- Ambient temperature: -15…85 °C
- Note: Medium temp > 0 °C → -40…85 °C
- Storage temperature: -40…85 °C
- Protection: IP65
- Cavitation: P(abs) discharge / P(diff) > 5.5 to avoid cavitation
-
