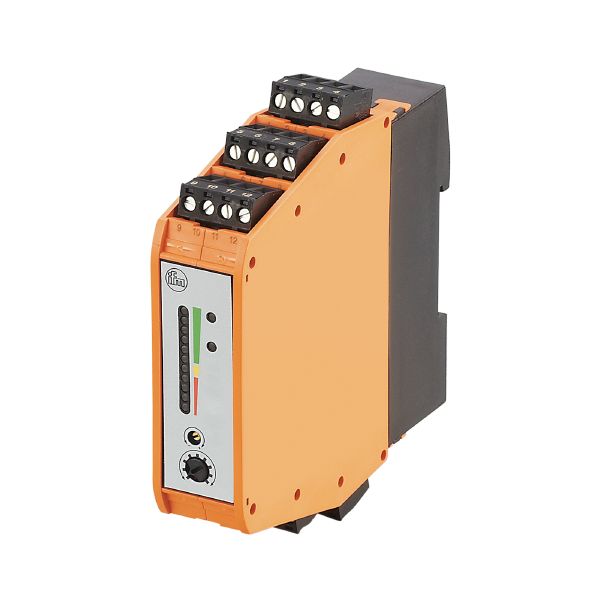

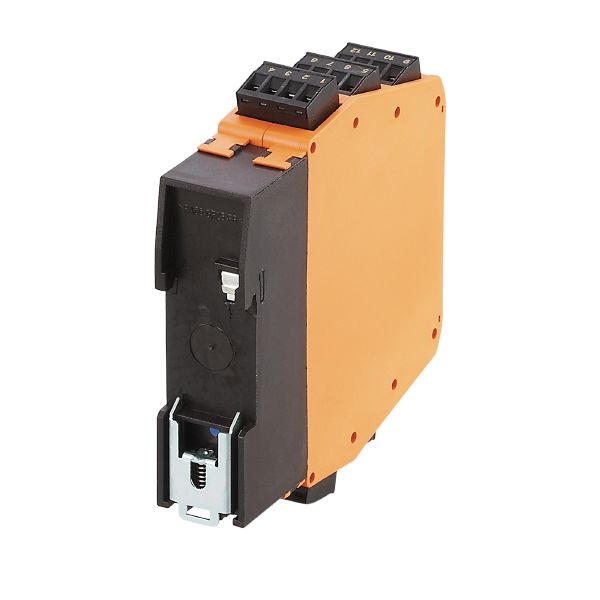

Ifm SN0150 Control Monitor For Flow Sensors
Country Of Origin: Germany
Description:
- Frequency AC: 47...63 Hz
- Operating Voltage Tolerance: -5...10%
- Operating Voltage: 90...240 AC V
- Max. Power Consumption: 4 VA
- Protection Class: II
- Reverse Polarity Protection: No
- Power-On Delay Time: 10...80 s (Adjustable, Fixed-Value Resistors Terminals 22-23)
- Number Of Channels: 1
- Performance In Case Of A Fault: In Case Of Undervoltage All Relays Are De-Energised; The LED "Low Voltage/Wire Break-Relay" Lights
- Electrical Design: Relay
- Contact Rating: 4 A (250 V AC / 30 V DC)
- Switching Function Flow Monitoring: Relay Energised When Flow Is Present And During The Power-On Delay Time
- Switching Function Temperature Monitoring: Relay Energised When Temperature Is Exceeded
- Switching Function Wire Break Monitoring: Relay De-Energised In Case Of Wire Break Or Short Circuit
- Short-Circuit Proof: No
- Overload Protection: No
- Response Time: < 3 s
- Adjustment Of The Switch Point: Potentiometer
- Selection Liquids / Gases: Wire Bridge; On Delivery: Monitoring Of Liquids; For Monitoring Of Gases: Link Terminals 23 / 24
- Switch Point Setting: Potentiometer
- Temperature Range: 0...80°C
- Repeatability Of The Set Switch Point: 4 K
-
