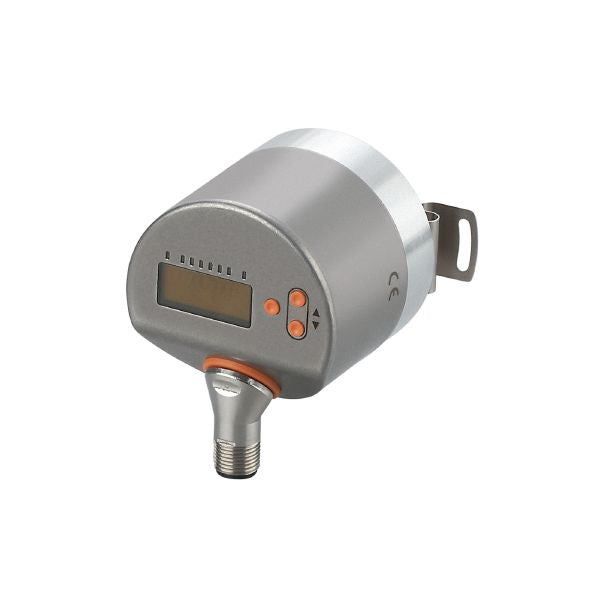

Ifm ROP524 Incremental Encoder With Hollow Shaft And Display
Country Of Origin:
| Resolution | 1...10000; (configurable; Factory setting: 1024) resolution |
|---|---|
| Communication interface | IO-Link |
| Shaft design | hollow shaft open to one side |
| Shaft diameter [mm] | 15.875 |
| Function principle | incremental |
|---|---|
| Detection system | magnetic |
| Application | encoder; Speed monitor; Counter |
| Operating voltage [V] | 4.75...30 DC |
|---|---|
| Current consumption [mA] | < 350 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. revolution electrical [U/min] | 12000 |
| Electrical design | HTL/TTL | |
|---|---|---|
| Switching frequency [kHz] | 1000 | |
| Factory setting |
|
|
| Short-circuit protection | yes | |
| Phase difference A und B [°] | 90 |
| Resolution | 1...10000; (configurable; Factory setting: 1024) resolution |
|---|
| Set point SP |
|
||
|---|---|---|---|
| Reset point rP |
|
| Preset point | 1...9999 |
|---|
| Accuracy [°] | 0.1 |
|---|
| Parameter setting options | encoder; Resolution; Direction of rotation; HTL; TTL; Speed monitor; Resolution |
|---|
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SIO mode | yes |
| Min. process cycle time [ms] | 2.3 |
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 95; (Condensation not permissible) |
| Protection | IP 65; (on the housing: IP 67; on the shaft: IP 65) |
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 218 |
| Weight [g] | 465.5 | |
|---|---|---|
| Dimensions [mm] | Ø 58.5 / L = 69 | |
| Material | flange: aluminum; housing: stainless steel (1.4521 / 444); display window: PEI | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Max. starting torque [Nm] | 2 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | hollow shaft open to one side | |
| Shaft diameter [mm] | 15.875 | |
| Shaft material |
|
|
| Installation depth/shaft [mm] | 27 | |
| Max. axial shaft misalignment [mm] | 0,5 | |
| Fixing flange | Ø 58.5 mm |
| Display |
|
|---|
| Items supplied |
|
|---|
| IO-Link | Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m; (IO-Link: max. 20 m) |
|---|
|
Pulse diagram
|
|
|---|
