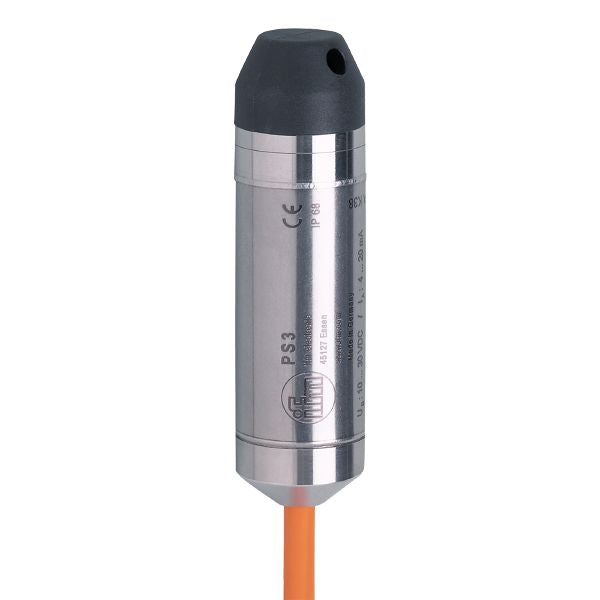

Ifm PS3607 Hydrostatic Submersible Pressure Transmitter
Ifm PS3607 Hydrostatic Submersible Pressure Transmitter is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm PS3607 Hydrostatic Submersible Pressure Transmitter
Country Of Origin:
| Number of inputs and outputs | Number of analog outputs: 1 | |||||
|---|---|---|---|---|---|---|
| Measuring range |
|
| Design | with capillary tube for pressure compensation | |||
|---|---|---|---|---|
| Application | for industrial applications | |||
| Media | Liquids | |||
| Medium temperature [°C] | -10...50 | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure |
| Operating voltage [V] | 10...30 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | hydrostatic |
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | analog signal |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 700; (Ub = 24 V; (Ub - 10 V) / 20 mA) |
| Short-circuit protection | yes |
| Measuring range |
|
|---|
| Repeatability [% of the span] | < 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation [% of the span] | < 0,5 (BFSL) / 1; (incl. linearity, zero and span error (limit value setting)) |
| Linearity deviation [% of the span] | < 0,2 (BFSL) |
| Long-term stability [% of the span] | < 0,2; (per year) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,2; (0...50 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,2; (0...50 °C) |
| Ambient temperature [°C] | -10...50 |
|---|---|
| Storage temperature [°C] | -30...80 |
| Protection | IP 68 |
| MTTF [years] | 403 |
|---|---|
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight [g] | 2351.65 |
|---|---|
| Material | stainless steel (1.4571/316Ti ); PA |
| Pack quantity | 1 pcs. |
|---|
| Connection | Cable: 30 m, PUR, Ø 7.5 mm; Core insulation: |
|---|
