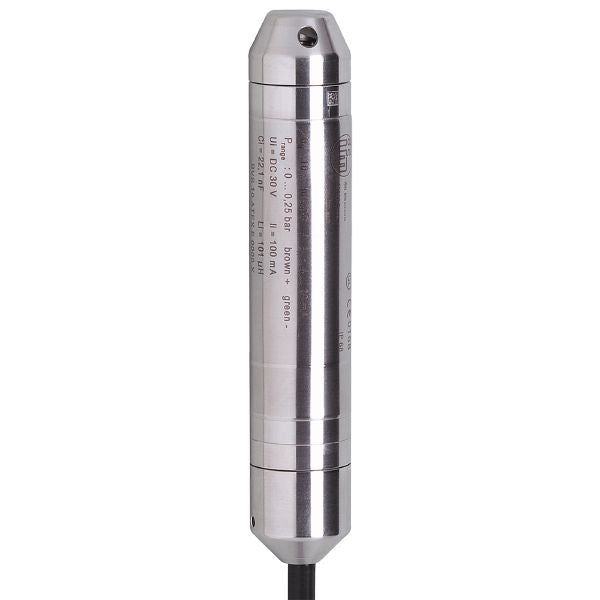

Ifm PS308A Hydrostatic Submersible Pressure Transmitter
Country Of Origin:
| Number of inputs and outputs | Number of analog outputs: 1 | |||||
|---|---|---|---|---|---|---|
| Measuring range |
|
| Application | for industrial applications | |||
|---|---|---|---|---|
| Media | Liquids | |||
| Medium temperature [°C] | -10...60; (T6: -10...60 °C; T5: -10...80 °C; T4: -10...85 °C; 1 D, 1/2 D, 2 D (750 mW): -10...40 °C; (650 mW): -10...70 °C; (550 mW): -10...85 °C) | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure |
| Switching amplifiers | Connection to intrinsically safe supply isolators (Ex ia) |
|---|---|
| Operating voltage [V] | 10...30 DC |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | hydrostatic |
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | analog signal |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 700; (Ub = 24 V; (Ub - 10 V) / 20 mA) |
| Short-circuit protection | yes |
| Measuring range |
|
|---|
| Repeatability [% of the span] | < 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation [% of the span] | < 0,25 (BFSL) / 0,5; (incl. linearity, zero and span error (limit value setting); BFSL = Best Fit Straight Line) |
| Linearity deviation [% of the span] | < 0,2 (BFSL) |
| Long-term stability [% of the span] | < 0,2; (per year) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,2; (0...50 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,2; (0...50 °C) |
| Ambient temperature [°C] | -10...60 | ||||||
|---|---|---|---|---|---|---|---|
| Note on ambient temperature |
|
||||||
| Storage temperature [°C] | -10...60 | ||||||
| Protection | IP 68 |
| Approval | BVS 10 ATEX E 132 X; IECEx BVS 10.0085 X |
|---|---|
| ATEX marking |
|
|
|
|
|
|
|
|
|
|
|
|
|
| MTTF [years] | 969 |
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight [g] | 660.2 |
|---|---|
| Material | stainless steel (1.4571/316Ti ) |
| Pack quantity | 1 pcs. |
|---|
| Connection | Cable: 5 m, FEP, Ø 7.5 mm |
|---|
