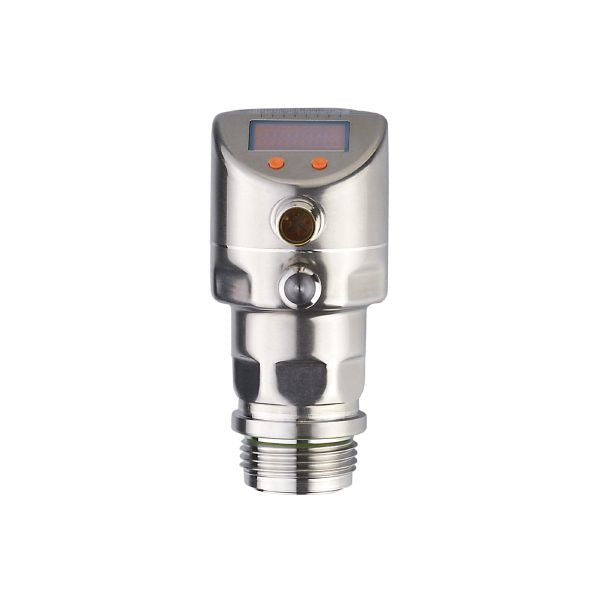

Ifm PI2793 Flush Pressure Sensor With Display
Country Of Origin:
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | |||
|---|---|---|---|---|
| Measuring range |
|
|||
| Process connection | threaded connection G 1 external thread Aseptoflex Vario |
| System | gold-plated contacts | |||
|---|---|---|---|---|
| Application | flush mountable for the food and beverage industry | |||
| Media | viscous media and liquids with suspended particles; liquids and gases | |||
| Medium temperature [°C] | -25...125; (145 max. 1h) | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Vacuum resistance [mbar] | -1000 | |||
| Type of pressure | relative pressure; vacuum | |||
| No dead space | yes | |||
| MAWP (for applications according to CRN) [bar] | 60 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Integrated watchdog | yes |
| Operating voltage [V] | 20...32 DC |
|---|---|
| Current consumption [mA] | 3.6...21 |
| Power-on delay time [s] | 1 |
| Operating voltage [V] | 18...32 DC |
|---|---|
| Current consumption [mA] | < 45 |
| Power-on delay time [s] | 0.5 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20, invertible; (scalable) |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Max. load [Ω] | 300 |
|---|
| Max. voltage drop switching output DC [V] | 2 |
|---|---|
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 125 |
| Max. load [Ω] | (Ub - 10 V) / 20 mA |
| Measuring range |
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Set point SP |
|
|||||||||
| Reset point rP |
|
|||||||||
| Analog start point |
|
|||||||||
| Analog end point |
|
|||||||||
| In steps of |
|
|||||||||
| Factory setting |
|
| Switch point accuracy [% of the span] | < ± 0,2; (Turn down 1:1) |
|---|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation [% of the span] | < ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) |
| Linearity deviation [% of the span] | < ± 0,15; (Turn down 1:1) |
| Hysteresis deviation [% of the span] | < ± 0,15; (Turn down 1:1) |
| Long-term stability [% of the span] | < ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,05; (0...70 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,15; (0...70 °C) |
| Damping process value dAP [s] | 0...30 |
|---|---|
