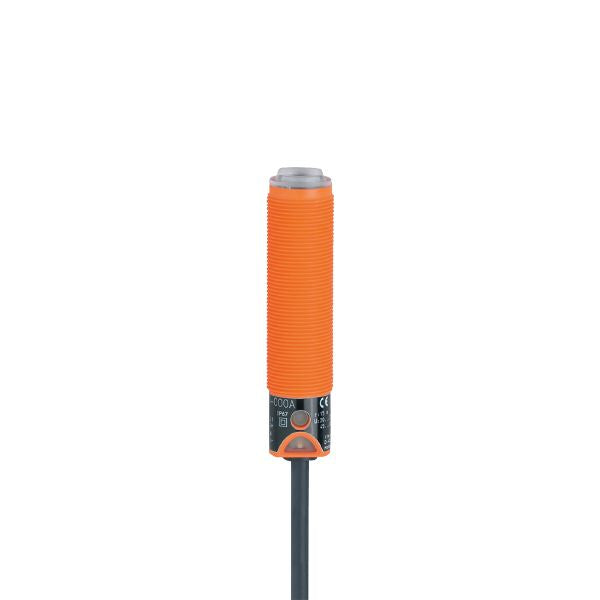

Ifm OG0038 Through-Beam Sensor Receiver
Country Of Origin:
| Type of light | Infrared light |
|---|---|
| Housing | Threaded type |
| Function principle | Through-beam sensor |
|---|
| Frequency AC [Hz] | 47...63 |
|---|---|
| Operating voltage [V] | 20...250 AC/DC |
| Protection class | II |
| Reverse polarity protection | no |
| Type of light | Infrared light |
| Wave length [nm] | 880 |
| Output function | dark-on mode |
|---|---|
| Max. voltage drop switching output DC [V] | 8 |
| Max. voltage drop switching output AC [V] | 8 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 1.7 |
| Permanent current rating of switching output AC [mA] | 90; (180 (...40 °C)) |
| Permanent current rating of switching output DC [mA] | 90; (180 (...40 °C)) |
| Short-time current rating of switching output [mA] | 600; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 25 |
| Short-circuit proof | no |
| Overload protection | no |
| Transmitter / receiver | receiver |
|---|---|
| Range [m] | < 15 |
| Range adjustable | yes |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 334 |
| Weight [g] | 122.7 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M18 x 1 / L = 78.5 | |
| Thread designation | M18 x 1 | |
| Material | PBT | |
| Lens material |
|
| Display |
|
|---|
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
| Items supplied |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Cable: 2 m, PVC; 2 x 0.5 mm² |
|---|
|
excess gain graph
|
|
|---|
