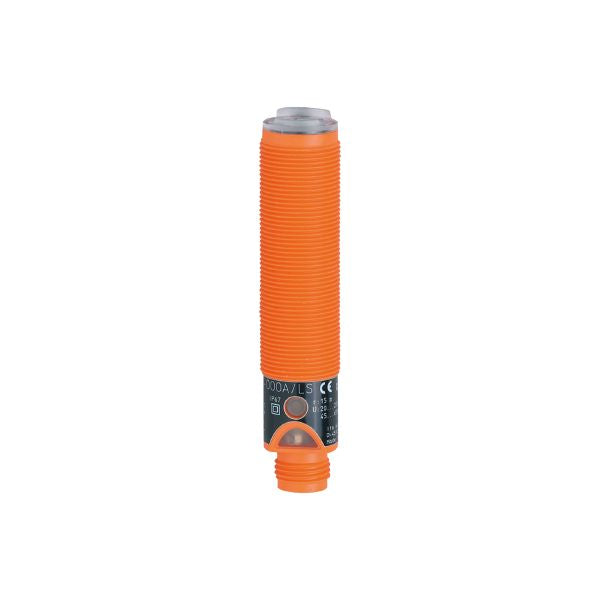

Ifm OG0030 Through-Beam Sensor Transmitter
Country Of Origin:
| Type of light | Infrared light |
|---|---|
| Housing | Threaded type |
| Function principle | Through-beam sensor |
|---|
| Frequency AC [Hz] | 47...63 |
|---|---|
| Operating voltage [V] | 20...250 AC/DC |
| Current consumption [mA] | < 5 |
| Protection class | II |
| Type of light | Infrared light |
| Wave length [nm] | 880 |
| Short-circuit protection | no |
|---|---|
| Overload protection | no |
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 15 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 2000 |
| Light spot dimensions refer to | at maximum range |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 1662 |
| Weight [g] | 38 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M18 x 1 / L = 76 | |
| Thread designation | M18 x 1 | |
| Material | PBT | |
| Lens material |
|
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x 1/2"; coding: C |
|---|
