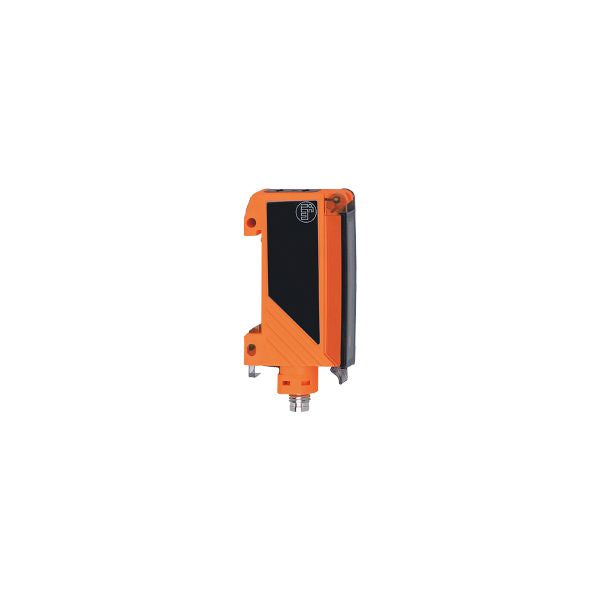

Ifm OBF507 Fiber-Optic Amplifier
Ifm OBF507 Fiber-Optic Amplifier is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm OBF507 Fiber-Optic Amplifier
Country Of Origin:
| Type of light | red light |
|---|---|
| Housing | rectangular |
| Design | Fiber optic amplifiers for glass fibers, Type OBF, for fibers with metal sheath, FE/FT-50 |
|---|
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Time function [s] | 0.001...0.09 |
| Range [m] | 0...1; (Through-beam sensor) |
|---|---|
| Range [mm] | 0...150; (Diffuse reflection sensor) |
| Range adjustable | yes |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 837 |
| Weight [g] | 47.8 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 36 x 15 x 60 |
| Material | PPE modified |
| Lens alignment | Side sensing |
| Display |
|
|---|
| Remarks |
|
||||
|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x M8; coding: A |
