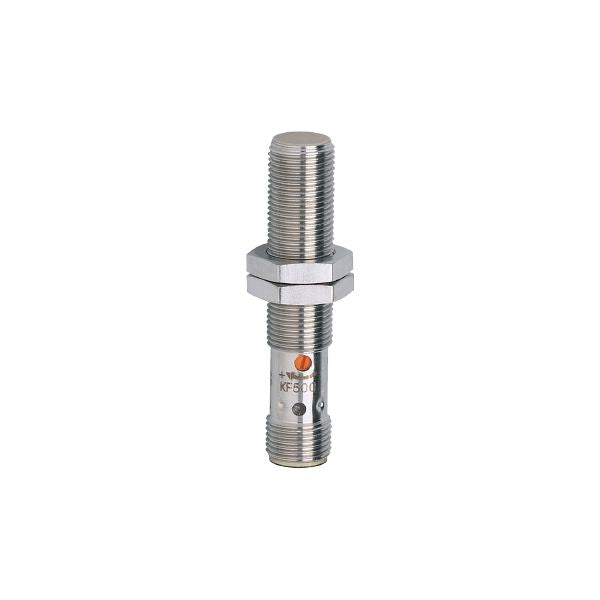

Ifm KF5001 Capacitive Sensor
Country Of Origin:
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 1...6 |
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 / L = 60 |
| Media | dry bulk material; liquids |
|---|
| Operating voltage [V] | 10...36 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 12 |
| Protection class | III |
| Reverse polarity protection | yes |
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 50 |
| Short-circuit proof | yes |
| Overload protection | yes |
| Sensing range [mm] | 1...6 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 4 |
| Real sensing range Sr [mm] | 4 ± 10 % |
| Correction factor | glass: 0.6 / water: 1 / ceramics: 0.5 / PVC: 0.4 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch-point drift [% of Sr] | -20...20 |
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 65 |
| Increased immunity | yes |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 636 |
| Weight [g] | 39.3 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 60 |
| Thread designation | M12 x 1 |
| Material | stainless steel (1.4404 / 316L); PEEK |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
