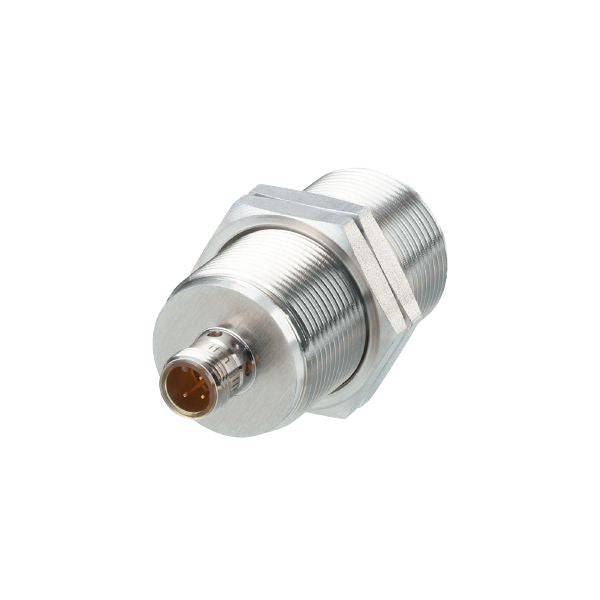

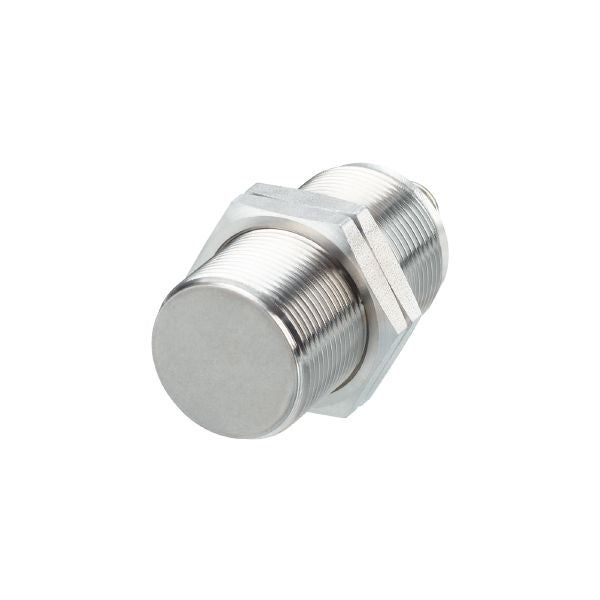

Ifm II502A Inductive Full-Metal Sensor
Country Of Origin: Germany
Description:
- Electrical Design: PNP
- Output Function: Normally Open
- Sensing Range: 10 mm
- Housing: Threaded Type
- Dimensions: M30 x 1.5 / L = 65 mm
- Special Feature: Gold-Plated Contacts; Increased Sensing Range; Full-Metal Housing
- Application: For Applications In Hazardous Areas
- Pressure Rating: 100 bar / 10 MPa (Sensing Face)
- Operating Voltage: 10...30 DC V
- Current Consumption: < 20 mA
- Protection Class: III
- Reverse Polarity Protection: Yes
- Max. Voltage Drop Switching Output DC: 2.5 V
- Permanent Current Rating Of Switching Output DC: 100 mA
- Switching Frequency DC: 50 Hz
- Short-Circuit Protection: Yes
- Overload Protection: Yes
- Real Sensing Range Sr: 10 ± 10%
- Operating Distance: 0...8.1 mm
- Increased Sensing Range: Yes
-
