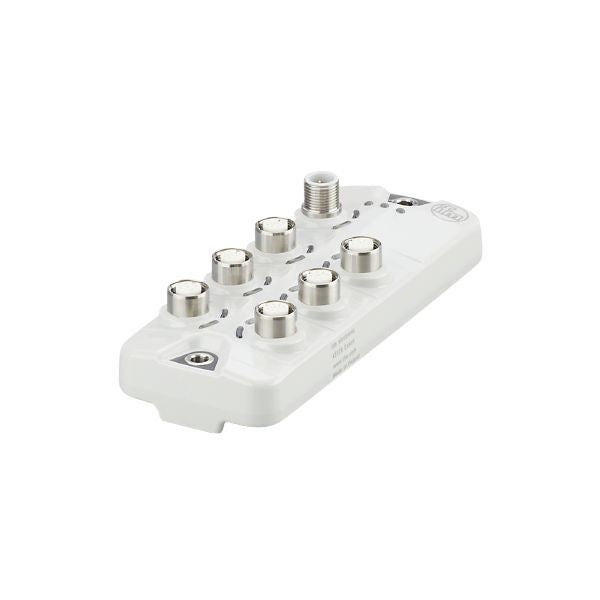

Ifm AL2240 Io-Link Input Module
Country Of Origin:
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | 100...700; (US) |
| Protection class | III |
| Current rating per port [A] | 0.1 |
|---|
| Number of inputs and outputs | Number of digital inputs: 12 |
|---|
| Number of digital inputs | 12; (6 x 2 PNP type 2 according to IEC 61131-2) |
|---|---|
| Sensor supply of the inputs | IO-Link |
| Voltage supply [V] | 16...30 |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| SDCI standard | IEC 61131-9 | ||||
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SIO mode | no | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 4.3 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...60 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...70 | ||||
| Max. relative air humidity [%] | 75; (5...75) | ||||
| Max. height above sea level [m] | 2000 | ||||
| Protection | IP 65; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Degree of soiling | 2 | ||||
| Chemical media |
|
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||
| Vibration resistance |
|
||||||
| MTTF [years] | 197 |
| Weight [g] | 300 |
|---|---|
| Material | housing: PA grey; Socket: stainless steel (1.4404 / 316L) |
| Sealing material | EPDM |
| Display |
|
|---|
| Accessories (optional) |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| X1 | Connector: 1 x M12; coding: A |
|---|
| X1.0...X1.5 | Connector: 6 x M12; coding: A; sealing: EPDM |
|---|
