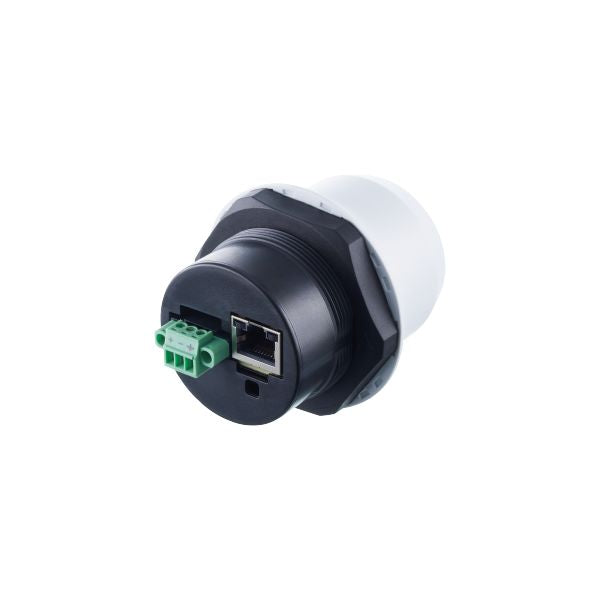

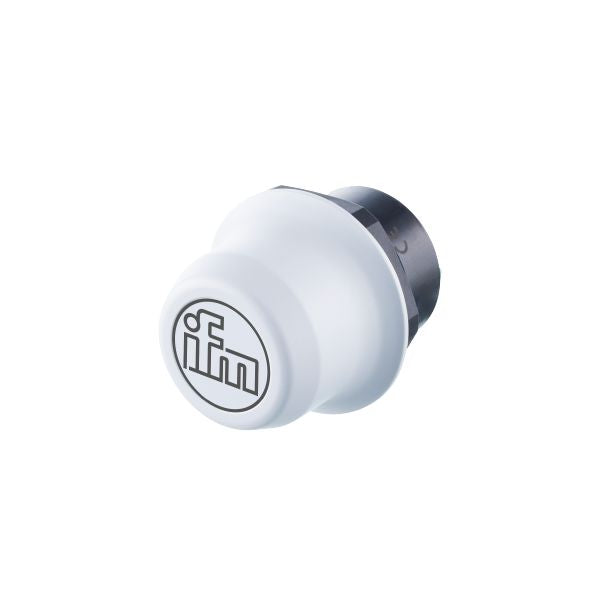

Ifm AE9001 Industrial 4G Lte Router Us
Ifm AE9001 Industrial 4G Lte Router Us is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm AE9001 Industrial 4G Lte Router Us
Country Of Origin:
| Application | industrial LTE router US |
|---|---|
| Operating temperature (active) [°C] | -40...65 |
| Operating voltage [V] | 11...33 DC |
|---|---|
| Current consumption [mA] | < 1200 |
| Protection class | III |
| Reverse polarity protection | yes |
| Communication interface | GNSS; Mobile networks; Ethernet | |
|---|---|---|
| Note on interfaces |
|
| Frequency band | GPS; GLONASS; Galileo; Beidou |
|---|
| Transmission standard | LTE Cat-4 |
|---|---|
| Frequency band | B2, B4, B5, B12, B13, B14, B25, B26, B66 |
| Transmission rate | 10 MBit/s; 100 MBit/s |
|---|---|
| Protocol | TCP/IP; UDP/IP |
| Storage temperature [°C] | -40...65 |
|---|---|
| Protection | IP66, IP67: Upper part; IP21: Connections |
| Degree of soiling | 2 |
| EMC |
|
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||||||
| Damp heat |
|
||||||||||||||
| Radio approval | EN 301908-1 EN 303413 | ||||||||||||||
| Standard | EN 62368-1 |
| Weight [g] | 193.3 |
|---|---|
| Type of mounting | cable gland; (M50) |
| Dimensions [mm] | Ø 68 / L = 75 |
| Material | housing; Upper part: PBT / PC; housing; lower part: PBT |
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x RJ45 |
| Connector: 1 x terminal |
