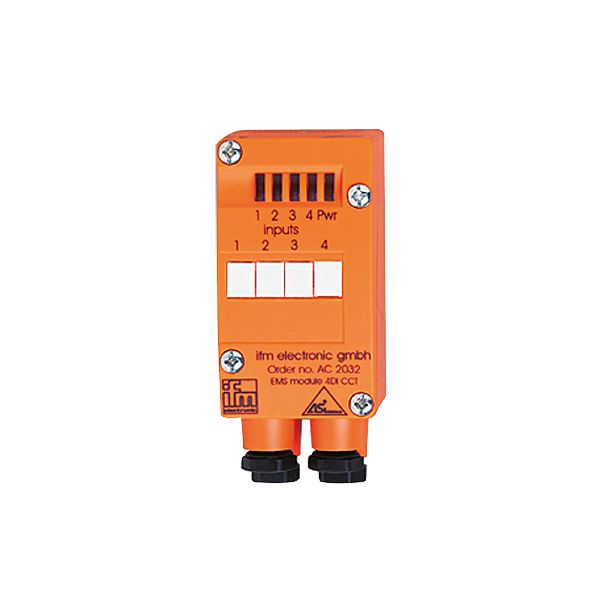

Ifm AC2032 As-Interface Universal Module
Country Of Origin:
| Application | field installation |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 200 |
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Voltage supply [V] | 20...30 |
| Max. total current rating of inputs [mA] | 160 |
| Input current High [mA] | > 5 |
| Input current low [mA] | < 3 |
| Switching level high [V] | > 10 |
| Digital inputs protected against short circuits | yes |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
| EMC |
|
|---|
| AS-i master profile | M2; M3; M4 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-i profile | S-0.0.F | ||||||||||
| AS-i I/O configuration [hex] | 0 | ||||||||||
| AS-i ID code [hex] | 0.F | ||||||||||
| Data bits |
|
| Weight [g] | 182 |
|---|---|
| Type of mounting | AS-i interface to FC and SC lower parts |
| Material | PA 6-GF30; stainless steel (1.4305 / 303) |
| Display |
|
|---|
| Module connection | Flat cable |
|---|
| Pack quantity | 1 pcs. |
|---|
| cage clamps: |
