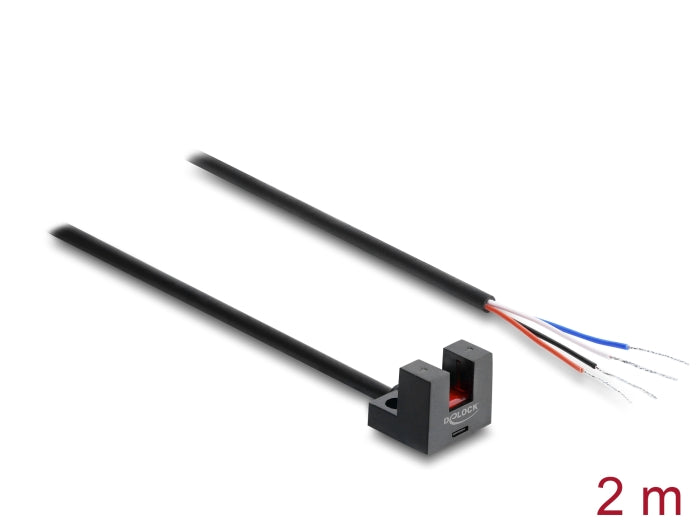

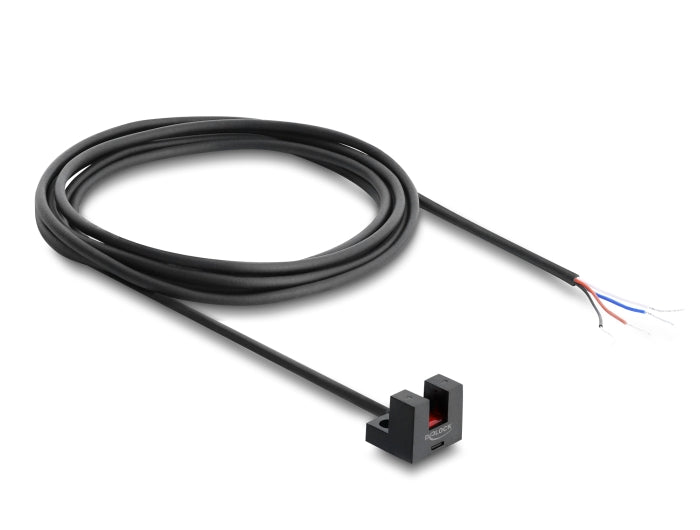

Delock 91867 Forked Light Barrier 5 Mm Type L Pnp L/D Switchable 2 M
Delock 91867 Forked Light Barrier 5 Mm Type L Pnp L/D Switchable 2 M is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Being a Canadian company, our U.S. shipments are subject to tariffs. Under DDP (Delivered Duty Paid), all applicable tariffs and fees are calculated and paid upfront at checkout.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Country Of Origin: China
4 x open wires
� Pin assignment:
Pin 1 - VCC
pin 2 - GND
Pin 3 - Output 1 (ON when light-darkening)
Pin 4 - Output 2 (ON when light-input)
� Design: Type L
� Switching mode: L/D switchable (light-on / dark-on)
� Slot width: 5 mm
� Standard detection object: detection of opaque objects from a size of 0.8 x 1.2 mm
� Switching principle: PNP
� Switching frequency: 3 kHz
� Ambient light: < 1000 lux
� Repeat accuracy: ? 0.03 mm
� Operating temperature: -25 �C ~ 55 �C
� Relative humidity: 5 - 85 % (non condensing)
� Mounting hole diameter: ca. 3.2 mm
� Pitch of screw hole: ca. 8 mm
� Housing material: PC + ABS
� Colour: black
� Protection rating: IP50
� Protection circuit: overvoltage protection, reverse polarity protection
� Operating voltage: 5 - 24 V
� Residual voltage: < 1 V
� Current consumption: < 8 mA
� Length incl. connectors: ca. 2 m
-
