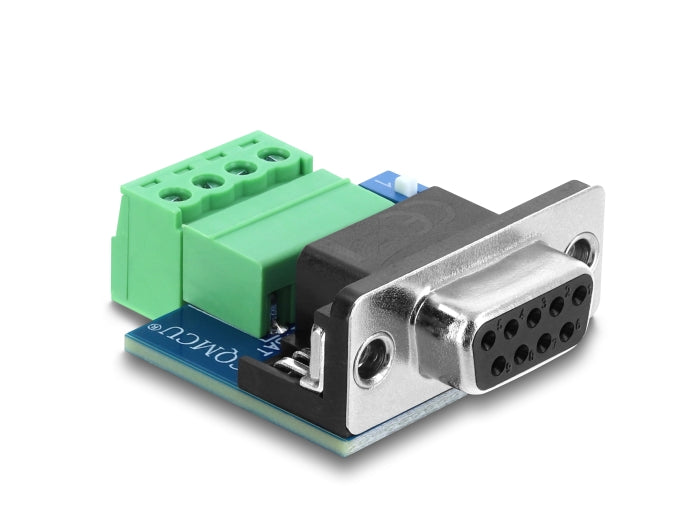

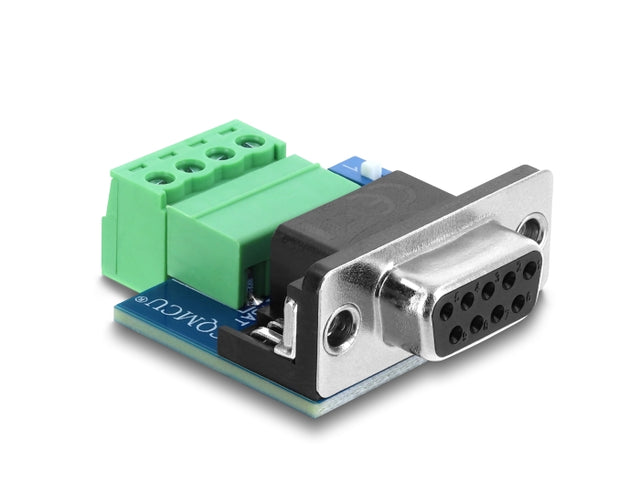

Delock 91294 Db9 Female To 4-Pin Terminal Block Can/Lin Adapter 120 Ohms
Delock 91294 Db9 Female To 4-Pin Terminal Block Can/Lin Adapter 120 Ohms is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Being a Canadian company, our U.S. shipments are subject to tariffs. Under DDP (Delivered Duty Paid), all applicable tariffs and fees are calculated and paid upfront at checkout.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Country Of Origin: China
1 x D-Sub 9 pin female
1 x 4 pin terminal block
� Pitch: 3.81 mm
� Useable for a cable gauge from 22 to 18 AWG
� Suitable for KVASER ports
� Terminating resistor: 120 ohms, enableable via DIP switch
� Pin assignment:
pin 1 - pin 2 Can L
pin 2 - pin 7 Can H / LIN
pin 3 - pin 3 / 5 / 6 GND
pin 4 - pin 9 VBAT
� Dimensions (LxWxH): ca. 37 x 28 x 16 mm
-
