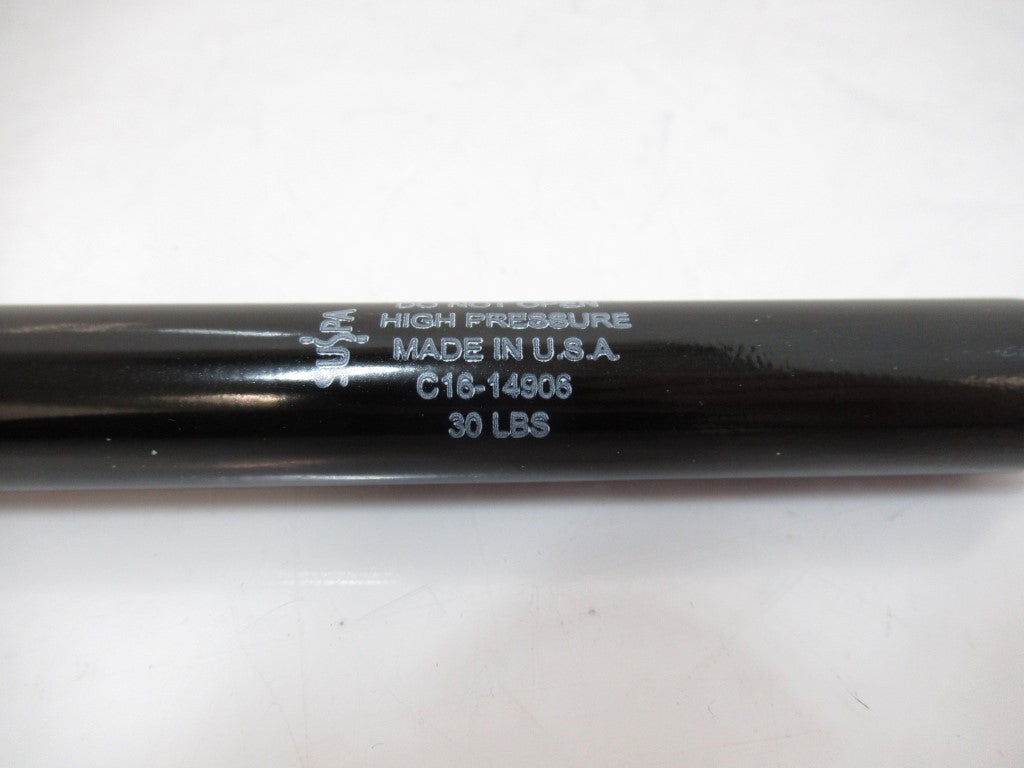

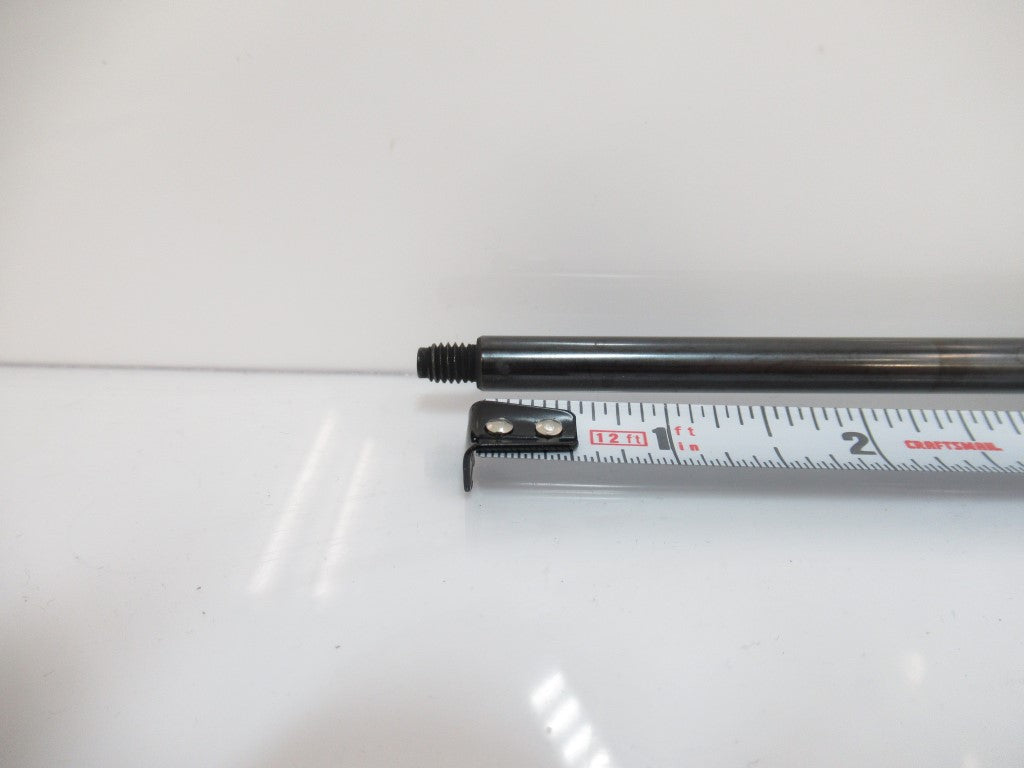

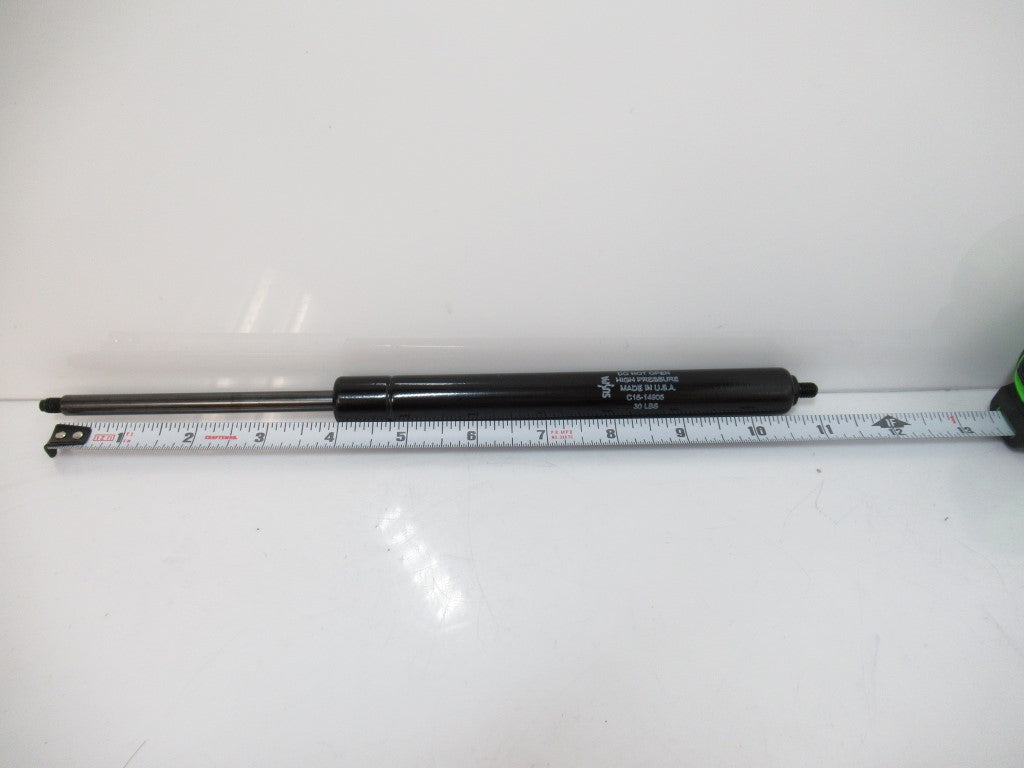

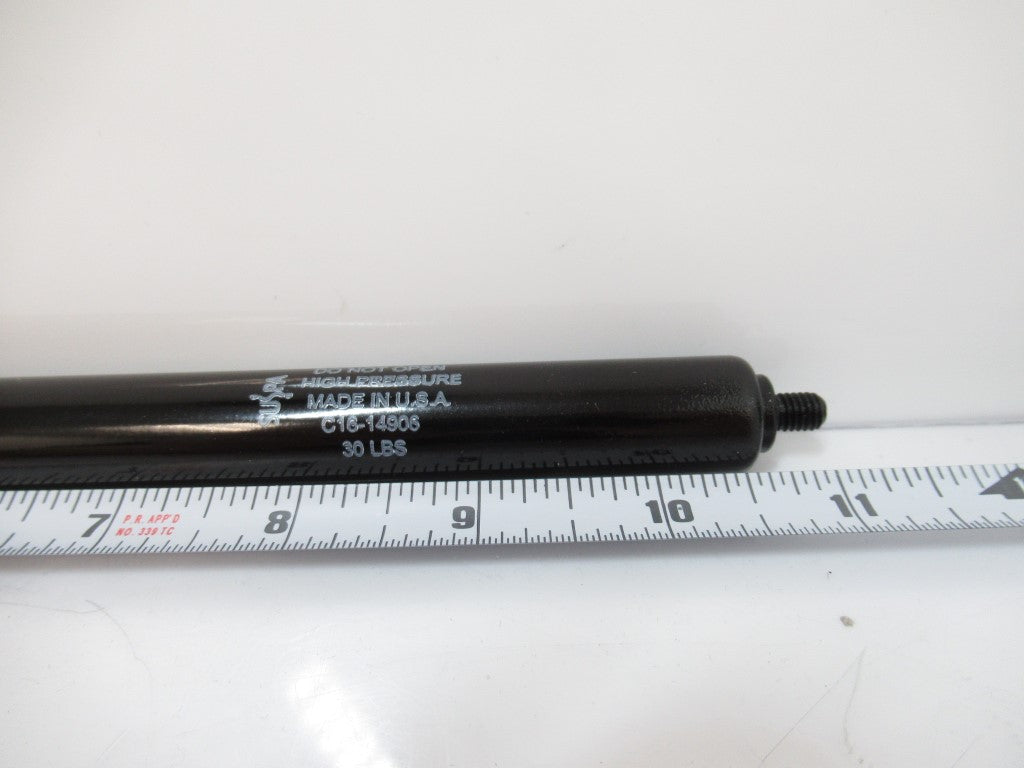

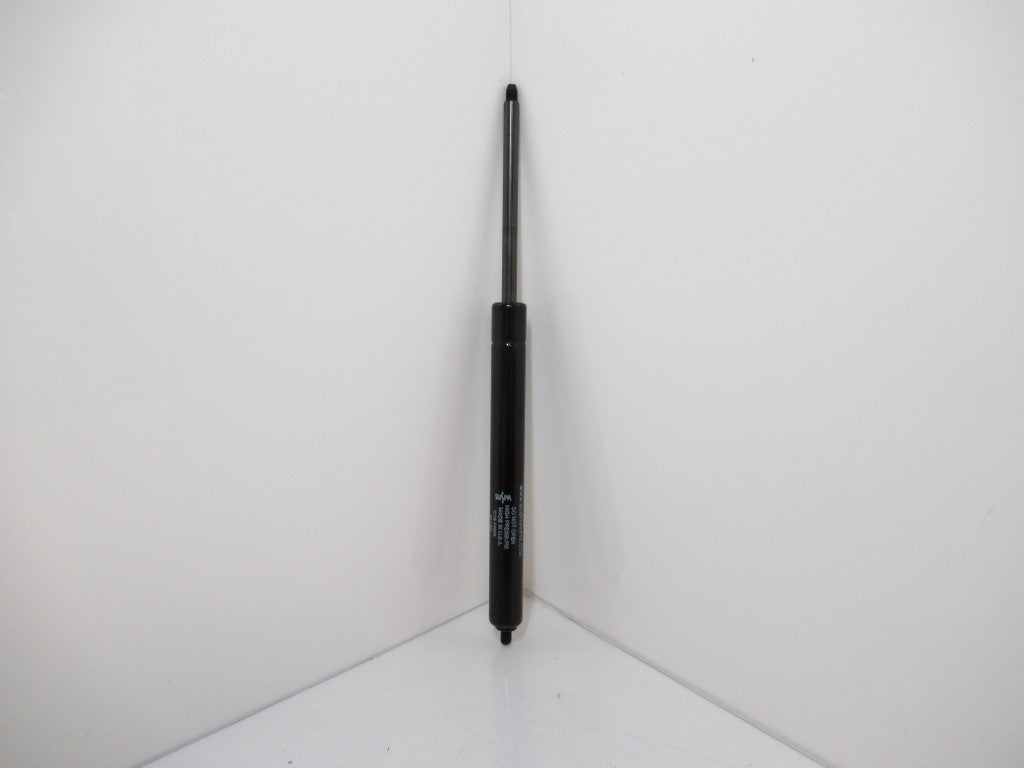

Suspa C16-14906 Gas Spring 10.71" Extended Length, 30 lbs, Sol...
Country Of Origin: U.S.A.
Product Information
C1614906 (30 lbs)

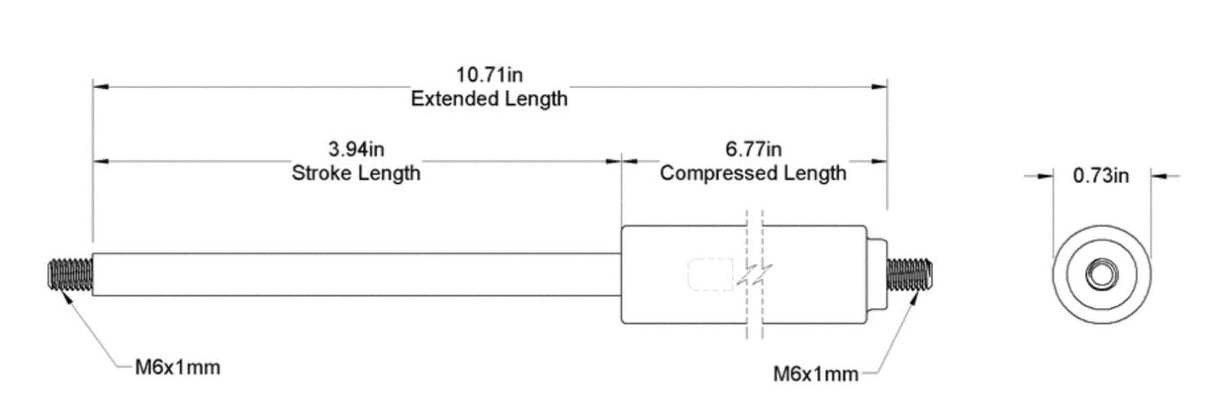

| Extended Length | 10.71" |
| Compressed Length | 6.77" |
| Stroke Length | 3.94" |
| Compression Force | 37 lbs. |
| Mounting Orientation | Horizontal, Vertical with Rod Down |
| Maximum Cycles per Minute | 6 |
| Maximum Cycles | 25,000 |
| Force Mechanism | Compressed Nitrogen Gas and Oil |
| Refillable | No |
| Lockable | No |
| Body Diameter | 0.73" |
| Body Finish | Steel |
| Seal Material | Rubber |
| Rod | |
| Diameter | 0.31" |
| Thread Size
|
M6
|
| Thread Pitch | 1 mm |
| Material | Steel |
| End Thread Size
|
M6
|
| End Thread Pitch | 1 mm |
| Temperature Range | -22° to 176° F |
| Extension Force | 30 lbs. |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemptions 6(a)-I, 6(b)-II, and 6(c) - Lead as an alloying element in steel and aluminum and in copper alloy |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | No |
| Schedule B | 848790.0080 |
| ECCN | EAR99 |
-
