7000-08331-0000000 Murrelektronik MOSA M8 Male 0° Field-Wireable
7000-08331-0000000 Murrelektronik MOSA M8 Male 0° Field-Wireable is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Country Of Origin:
Product Information
7000083310000000
- IDC Terminals
- Male Straight
- M8, 3-Pole
- Connection Cross Section: 0.14...0.34 mm²
Technical Data
- Operating Voltage: Max. 32 V AC/DC
- Rated Surge Voltage: 0.8 kV
- Operating Current Per Contact: Max. 4 A
- No. Of Poles: 3
- Configuration: Fully Used
- Material Group: IEC 60664-1, Category I
- Over Voltage Category: 3
- Isolation Resistance: ≥ 10^8 Ω
- Contact Resistance: ≤ 10 Mω
- Connection Cross Section: 0.14...0.34 mm² (Conductor Diameter Min. 0.1 mm)
- Sealing Range (Cable Ø): 2.5...5.1 mm (Gasket Included)
- Outer Wire Ø: 1.0...1.6 mm
- Locking Of Ports: Screw Thread (M8×1 mm) Recommended Torque 0.4 Nm, Self-Securing
- Compression Gland: M8 (SW9)
- Protection: IP67 Inserted And Tightened (En 60529)
- Wire Isolation: PVC, PP, TPE
- Material: PA
- Locking Material: Zinc Die Casting, Matte Nickel Plated
- Mating Cycles: ≥ 100
- Reconnection (Cable): 10
General Data
- Standards: Din En 61076-2-104 (M8)
- Connection: Insulation Displacement Technology IDC
- Mounting Method: Inserted, Tightened
- Material (Contact): Copper Alloy

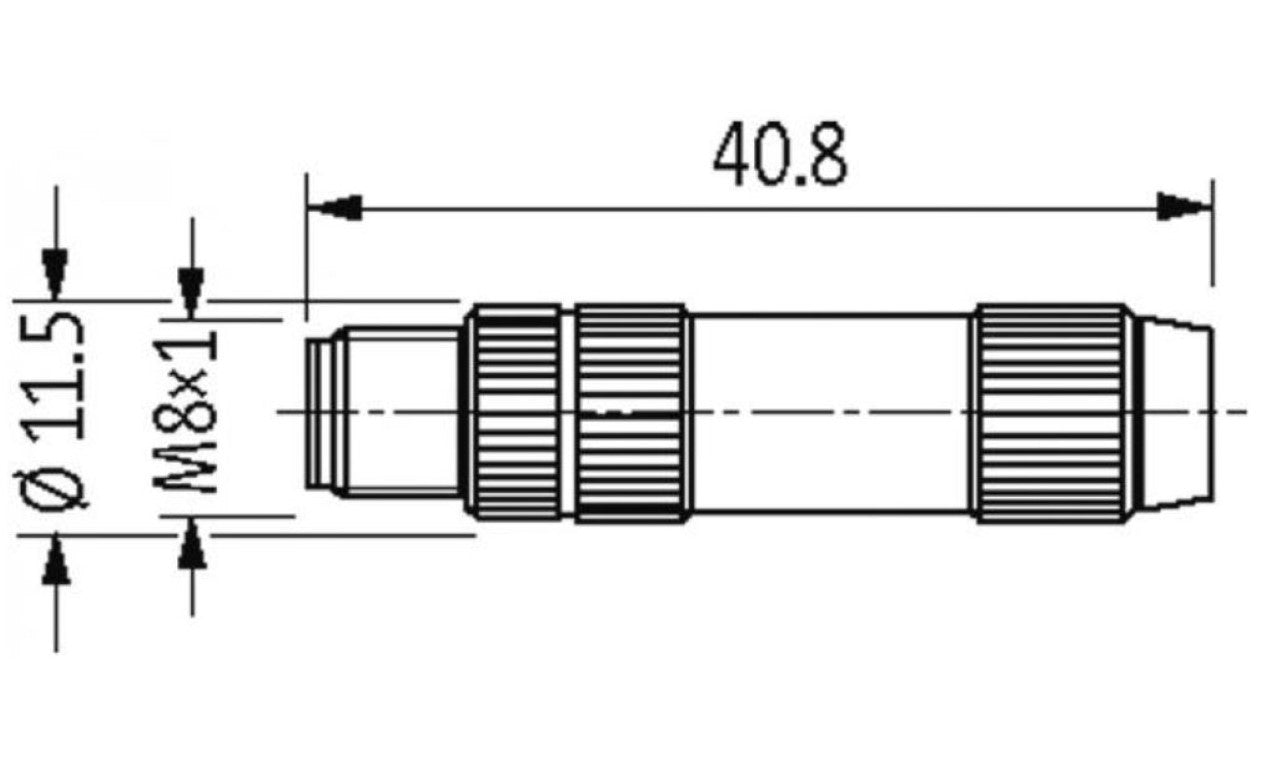

- Dimensions H×W×D: 40.8×11.5×11.5 mm
- Pollution Degree: 3
- Temperature Range: -25...+85 °C
