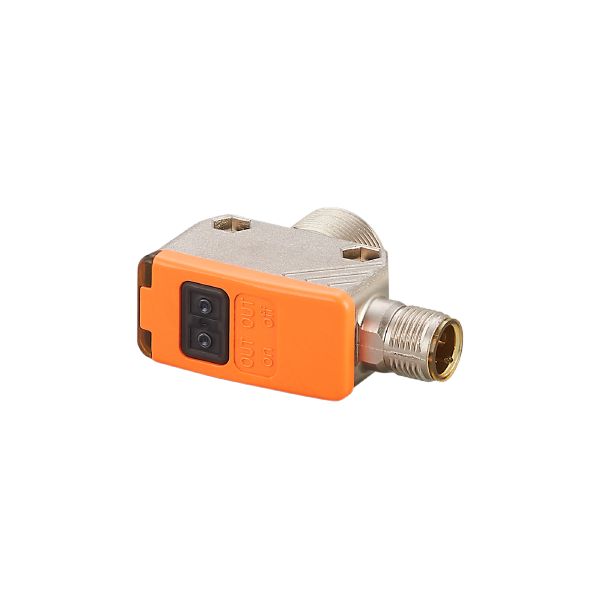

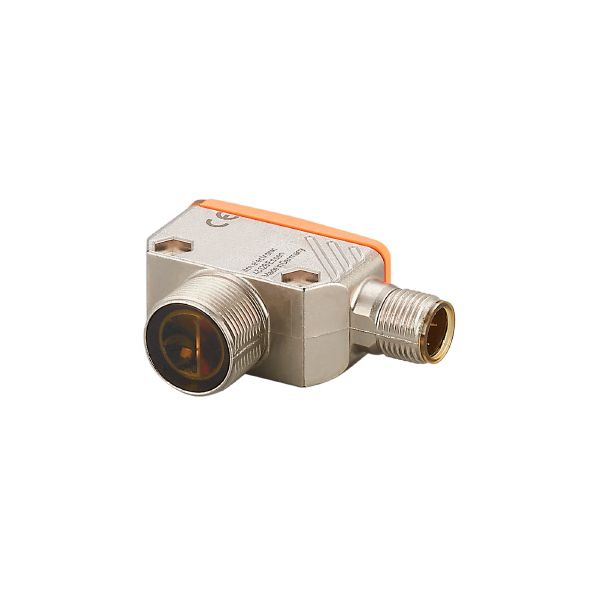

Ifm OGH580 Diffuse Reflection Sensors With Background Suppression
| Type of light | red light |
|---|---|
| Housing | rectangular with M18 thread |
| System | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
| Operating voltage [V] | 10...30 DC; (cULus - Class 2 source required) |
|---|---|
| Rated insulation voltage [V] | 32 |
| Current consumption [mA] | 25 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 300 |
| Type of light | red light |
| Wave length [nm] | 645 |
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Range [mm] | 15...200; (white paper 200 x 200 mm 90 % remission) |
|---|---|
| Range on white object (90 % remission) [mm] | 15...200 |
| Range on grey object (18 % remission) [mm] | 15...200 |
| Range on black object (6 % remission) [mm] | 15...200 |
| Range adjustable | yes |
| Max. light spot diameter [mm] | 13 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Measuring Sensor, Identification and Diagnosis, Switching Signal Channel, Teach Channel | ||||||||
| SIO mode | yes | ||||||||
| Required master port class | A | ||||||||
| Min. process cycle time [ms] | 10 | ||||||||
| IO-Link process data (cyclical) |
|
||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter | ||||||||
| Supported DeviceIDs |
|
||||||||
| Note |
|
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -40...60 |
| Protection | IP 65; IP 67 |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 782 | ||||||||
| UL approval |
|
| Weight [g] | 60.5 | |
|---|---|---|
| Housing | rectangular with M18 thread | |
| Dimensions [mm] | 52.6 x 19 x 35.6 | |
| Thread designation | M18 x 1 | |
| Material | diecast zinc; PEI | |
| Lens material |
|
|
| Lens alignment | Side sensing |
| Display |
|
||||
|---|---|---|---|---|---|
| Operating elements |
|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
