Ifm | SKU: IF-NN5008-E | Barcode: DOES NOT APPLY

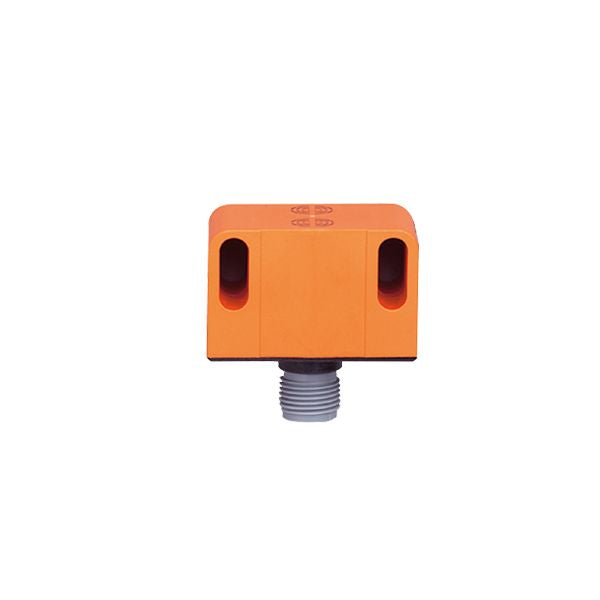

Ifm NN5008 Inductive Namur Dual Sensor For Valve Actuators

$156.11 USD

Shipping calculated at checkout.

Ifm NN5008 Inductive Namur Dual Sensor For Valve Actuators is backordered and will ship as soon as it is back in stock.

As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 30% tariff.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Product characteristics

Electrical design	NAMUR
Output function	2 x normally closed
Sensing range [mm]	4
Housing	rectangular
Dimensions [mm]	40 x 26 x 26

Electrical data

Connection at circuit amplifier	yes
Switching amplifiers	connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]	8.2; (1kΩ)
Supply voltage DC [V]	7.5...15
Current consumption [mA]	< 1; (disabled; conductive: > 2,1)
Protection class	III

Outputs

Electrical design	NAMUR
Output function	2 x normally closed
Switching frequency DC [Hz]	1800

Monitoring range

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...80
Protection	IP 67

Tests / approvals

Approval

DMT 02 ATEX E 028; BVS 04 ATEX E 153 X; IECEx BVS 06.0003X; TIIS TC22886

ATEX marking

II 1G Ex ia IIB T6 Ga Ta -20...70°C

II 1G Ex ia IIB T5 Ga Ta -20...80°C

II 2G Ex ia IIC T6 Gb Ta -20...70°C

II 2G Ex ia IIC T5 Gb Ta -20...80°C

II 1D Ex ia IIIC T20090°C Da Ta: -20...70°C

II 1D Ex ia IIIC T200100° C Da Ta: -20...80°C

EMC

EN 60947-5-6

Shock/vibration resistance

30 g (11 ms) / 10-55 Hz (1 mm)

MTTF [years]

1253

Safety classification

Max. internal capacitance [nF]	140; (per intrinsically safe electric circuit)
Max. internal inductance [µH]	130; (per intrinsically safe electric circuit)

Mechanical data

Weight [g]	67
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	40 x 26 x 26
Material	housing: PBT; cover: PC
Tightening torque [Nm]	0.6...1.5; (knurled nut)

Displays / operating elements

Display

Switching status

2 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
