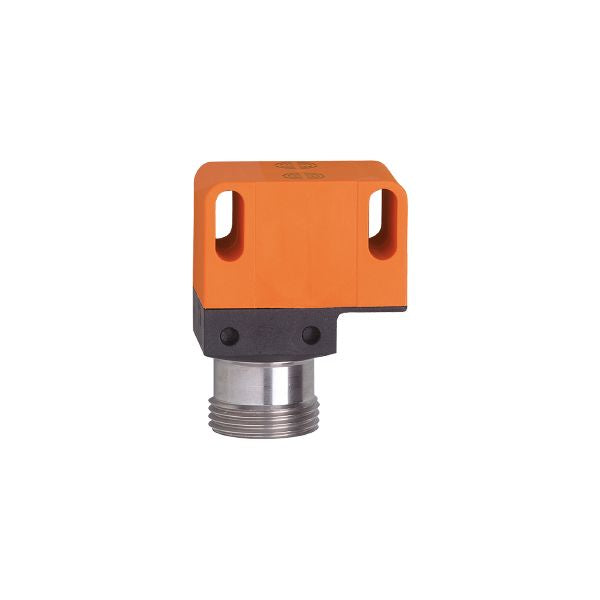

Ifm IN0117 Dual Inductive Sensor For Valve Actuators
Country Of Origin:
| Output function | 2 x normally open |
|---|---|
| Sensing range [mm] | 4 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 26 |
| Frequency AC [Hz] | 47...63 |
|---|---|
| Operating voltage [V] | 20...140 AC / 10...140 DC |
| Protection class | I |
| Reverse polarity protection | no |
| Output function | 2 x normally open |
|---|---|
| Max. voltage drop switching output DC [V] | 5 |
| Max. voltage drop switching output AC [V] | 5 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 0.8 |
| Permanent current rating of switching output AC [mA] | 200 |
| Permanent current rating of switching output DC [mA] | 200 |
| Short-time current rating of switching output [mA] | 900; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 25 |
| Short-circuit proof | no |
| Overload protection | no |
| Sensing range [mm] | 4 |
|---|---|
| Real sensing range Sr [mm] | 4 ± 10 % |
| Operating distance [mm] | 0...3.25 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Switch-point drift [% of Sr] | -10...10 |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 502 |
| Weight [g] | 78.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 26 x 26 |
| Material | stainless steel (1.4305 / 303); PBT |
| Display |
|
|---|
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Place the fuse outside the hazardous area. |
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x 7/8"; coding: A |
