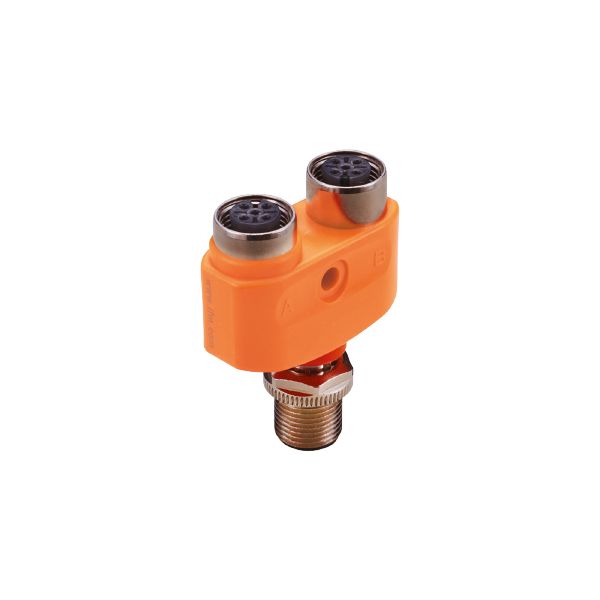

Ifm EBC116 Y/T Splitter
Ifm EBC116 Y/T Splitter is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm EBC116 Y/T Splitter
Country Of Origin:
| System | Free from silicone; gold-plated contacts |
|---|---|
| Application | logic OR function |
| Free from silicone | yes |
| Operating voltage [V] | < 60 AC/DC; (cULus: 30 AC / 42 DC) |
|---|---|
| Protection class | II |
| Max. current load per module/slot [A] | 4 |
| Max. current load total [A] | 4 |
| Overall current rating (UL) [A] | 3 |
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
|
|
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Weight [g] | 36.9 |
|---|---|
| Material | housing: PA orange; sealing: FKM |
| Material nut | brass, nickel-plated |
| Pack quantity | 1 pcs. |
|---|
| Connector: 2 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
| Connection | Connector: 1 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
