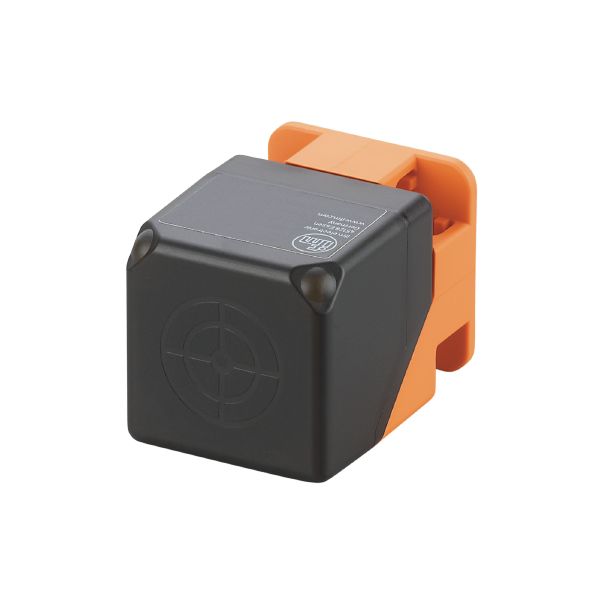

Ifm DTC510 Rfid Read/Write Head Hf
Country Of Origin:
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; Taiwan; India; Singapore; China; South Korea; Israel | |
|---|---|---|
| Note on radio approval |
|
| Operating voltage [V] | 9...32 DC |
|---|---|
| Current consumption [mA] | ≤ 50 (24 V) / ≤ 80 (12 V) |
| Protection class | III |
| Operating frequency [MHz] | 13,56 |
| RFID standard | ISO 15693 |
| Distance to the ID tag [mm] |
|
|---|
| Communication interface | CAN |
|---|
| Protocol | CANopen |
|---|
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; IP 69K |
| Shock resistance |
|
||||
|---|---|---|---|---|---|
| Vibration resistance |
|
| Weight [g] | 180 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Dimensions [mm] | 40 x 40 x 54 |
| Material | housing: PA; metal parts: stainless steel |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |

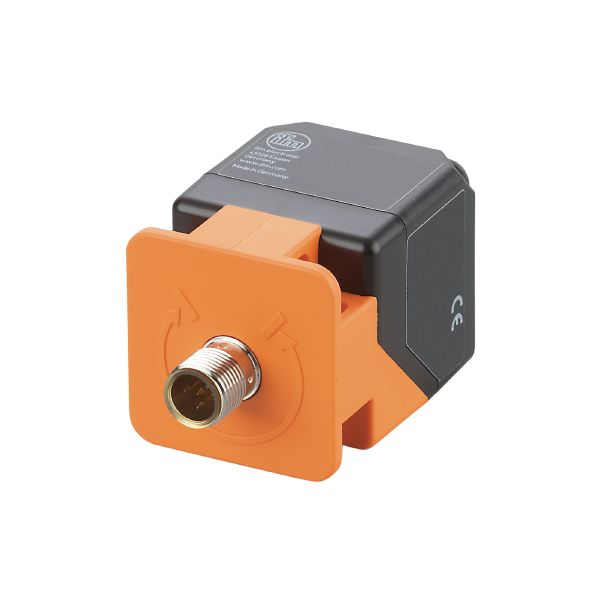

| Connector: 1 x M12, rotatable, locking; coding: A |
