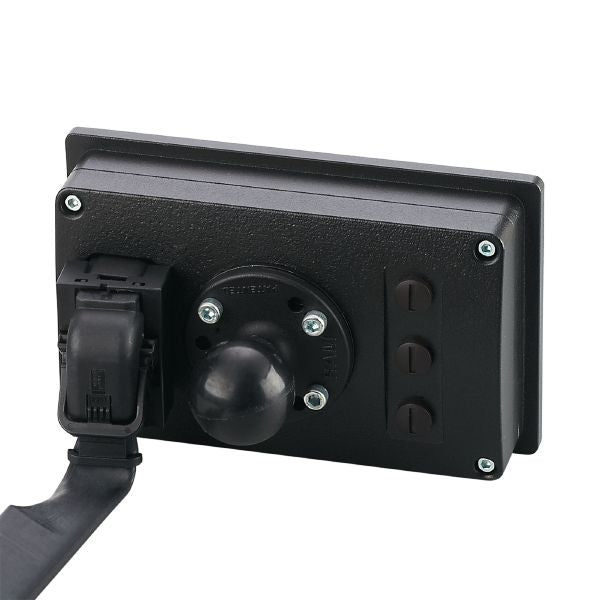

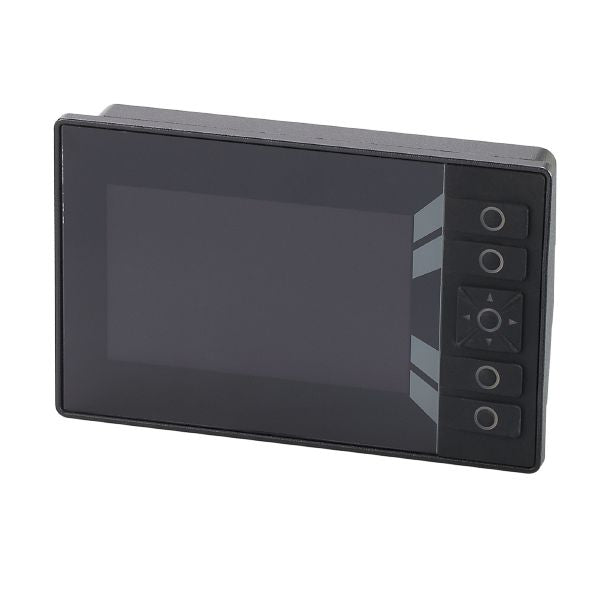

Ifm CR1152 Programmable Graphic Display For Controlling Mobile Machines
Ifm CR1152 Programmable Graphic Display For Controlling Mobile Machines is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm CR1152 Programmable Graphic Display For Controlling Mobile Mach...
Country Of Origin:
| Operating voltage [V] | 8...32 DC |
|---|---|
| Nominal voltage DC [V] | 12 / 24 |
| Current consumption [mA] | < 833; (24 V DC; with switched outputs: < 5833 mA) |
| Power consumption [W] | 20 |
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
|---|
| Number of digital inputs | 2 |
|---|---|
| Number of video inputs | 2; (analog) |
| Video input | PAL, NTSC |
| Number of digital outputs | 2 |
|---|---|
| Max. current load per output [mA] | 2500 |
| Audio output | Stereo Line-Out |
| Parameter setting options | CODESYS 3.5 |
|---|---|
| PLC function to IEC 61131-3 | yes |
| Operating system | Embedded Linux 4.14 |
| Communication interface | Ethernet; CAN; USB |
|---|---|
| Number of CAN interfaces | 4 |
| Number of Ethernet interfaces | 1 |
| Number of USB interfaces | 1 |
| Number of video interfaces (CVBS) | 2 |
| Transmission rate | 20 kBit/s... 1 MBit/s |
|---|---|
| Protocol | CANopen; SAE J1939; free protocol |
| Profile | CiA DS 301 Version 4; CiA DS 401 Version 1.4 |
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Transmission standard | 10Base-T; 100Base-TX | |
|---|---|---|
| Transmission rate | 100 MBit/s | |
| Protocol | TCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP | |
| Note on interfaces |
|
| Transmission rate | < 480 MBit/s |
|---|---|
| Version | 2.0 |
| Ambient temperature [°C] | -30...65 | ||
|---|---|---|---|
| Note on ambient temperature |
|
||
| Storage temperature [°C] | -30...85 | ||
| Max. relative air humidity [%] | 90; (non condensing) | ||
| Max. height above sea level [m] | 3000 | ||
| Protection | IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67) | ||
| Degree of soiling | 2 |
| EMC |
|
||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Continuous shock resistance |
|
||||||||||||||||||||||
| Fast temperature changes |
|
||||||||||||||||||||||
| Vibration resistance |
|
||||||||||||||||||||||
| Salt spray test |
|
| Weight [g] | 1073.7 | ||||||
|---|---|---|---|---|---|---|---|
| Type of mounting | panel/surf. | ||||||
| Dimensions [mm] | 176.6 x 114.1 x 41 | ||||||
| Material | diecast aluminium powder-coated; Display: glass anti-reflective and hardened | ||||||
| Information on service life |
|
| Display |
|
||||
|---|---|---|---|---|---|
| Operating elements |
|
||||
| Display resolution | 800 x 480 | ||||
