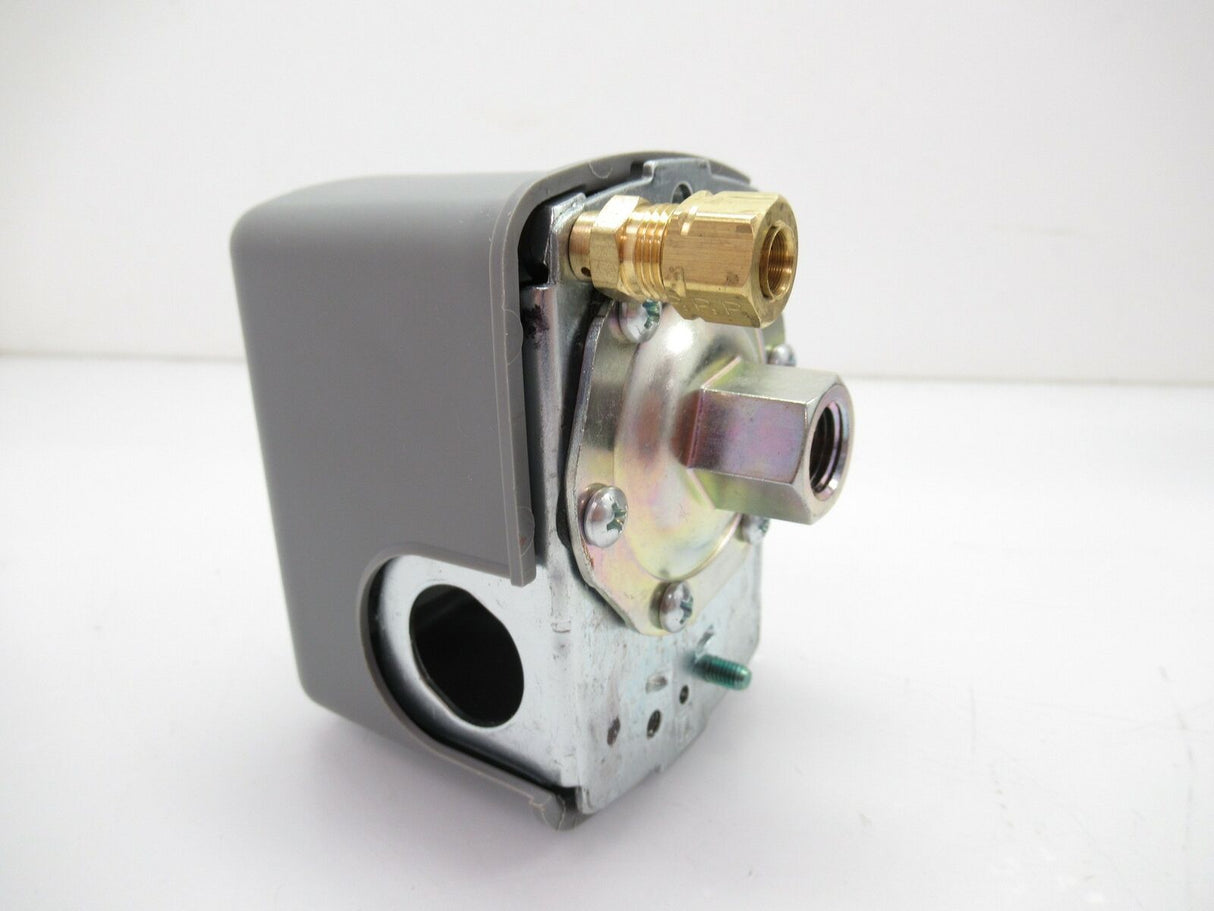

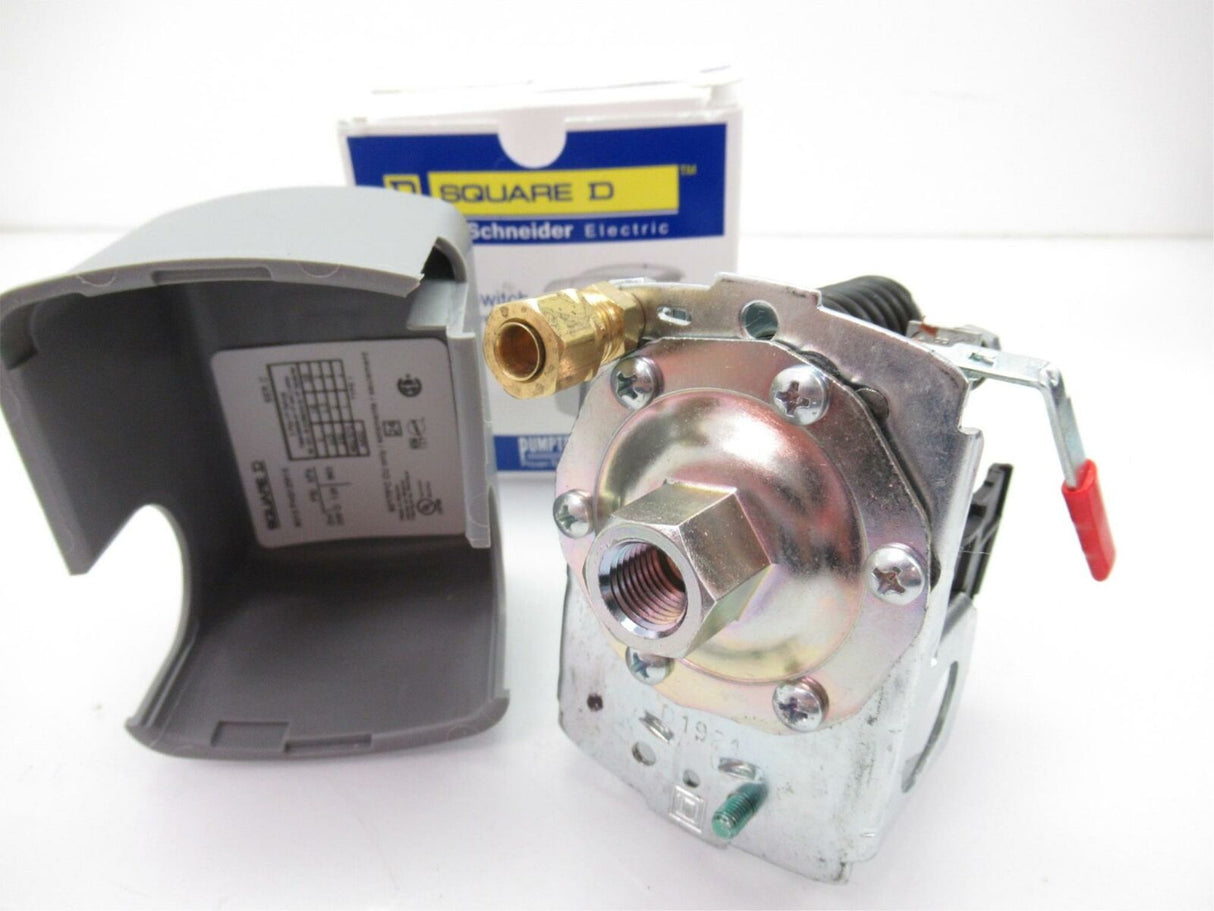

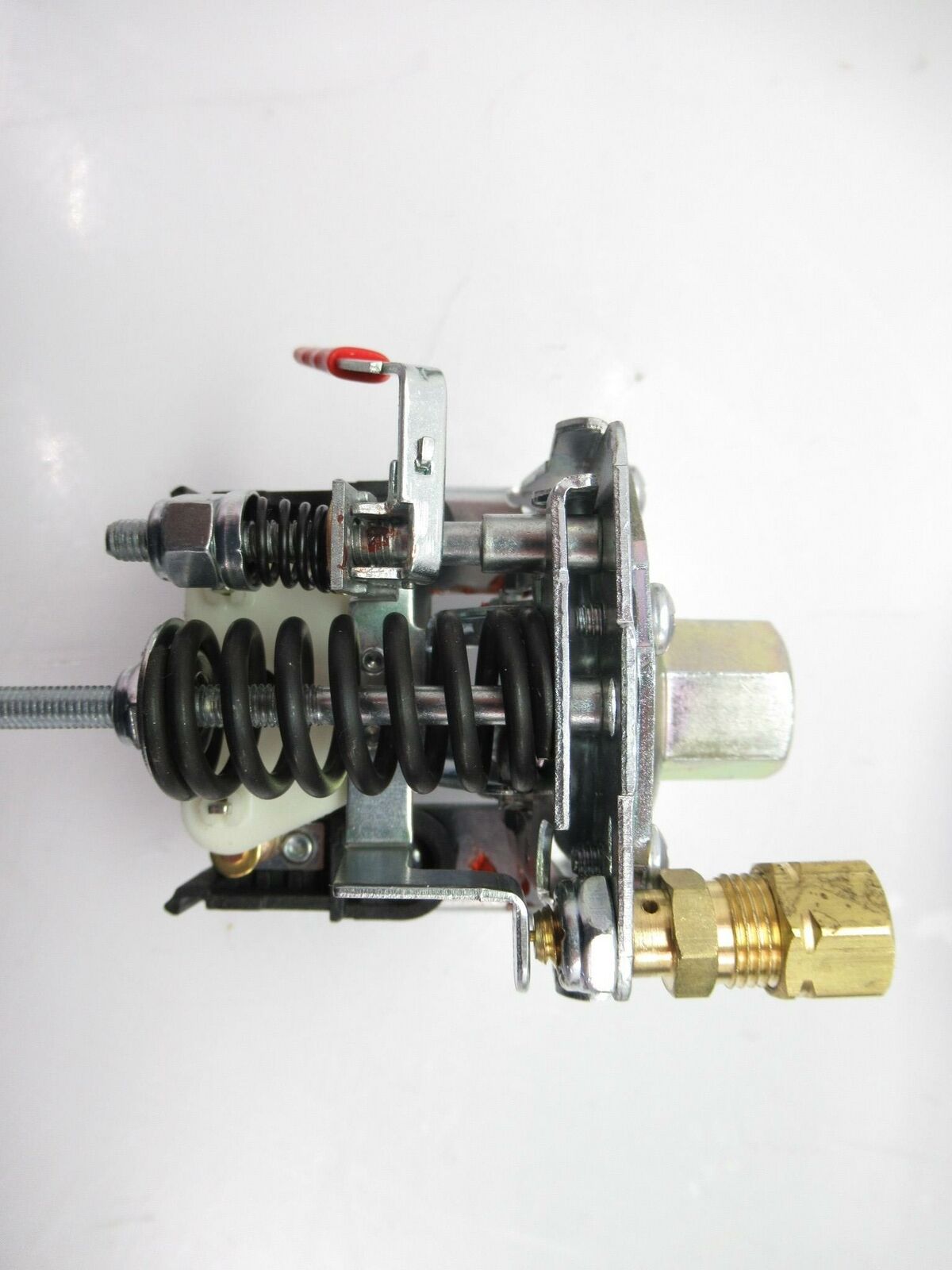

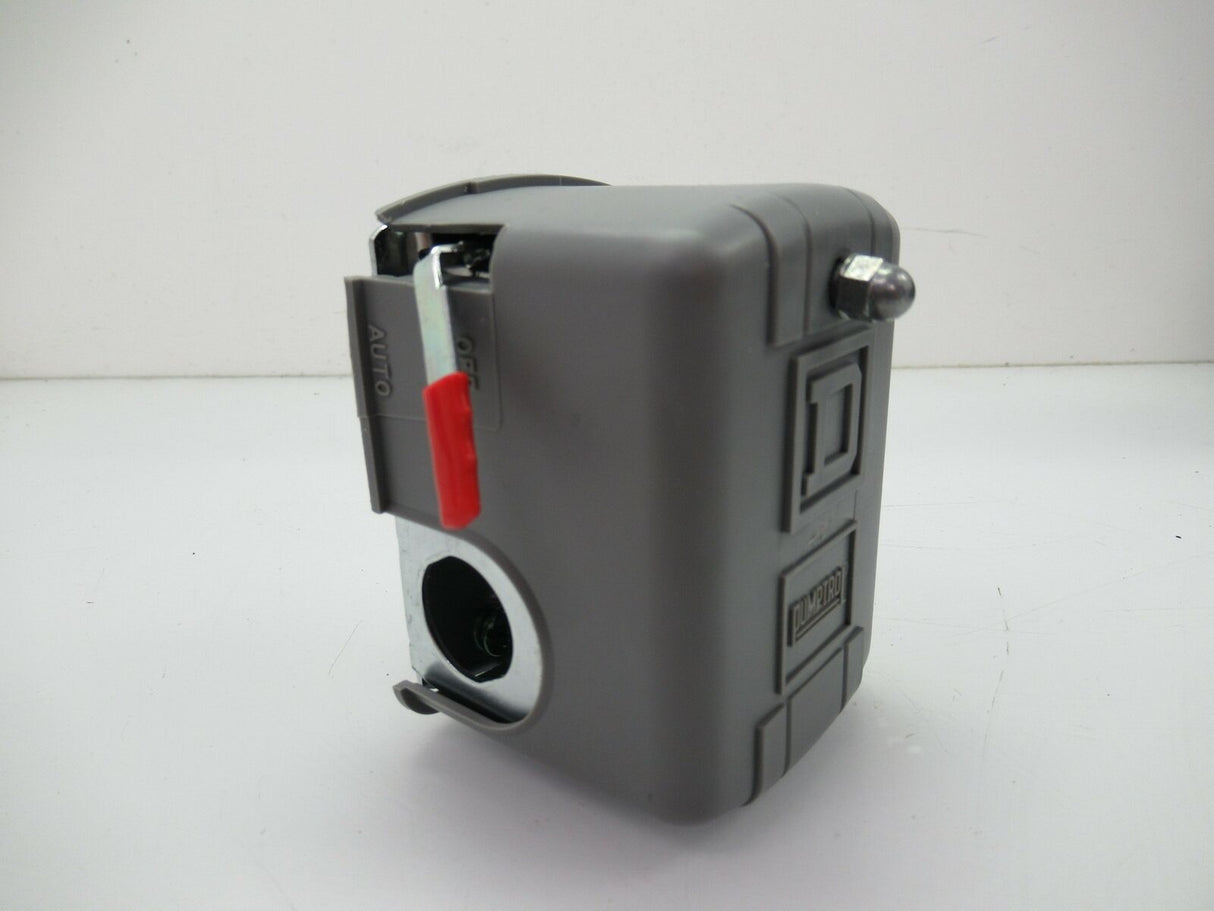

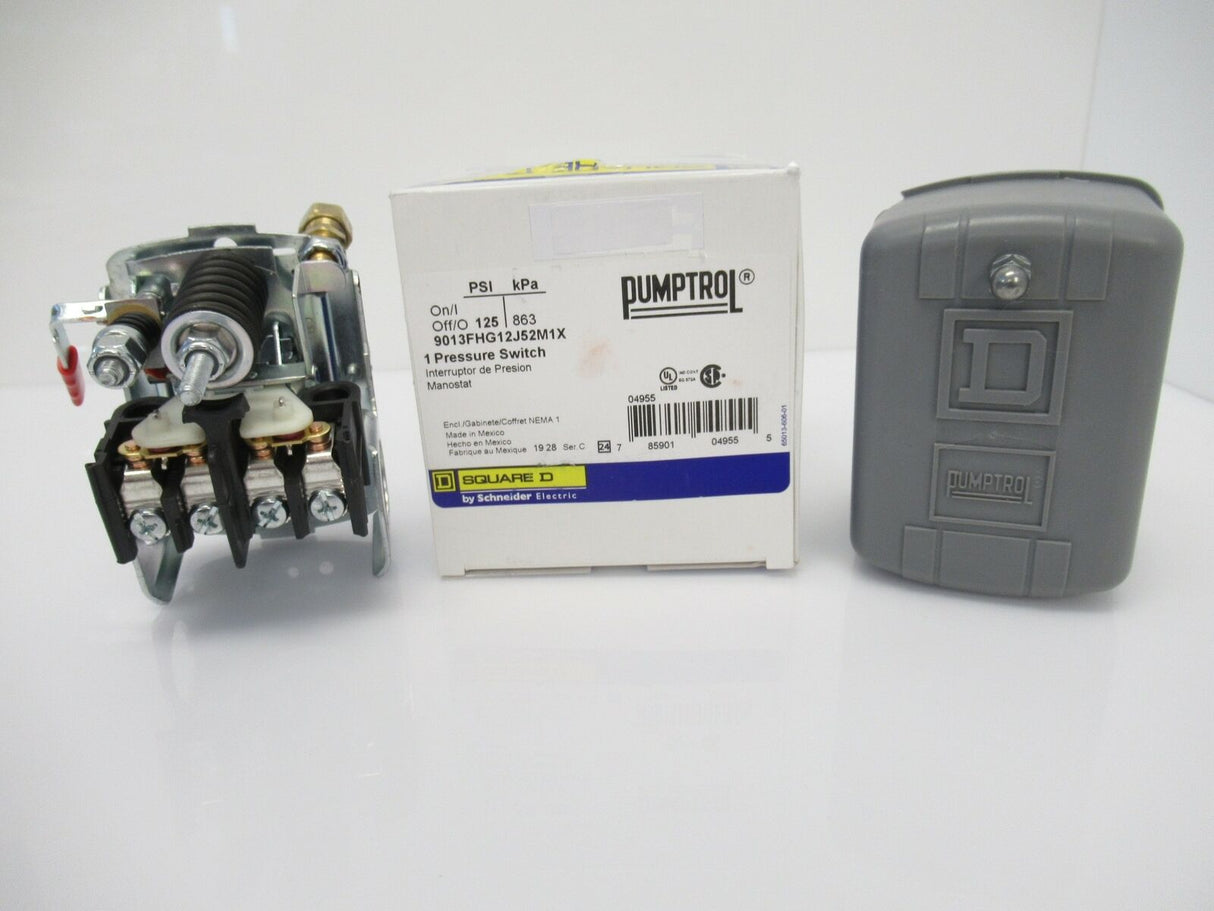

Square D Pumptrol 9013FHG12J52M1X Air Compressor Switch, 125 psi Max
Square D Pumptrol 9013FHG12J52M1X Air Compressor Switch, 125 psi Max is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 50% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Country Of Origin: Mexico
Product Information
| Pressure sensor name | 9013FH |
|---|---|
| Pressure sensor size | 1034.21 kPa |
| value of setting | Off at 125 psi |
| Electrical circuit type | Power circuit |
| Product specific application | Control small electrically driven air compressors |
| Pressure sensor type | Electromechanical pressure switch |
|---|---|
| Controlled fluid | Air (-30…125 °C) |
| Adjustable range on rising pressure | 482.63…1034.21 kPa |
| Approximate fixed differential | 206.84 kPa |
| Destruction pressure | 1516.85 kPa |
| Pressure actuator | Diaphragm |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Fixed differential |
| Setting | Internal |
| local display | Without |
| Contacts type and composition | 2 NC, snap action, DPST-DB, Form YY |
| Cable entry number | 2 22.35 mm cable entries with 0.84 in across flats conforming to UL 508 |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG Screw-clamp terminals, clamping capacity: 5.261 mm² |
| Fluid connection type | 0.25-inch NPSF internal conforming to UL 508 |
| Short-circuit protection | 20 A cartridge fuse, type gG |
| Materials in contact with fluid | Zinc-plated steel or equivalent flange Nitrile (Buna-N) or equivalent rubber diaphragm |
| Material | Polypropylene: cover Noryl thermoplastic resin or equivalent: cover |
-
