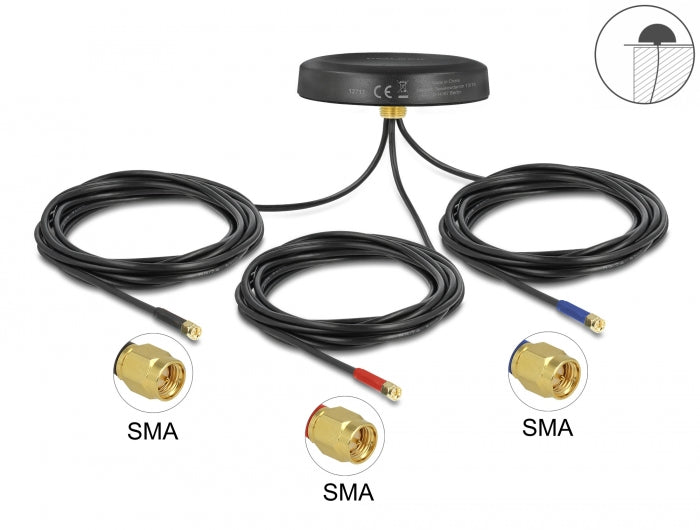

Delock 12717 Multiband Lte-Mimo Umts Gsm Gnss Antenna 3 X Sma Plug
Country Of Origin: China
• LTE GSM UMTS:
Frequency range:
0.698 - 0.960 GHz
1.710 - 2.700 GHz
GSM / UMTS / ZigBee / Z-Wave / LoRa / NB-IoT / WLAN 2,4 GHz / Bluetooth
Antenna gain: 2 dBi
Impedance: 50 Ohm
VSWR: 2.5
Polarisation: linear
Cable type: coaxial
Cable type: RG-174
Cable diameter: ca. 2.7 mm
Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• GNSS:
Frequency range:
GNSS: L1, 1.57542 GHz, 1.598 - 1.610 GHz
Antenna gain: 3 dBi
Impedance: 50 Ohm
VSWR: 2.5
Polarisation: RHCP
Cable type: coaxial
Cable type: RG-174
Cable diameter: ca. 2.7 mm
Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• LNA GNSS:
Frequency range:
GNSS: L1, 1.57542 GHz
Gain: 28 dBi
VSWR: 2.0
Impedance: 50 Ohm
Operating voltage: 2.2 - 5.0 V
Current consumption: 5 - 15 mA
• Screw-on mounting
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable colour: black
• Cable length incl. connectors: ca. 3 m
• Dimensions (Ø x H): ca. 81.0 x 15.5 mm
• Mounting hole diameter: 12 mm
-
