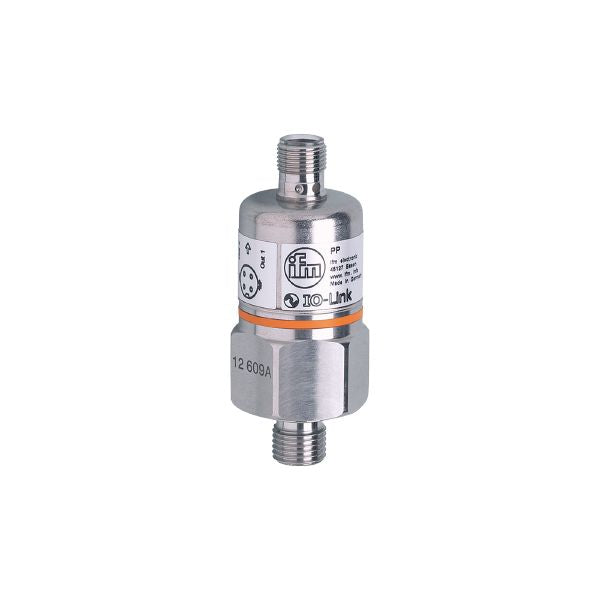

Ifm PP7551 Pressure Switch With Ceramic Measuring Cell
Country Of Origin: Romania
Description:
- Number of digital outputs: 2
- Measuring range: 0...250 bar / 0...3625 psi / 0...25 MPa
- Process connection: threaded connection G 1/4 external thread, internal thread M5
- Application: for industrial applications; for railway applications
- Media: liquids and gases
- Conditionally suitable for: use in gases at pressures > 25 bar only on request
- Medium temperature: -25...90°C
- Min. burst pressure: 850 bar / 12300 psi / 85 MPa
- Pressure rating: 400 bar / 5800 psi / 40 MPa
- Type of pressure: relative pressure
- Operating voltage: 9.6...36 DC (communication mode: 18...32)
- Current consumption: < 45 mA
- Min. insulation resistance: 100 MΩ (500 V DC)
- Protection class: III
- Reverse polarity protection: yes
- Power-on delay time: 0.3 s
-
