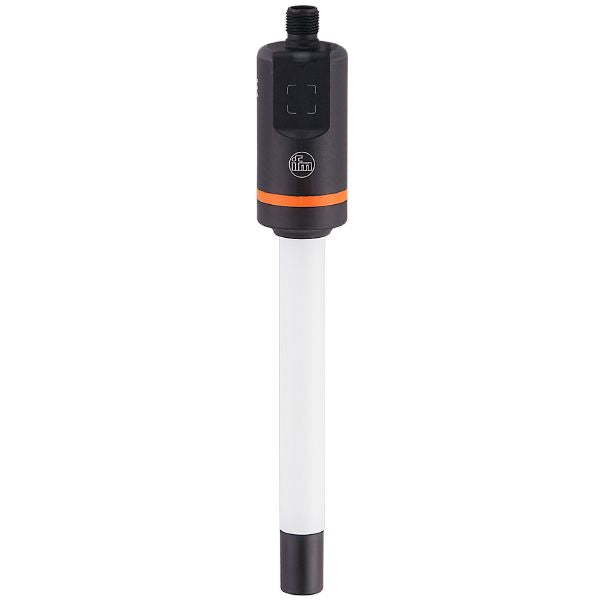

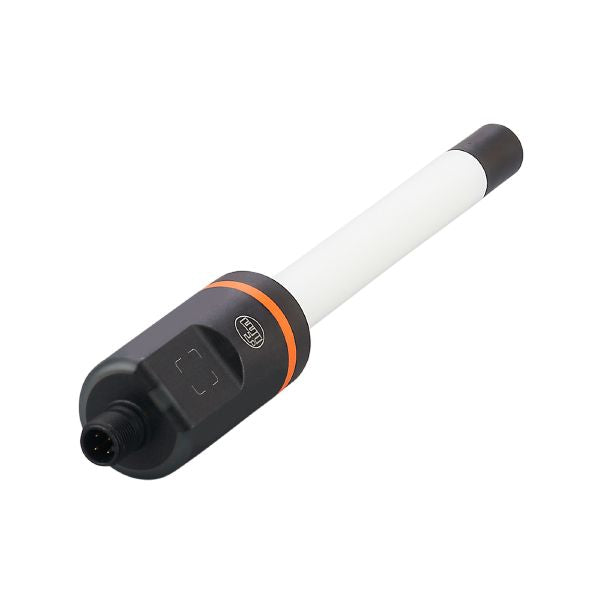

Ifm LI5133 Sensor For Point Level Detection
Ifm LI5133 Sensor For Point Level Detection is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 50% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm LI5133 Sensor For Point Level Detection
Country Of Origin:
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|---|
| Factory setting | water-based media |
| Probe length L [mm] | 481 |
| System | gold-plated contacts |
|---|---|
| Media | Liquids |
| Dielectric constant of the medium | > 1,8 |
| Recommended media | water; water-based media; oils; oil-based media |
| Cannot be used for | See operating instructions, chapter "Intended use". |
| Medium temperature [°C] | -25...85 |
| Pressure rating [bar] | 0.5 |
| Vacuum resistance [mbar] | -500 |
| Operating voltage [V] | 9.6...35 DC; (IO-Link: 18...30 DC) |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 1 |
| Measuring principle | capacitive |
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; IO-Link |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Factory setting | water-based media |
|---|---|
| Probe length L [mm] | 481 |
| Active range A [mm] | 28 |
| Measuring range [°C] | -25...85 |
|---|
| Accuracy [K] | 1,5 |
|---|---|
| Resolution [K] | 0.1 |
| Dynamic response T09 [s] | 240 |
| Response time [s] | < 0.3 |
|---|
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Unterstützte Masterportklasse | A | ||||
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor ED2: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A) | ||||
| SIO mode | yes | ||||
| Process data analog | 5 | ||||
| Process data binary | 2 | ||||
| Min. process cycle time [ms] | 4.5 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...85 |
|---|---|
| Storage temperature [°C] | -25...85 |
| Protection | IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68) |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||
| Vibration resistance |
|
||||||
| MTTF [years] | 433 | ||||||
| UL approval |
|
| Weight [g] | 370.35 |
|---|---|
| Material | PP fiber-reinforced |
| Materials (wetted parts) | PP |
| Probe diameter [mm] | 16 |
| Display |
|
|---|
