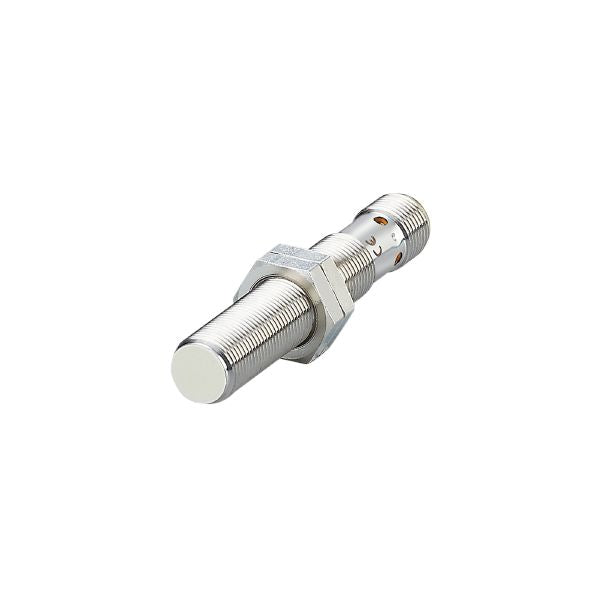

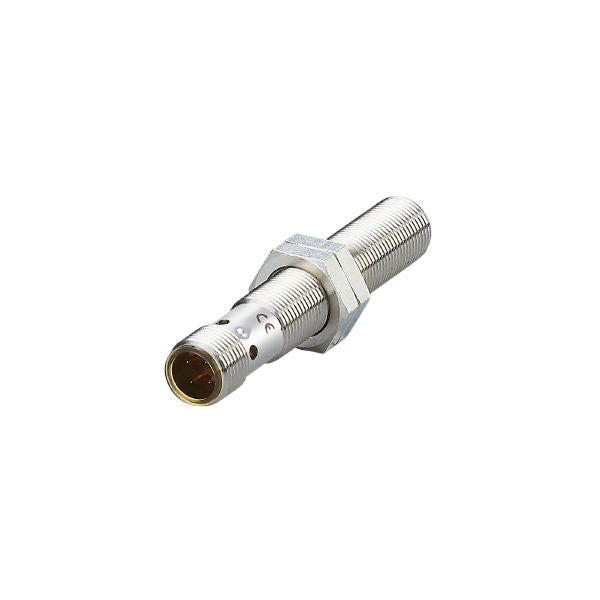

Ifm IFM216 Inductive Sensor
Country Of Origin:
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally closed |
| Sensing range [mm] | 4 |
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 / L = 70 |
| System | gold-plated contacts; Increased sensing range |
|---|---|
| Application | Use in mobile and harsh applications |
| Operating voltage [V] | 10...60 DC |
|---|---|
| Current consumption [mA] | < 10; (only in 3-wire operation) |
| Protection class | II |
| Reverse polarity protection | yes |
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally closed |
| Max. voltage drop switching output DC [V] | 2.5; (100 mA) |
| Minimum load current [mA] | 2; (only in 2-wire operation) |
| Max. leakage current [mA] | 0.5; (only in 2-wire operation) |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 400 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Sensing range [mm] | 4 |
|---|---|
| Operating distance [mm] | 0...3.24 |
| Increased sensing range | yes |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67; IP 69K |
| EMC |
|
||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||||||||||||||||||
| Shock resistance |
|
||||||||||||||||||||||||||
| Continuous shock resistance |
|
||||||||||||||||||||||||||
| Fast temperature changes |
|
||||||||||||||||||||||||||
| Salt spray test |
|
||||||||||||||||||||||||||
| MTTF [years] | 662 | ||||||||||||||||||||||||||
| UL approval |
|
| Weight [g] | 30.1 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 70 |
| Thread designation | M12 x 1 |
| Material | housing: stainless steel; sensing face: LCP natural; LED window: PEI; lock nuts: brass |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12; coding: A; Contacts: gold-plated |
