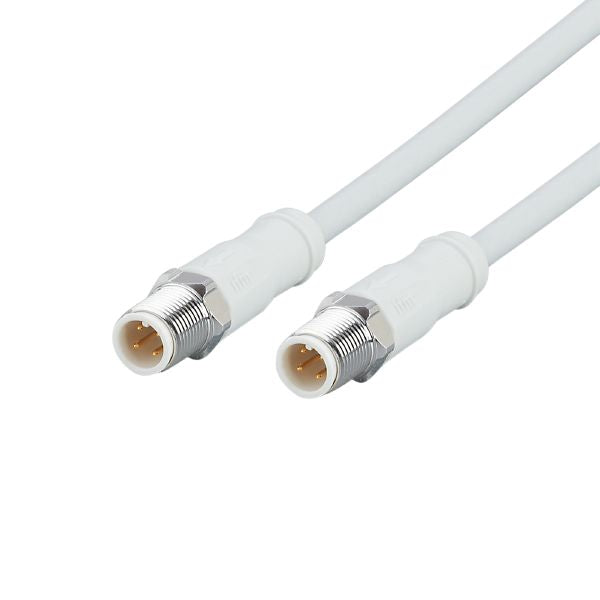

Ifm EVF656 Ethernet Connection Cable
Country Of Origin:
| System | Free from silicone; Halogen-free; gold-plated contacts; screened cable; Drag chain suitability |
|---|---|
| Design | Ethernet cable, D-coded |
| Application | Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; sanitary and wet areas in the food industry |
| Free from silicone | yes |
| Operating voltage [V] | 30 AC / 60 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
| Ambient temperature [°C] | -25...100 | |
|---|---|---|
| Ambient temperature (moving) [°C] | 0...80 | |
| Storage temperature [°C] | -25...55 | |
| Storage humidity [%] | 10...100 | |
| Other climatic conditions for storage according to stated class |
|
|
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Weight [g] | 131.25 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 15.5 x 15.5 x 51.5 | ||||||||
| Material | PP Halogen-free | ||||||||
| Molded-body material | PP | ||||||||
| Material nut | stainless steel (1.4404 / 316L) | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12, straight; coding: D; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: shield connected |
| Connection | Cable: 1.5 m, MPPE, Halogen-free, grey, Ø 6.5 mm, screened; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm ) |
|---|
| Connector: 1 x M12, straight; coding: D; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: shield connected |
