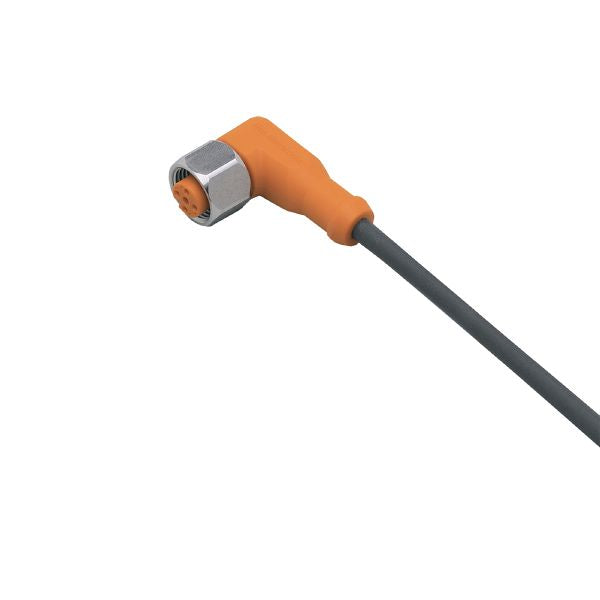

Ifm EVC04A Female Cordset
Country Of Origin:
| System | Halogen-free; gold-plated contacts |
|---|---|
| Compatible with paint | yes |
| Operating voltage [V] | < 60 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 2 |
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 67; (when used outside the hazardous area: IP 68 / IP 69K) |
| Approval | BVS 08 ATEX E 109 U; IECEx BVS 08.0041 U |
|---|---|
| ATEX marking |
|
| Weight [g] | 101.4 |
|---|---|
| Dimensions [mm] | 26.5 x 15.5 x 36.5 |
| Material | housing: TPU (urethane) orange; sealing: FKM |
| Material nut | stainless steel (1.4404 / 316L) |
| Pack quantity | 1 pcs. |
|---|
| Cable: 2 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Connection | Connector: 1 x M12, angled; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 1.2...1.5 Nm |
|---|
