Delock 64265 Converter 1 X Rs-232 To 1 X Rs-422/485
Country Of Origin: China

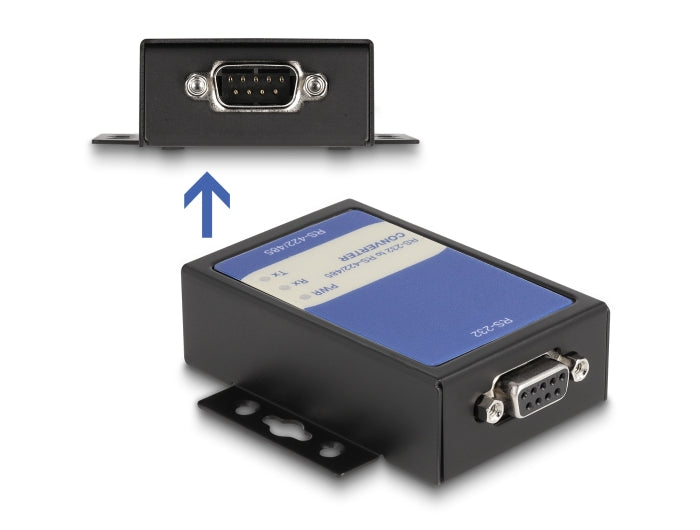

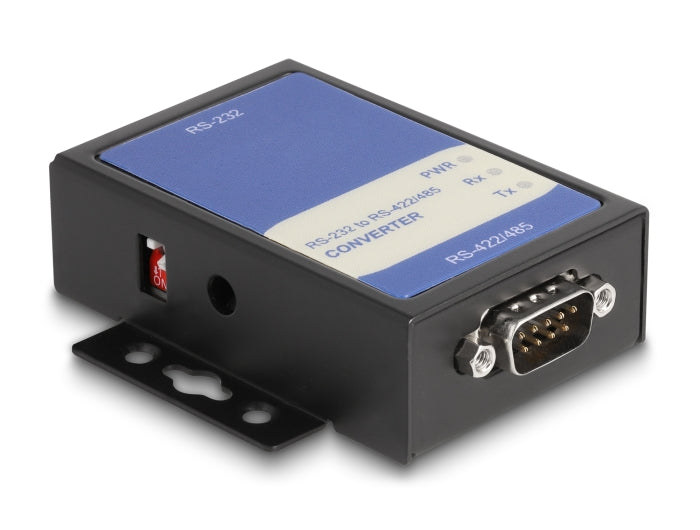

1 x serial RS-232 D-Sub 9 pin female with nuts
1 x serial RS-422/485 D-Sub 9 pin male with nuts
• Modes
2 wire RS-485 (automatic detection)
4 wire RS-422/485 (automatic detection)
4 wire RS-422 (forced)
4 wire RS-422/485 with RTS/CTS option

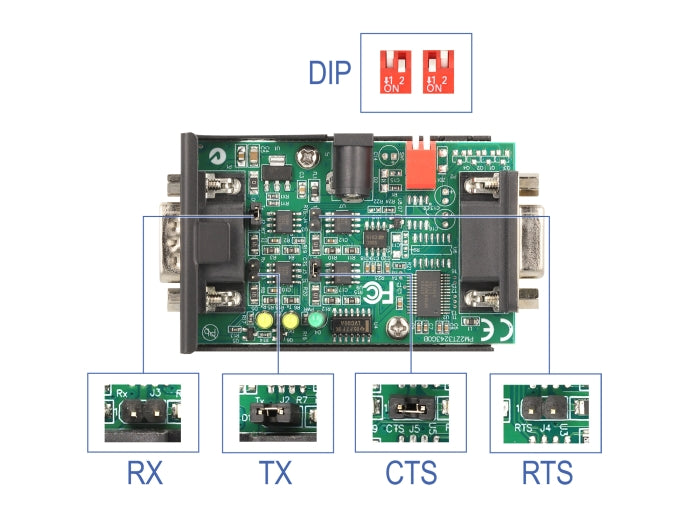

• 2 x DIP switch: operation modes
• Terminators: RS-422/485 and RTS/CTS
• Automatical recognition and switching between RS-422 and RS-485
• Automatical recognition of the data transfer rate up to 921.6 Kbps
• ±15 kV ESD protection on all signal pins
• 3 x LED indicator (RX/TX/PWR)
• Operating temperature: 0 °C ~ 60 °C
• Storage temperature: -10 °C ~ 70 °C
• Relative humidity: 5 - 90 % (non condensing)
• Housing material: metal
• Dimensions (LxWxH): ca. 84.6 x 50.0 x 23.0 mm

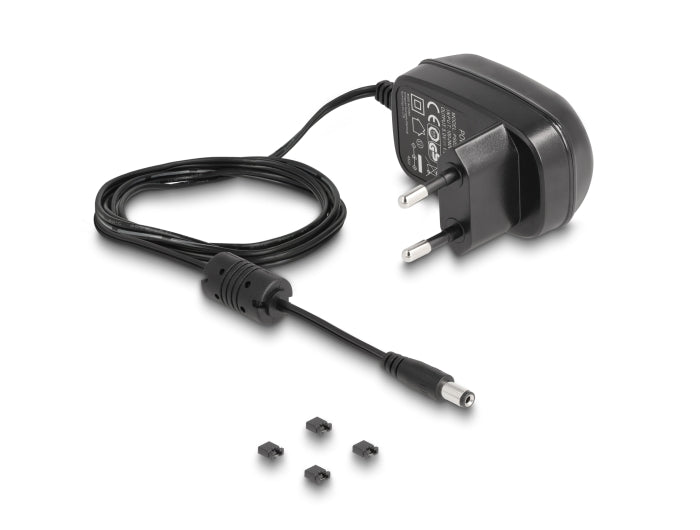

Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5.0 V / 1.0 A / 5.0 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
• Cable length: ca. 153 cm
-
