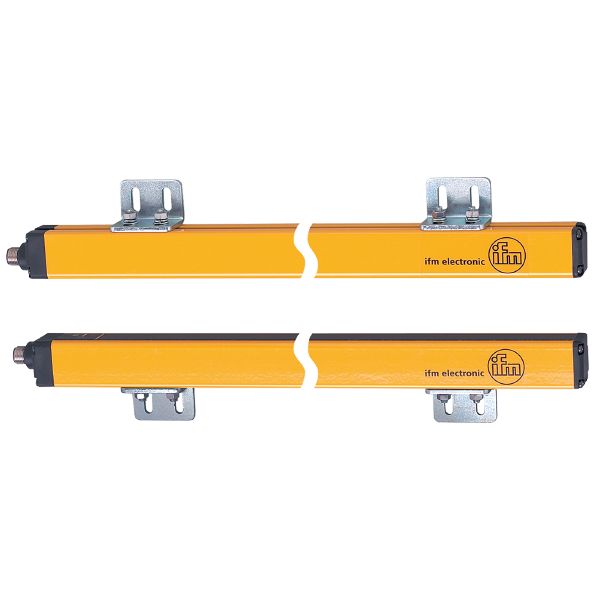

Ifm OY010S Safety Light Curtain
Country Of Origin:
- Operating voltage tolerance: ±20%
- Operating voltage: 24 V DC
- Protection class: III
- Reverse polarity protection: Yes
- Power-on delay time: < 2 seconds
- Type of light: Infrared light
- Wavelength: 950 nm
Receiver:
- Current consumption: 83 mA
Transmitter:
- Current consumption: 42 mA
Outputs:
- Electrical design: PNP
- Number of OSSD outputs: 2
- Max. current load per OSSD output: 400 mA (24 V)
- Short-circuit protection: Yes
Detection zone:
- Protected area height: 1510 mm
- Resolution (detection capacity): 14 mm
- Protection area width (low light intensity): 0 to 3 meters
- Protection area width (high light intensity): 1 to 6 meters
Response times:
- Response time: 20 ms
Operating conditions:
- Applications: Class C to EN 60654-1 weatherproof application
- Ambient temperature: -10 to 55°C
- Max. relative air humidity: 95%
- Protection: IP 65; IP 67
