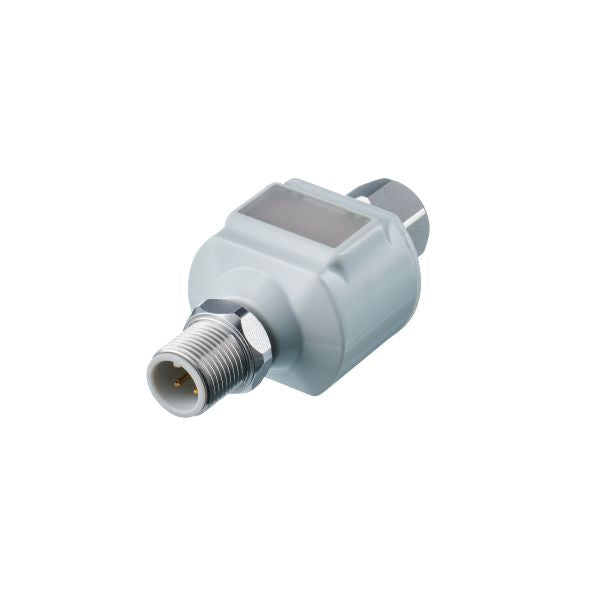

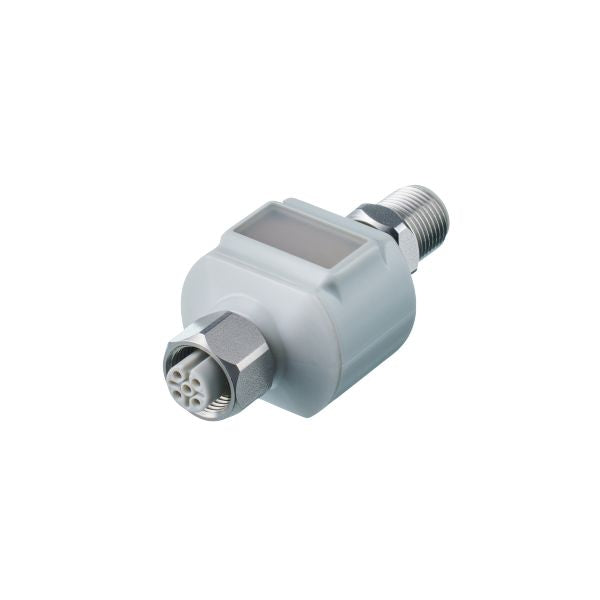

Efector IFM DP4122 Speed Monitor Io-Link - 0...2000 Hz
Country Of Origin:
| Number of inputs and outputs | Number of digital inputs: 1; Number of digital outputs: 2 |
|---|---|
| Communication interface | IO-Link |
| Measuring range [Hz] | 0.1...2000 |
|---|
| Measuring range [U/min] | 1...120000 |
|---|
| Application | decentralized evaluation unit for speed monitoring and display; for use in wet environments; indoor use |
|---|
| Operating voltage [V] | 18...30 DC; ((in wet environments: 18...28 V) to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 380 |
| Max. current load total [A] | 0.2 |
| Number of inputs and outputs | Number of digital inputs: 1; Number of digital outputs: 2 |
|---|
| Number of digital inputs | 1; (IEC61131-2) |
|---|---|
| Input current limitation [mA] | 200 |
| Electrical design | PNP/NPN |
|---|---|
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Short-circuit proof | yes |
| Measuring range [Hz] | 0.1...2000 |
|---|
| Measuring range [U/min] | 1...120000 |
|---|
| Hysteresis [%] | 0.5...100 |
|---|
| Communication interface | IO-Link | ||||||
|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||
| IO-Link revision | 1.1 | ||||||
| SDCI standard | IEC 61131-9 | ||||||
| Profiles | Smart Sensor: Measuring Sensor (High resolution, Disable function); Identification and Diagnosis; Switching Signal Channel; Adjustable Switching Signal Channel | ||||||
| SIO mode | yes | ||||||
| Required master port class | A | ||||||
| Process data binary | 1 | ||||||
| Min. process cycle time [ms] | 4.3 | ||||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -25...60 | |||
|---|---|---|---|---|
| Note on ambient temperature |
|
|||
| Storage temperature [°C] | -25...70 | |||
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) | |||
| Max. height above sea level [m] | 4000 | |||
| Protection | IP 67; IP 69K | |||
| Degree of soiling | 2 |
| MTTF [years] | 317 |
|---|
| Weight [g] | 77.3 |
|---|---|
| Weight (without accessories and packaging) [g] | 28 |
| Dimensions [mm] | 63 x 30 x 24.5 |
| Material | housing: PA |
| Material nut | stainless steel (1.4404 / 316L) |
| Sealing material | FKM |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); sealing: FKM |
| Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L) |
