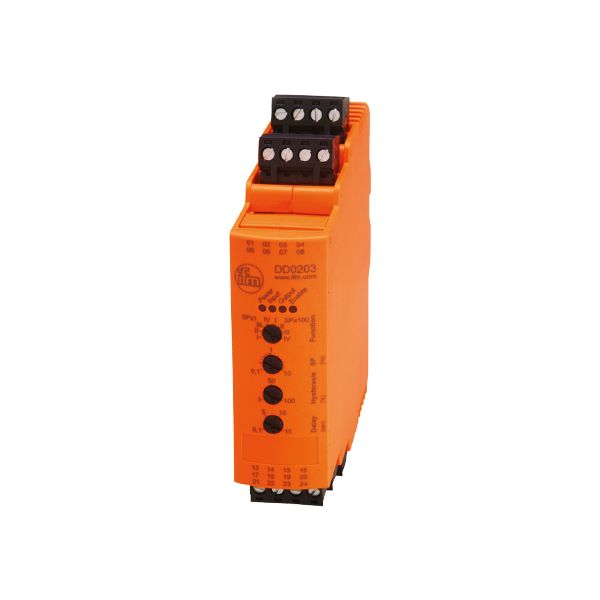

Efector IFM DD0203 Evaluation Unit For Speed Monitoring
Efector IFM DD0203 Evaluation Unit For Speed Monitoring is backordered and will ship as soon as it is back in stock.
As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 30% tariff.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Efector IFM DD0203 Evaluation Unit For Speed Monitoring
Country Of Origin:
| Housing | housing for DIN rail mounting |
|---|---|
| Dimensions [mm] | 93 x 25.4 x 109.1 |
| Application | universal evaluation of pulse sequences with regard to overspeed and underspeed; Rotational speed monitoring |
|---|
| Operating voltage tolerance 2 [%] | > 20 |
|---|---|
| Nominal voltage AC [V] | 110...240 |
| Nominal voltage DC [V] | 27 |
| Nominal voltage tolerance [%] | > 20 |
| Nominal voltage tolerance 2 [%] | 20...10 |
| Nominal frequency AC [Hz] | 50...60 |
| Insulation rating [V] | 9 |
| Max. power consumption AC [W] | 6 |
| Max. power consumption DC [W] | 4 |
| Auxiliary energy for sensors DC [V] | 18.5...30; (SELV, ≤ 100 mA) |
| Number of inputs and outputs | Number of digital outputs: 1; Number of relay outputs: 1 |
|---|
| Number of digital outputs | 1 |
|---|---|
| Number of relay outputs | 1 |
| Contact rating | 4 A (240 V AC); 6 A (30 V DC); (resistive load) |
| Short-circuit proof | yes |
| Setting range Hz [Hz] | 0.1...1000 |
|---|
| Hysteresis [% of Sr] | 1...100 |
|---|
| Start-up delay [s] | 0.1...15 |
|---|
| Adjustment of the switch point | potentiometer |
|---|
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Max. relative air humidity [%] | 80; (40 °C: 50 % non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
| Degree of soiling | 2; (≤ 240 V AC) |
| Approval | UL: N001 |
|---|---|
| MTTF [years] | 212 |
| Weight [g] | 242 |
|---|---|
| Housing | housing for DIN rail mounting |
| Type of mounting | rail; (TH35 EN 60715) |
| Dimensions [mm] | 93 x 25.4 x 109.1 |
| Material | plastics: PC-GF20 |
| Display |
|
|---|
| Items supplied |
|
|---|
| Connection | pin headers: 4 x ; Spacing: 5.0 mm |
|---|
