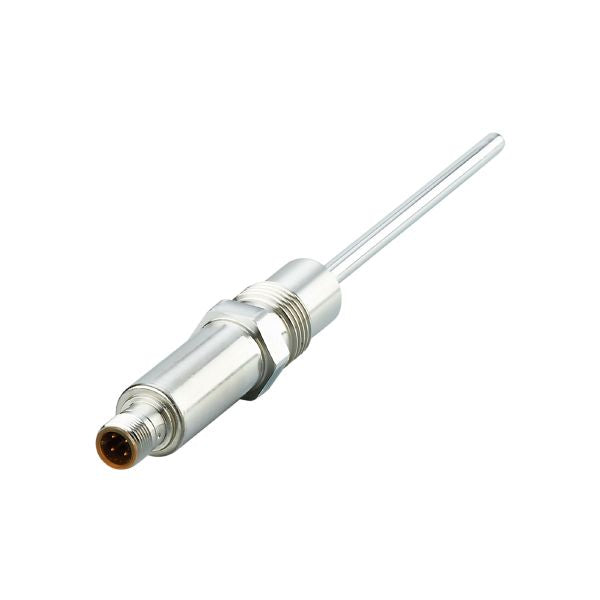

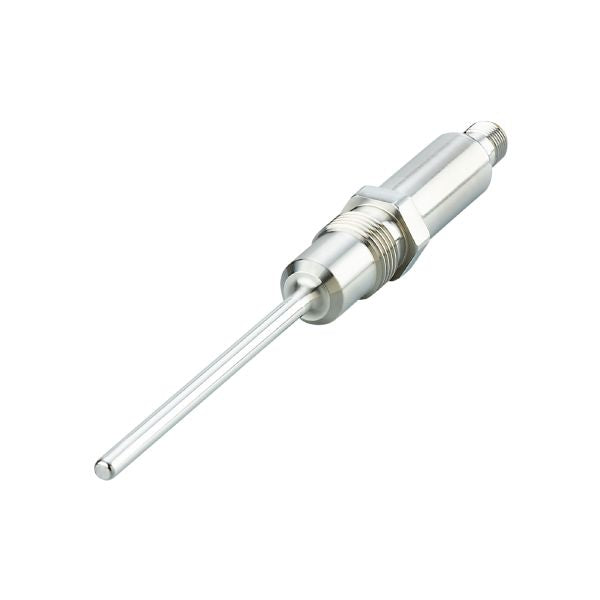

Ifm TA2531 Temperature Transmitter, 160 BAR/ 16 MPa Pressure Rating
Country Of Origin: U.S.A.
Description:
- Number Of Analogue Outputs: 1
- Measuring Range: -50...200°C
- Communication Interface: IO-Link
- Process Connection: Threaded Connection G 1/2 External Thread Sealing Cone
- Installation Length EL: 100 mm
- Measuring Element: 1 x Pt 1000 (To DIN EN 60751, Class A)
- Media: Liquids And Gases
- Pressure Rating: 160 bar / 16 MPa
- Vacuum Resistance: -1000 mbar / -0.1 MPa
- MAWP For Applications According To CRN: 160 bar
- Operating Voltage: 18...32 DC V ("Supply Class 2" To cULus)
- Current Consumption: < 50 mA
- Protection Class: III
- Reverse Polarity Protection: Yes
- Power-On Delay Time: 2 s
- Total Number Of Outputs: 1
- Output Signal: Analogue Signal; IO-Link (Configurable)
- Analogue Current Output: 4...20 mA
- Max. Load: 250 Ω (18...19 V); 300 Ω (19...32 V)
- Short-Circuit Protection: Yes
- Overload Protection: Yes
- Probe Length L: 100 mm
- Factory Setting: -10...150°C
-
