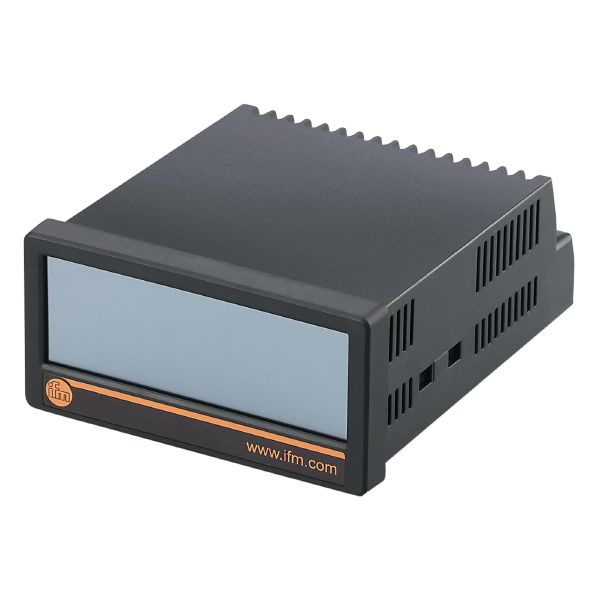

Ifm DX2032 Multifunction Display For Monitoring Revolution, Speed A...
Country Of Origin:
| Dimensions [mm] | 48 x 112 x 116 |
|---|
| Application | universal evaluation and display for all physical units which can be derived from pulse sequences |
|---|
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | 100 |
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 4; Number of analog outputs: 1 |
|---|
| Number of digital inputs | 2 |
|---|
| Number of digital outputs | 4 |
|---|---|
| Number of analog outputs | 1 |
| Analog current output [mA] | 0...20 |
| Max. load [Ω] | 270 |
| Analog voltage output [V] | -10...10 |
| Precision analog output [%] | 0,1 |
| Overload protection | yes |
| Resolution of analog output | 16 bit |
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Protection | IP 65 |
| Protection rating terminals | IP 20 |
| EMC |
|
|---|
| Weight [g] | 302.5 |
|---|---|
| Type of mounting | panel cutout: 91 x 43 mm |
| Dimensions [mm] | 48 x 112 x 116 |
| Material | Noryl UL94-V-0 |
| Display |
|
|---|
| Connection | screw terminals: |
|---|
