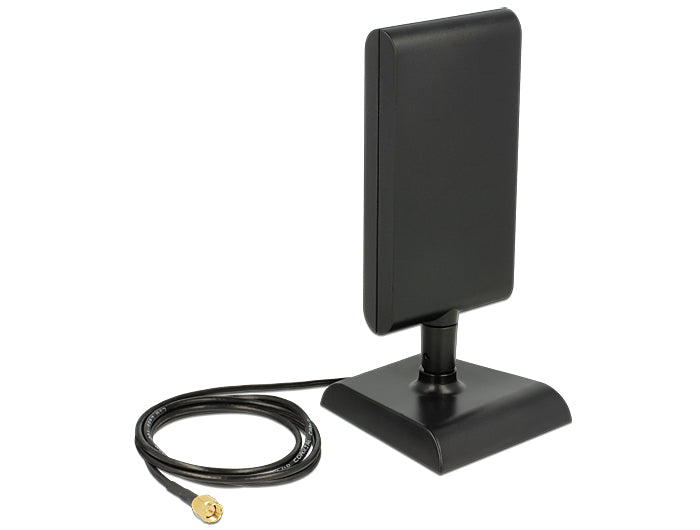

Delock 88992 Lte Antenna Sma Plug 2 - 4 Dbi Omnidirectional
Country Of Origin: China
• LTE band: 1-10, 12, 13, 17-20, 25-27, 29, 33-39

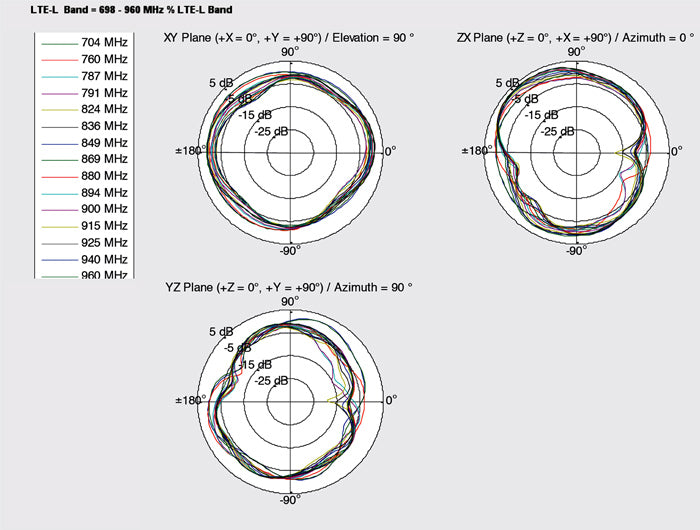

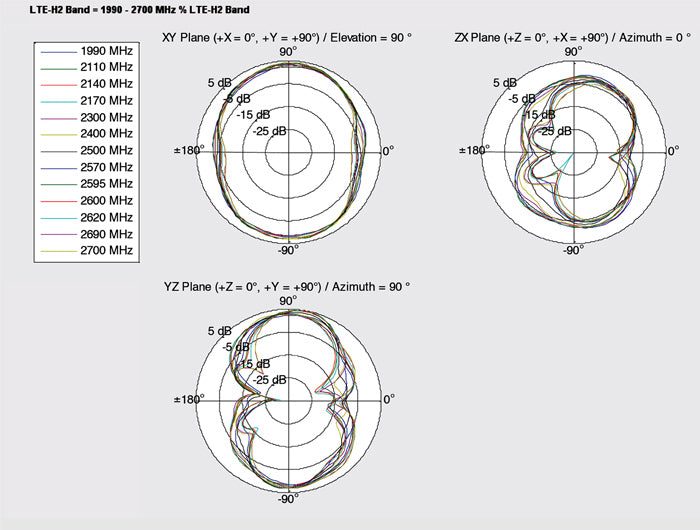

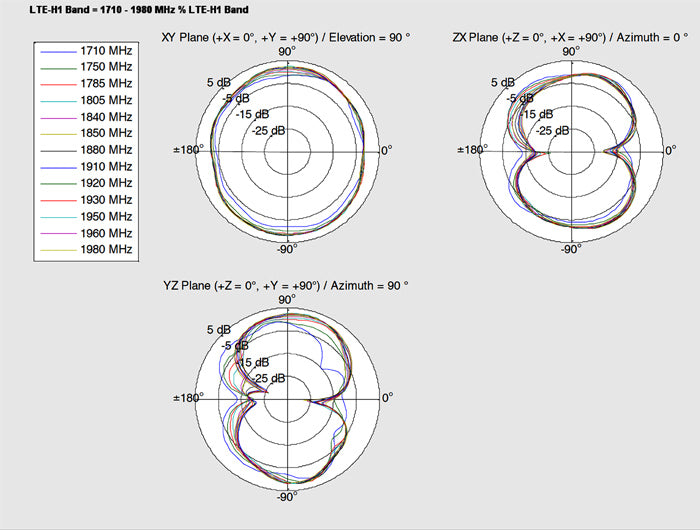

• Frequency range:
698 - 787 MHz
791 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
• Compatible to GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 2 - 4 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Horizontal beam angle: 360°

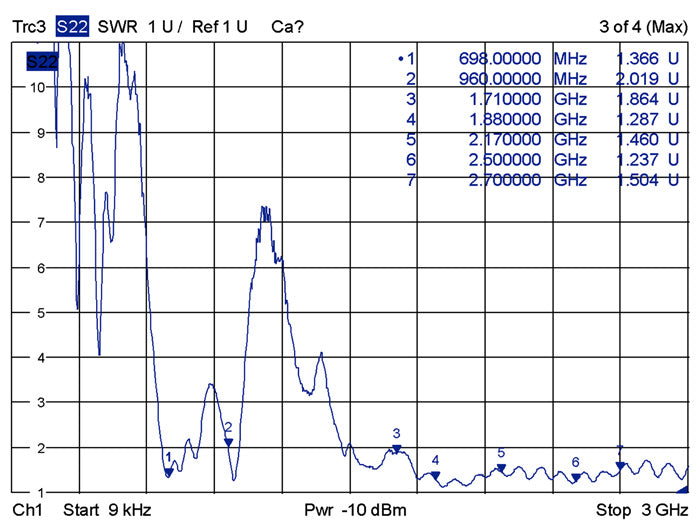

• VSWR: 2.0 - 4.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Antenna length including magnetic base: ca. 16.2 cm
• Features of the base:
magnetic on the bottom
rubberized bottom
wall mountable
• Cable: coaxial
• Cable type: ULA 100
• Cable colour: black
• Cable Attenuation: 1.4 dB @ 2.500 GHz per meter
• Cable diameter: ca. 2.79 mm
• Cable length: ca. 1 m

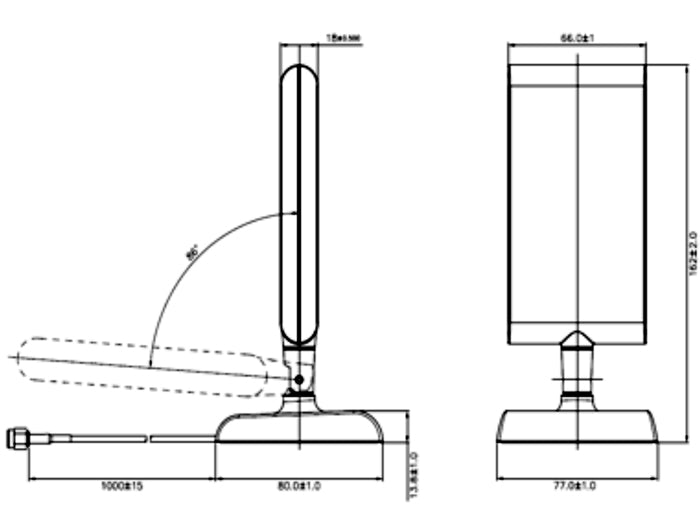

• Dimensions:
antenna (LxWxH): ca. 162 x 66 x 18 mm
base (LxWxH): ca. 80 x 77 x 15 mm
-
