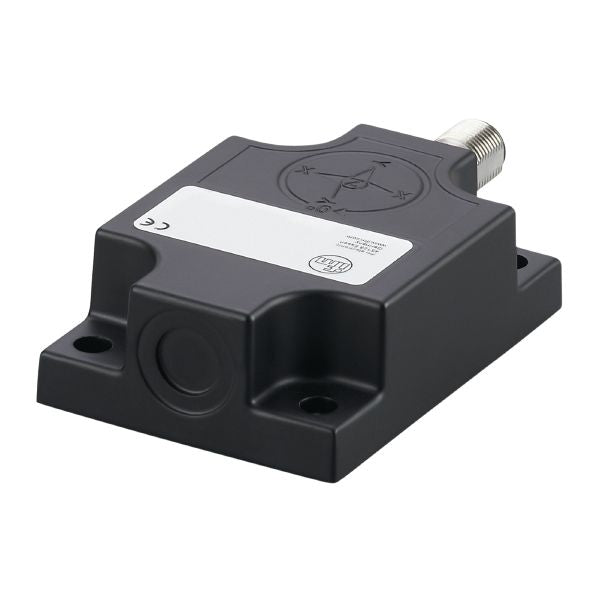

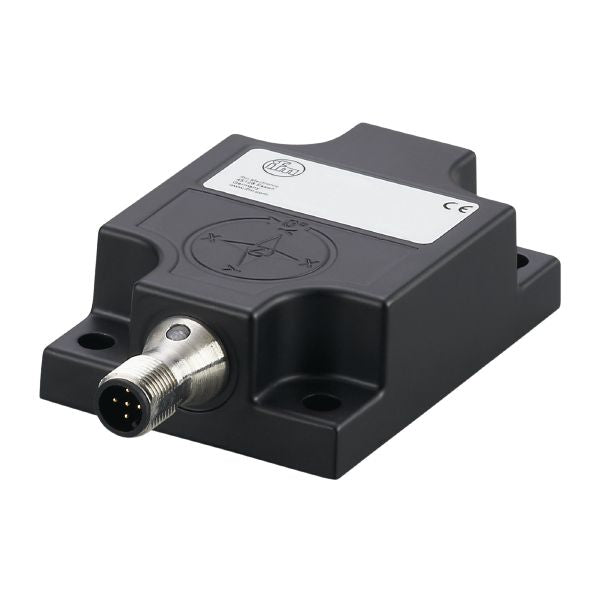

Ifm JD1111 Inclination Sensor
Country Of Origin:
| Measuring principle | MEMS capacitive; (Accelerometer ; gyroscope) |
|---|---|
| Number of measurement axes | 1; (Z) |
| Communication interface | CAN |
| Angular range [°] | 0...360 |
|---|
| Function principle | dynamic |
|---|---|
| Application | High-precision inclination measurement in dynamic applications |
| Operating voltage [V] | 9...30 DC |
|---|---|
| Current consumption [mA] | < 65; (9 ... 30 V DC) |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Reverse polarity protection | yes |
| Measuring principle | MEMS capacitive; (Accelerometer ; gyroscope) |
|---|---|
| Number of measurement axes | 1; (Z) |
| Angular range [°] | 0...360 |
|---|---|
| Measuring range acceleration [g] | ± 4 |
| Measuring range vehicle yaw rate [°/s] | ± 500 |
| Hysteresis [°] | ≤ ± 0,05 |
|---|---|
| Repeatability [°] | ± 0,05 |
| Resolution [°] | 0.01; (configurable) |
| Temperature coefficient [1/K] | ≤ ± 0,008° |
| Accuracy [°] | ± 0,5 |
|---|
| Accuracy [°] | ± 0,3 |
|---|
| Communication interface | CAN |
|---|---|
| Number of CAN interfaces | 1 |
| Terminating resistor | yes; (internal ; configurable) |
| Protocol | CANopen | ||
|---|---|---|---|
| Factory settings |
|
||
| Version | CiA DS301 V4.2.0; DSP-410 V2.0.0; CiA 306 V1.3.0 |
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 67; IP 68; IP 69K |
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 260 |
| Weight [g] | 197.5 |
|---|---|
| Dimensions [mm] | 27 x 59 x 105.3 |
| Material | housing: diecast aluminium black; potting compound: polyurethane resin |
| Mounting orientation | vertical |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connector: 1 x M12; coding: A |
|
measuring and installation direction
|
|
|---|
