Ifm | SKU: SEN-0037-E | Barcode: 4021179085243

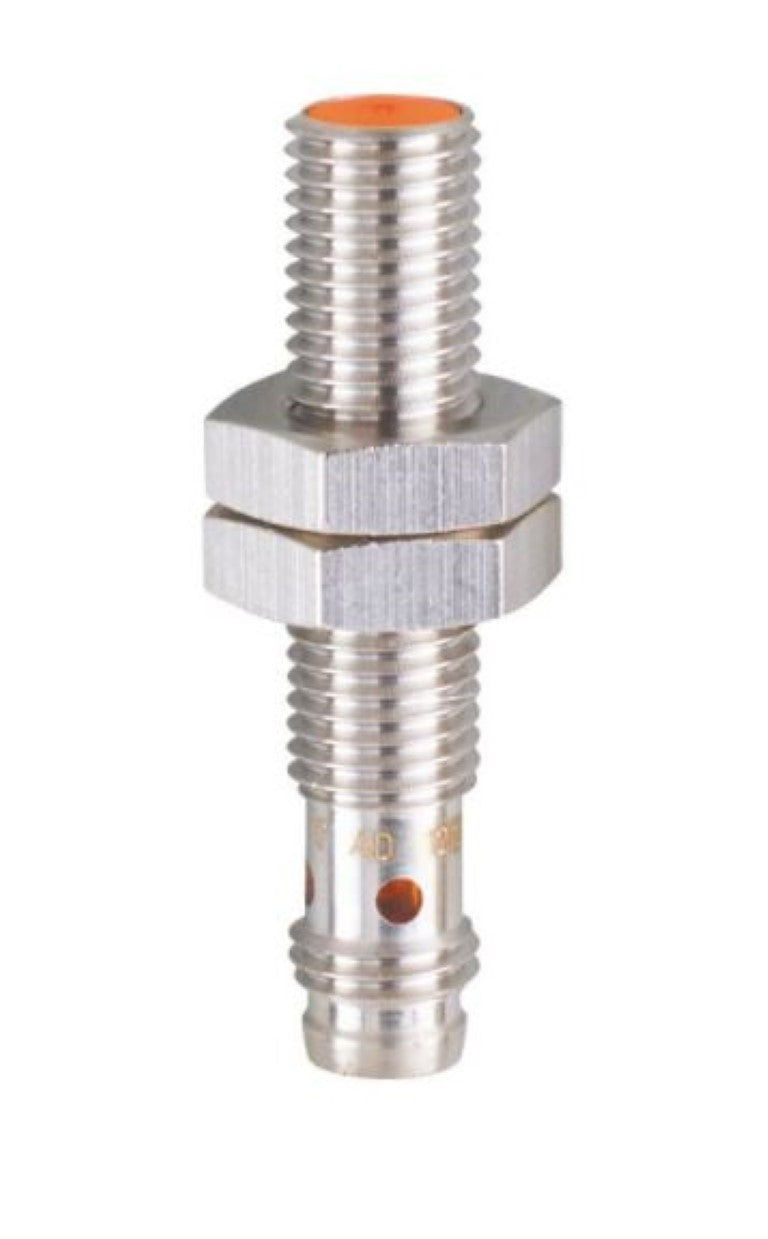

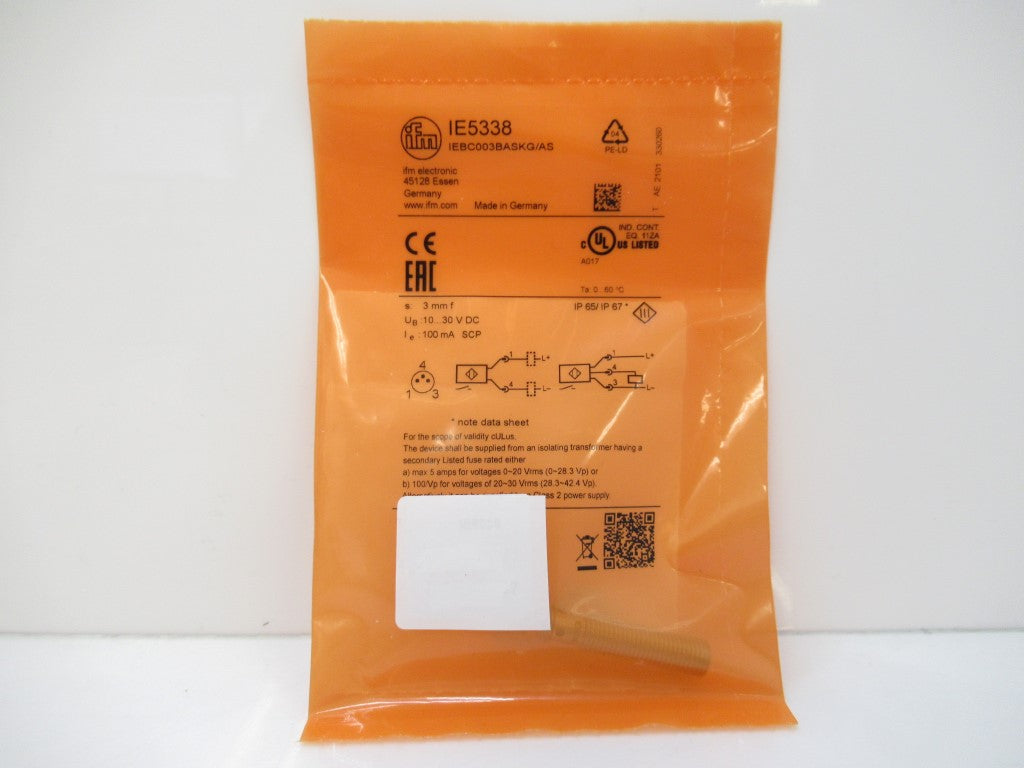

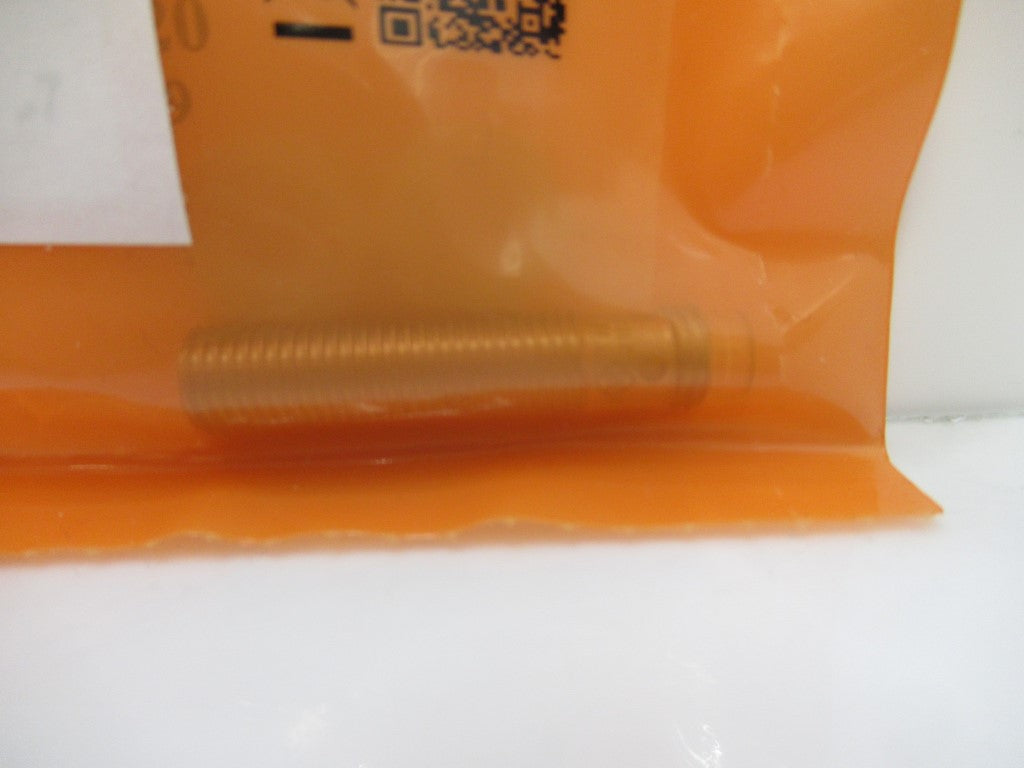

Ifm Electronic IE5338 IEBC003BASKG/AS Inductive Sensor

$62⁰⁰ CAD

Shipping calculated at checkout.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Being a Canadian company, our U.S. shipments are subject to tariffs. Under DDP (Delivered Duty Paid), all applicable tariffs and fees are calculated and paid upfront at checkout.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin: Germany

Description:

Electrical Design: PNP/NPN
Output Function: Normally Open
Sensing Range: 3 mm
Housing: Threaded Type
Dimensions: M8 x 1 / L = 40 mm
Operating Voltage: 10...30 DC V
Protection Class: III
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output DC: 3.5 V
Minimum Load Current: 2 mA (Only In 2-Wire Operation)
Max. Leakage Current: 0.5 mA (Only In 2-Wire Operation)
Permanent Current Rating Of Switching Output DC: 100 mA
Switching Frequency DC: 800 Hz
Short-Circuit Protection: Yes
Overload Protection: Yes
Real Sensing Range Sr: 3 ± 10%
Operating Distance: 0...2.4 mm
