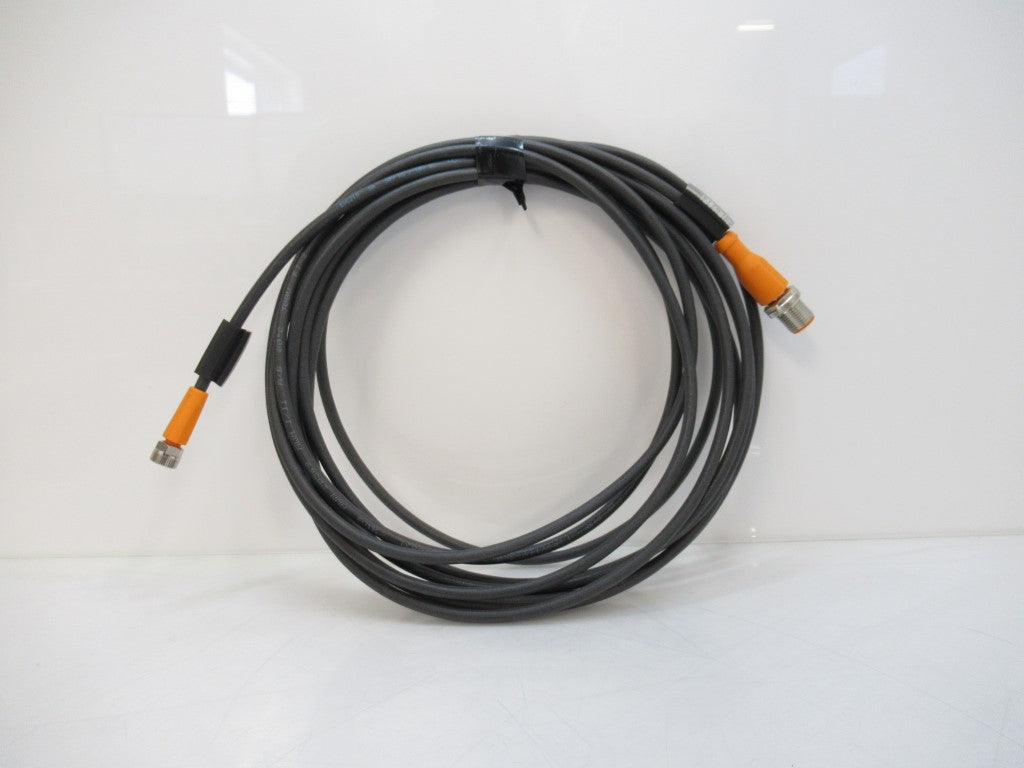

Ifm Electronic EVC219 Connection Cable For Sensors, M12, M8 Straight
Country Of Origin: Country Not Available
EVC219
VDOGF030MSS0005H03STGH030MSS
Ifm Electronic
5 m Pur-Cable; M12 / M8 Connector
- Resistant To Oils And Coolants
- Permanent, Reliable Sealing Even When Mounted Without Tools
- High Protection Rating For The Requirements Of Harsh Industrial Environments
- Vibration And Shock Resistant Thanks To Coupling Ring With Locking Mechanism
- Mechanical End Stop To Protect The O-Ring From Destruction
Description
- System: Free From Silicone; Halogen-Free; Gold-Plated Contacts; Drag Chain Suitability
- Free From Silicone: yes
Electrical Data
- Operating Voltage [V]: < 50 AC / < 60 DC
- Protection Class: III
- Max. Current Load Total [A]: 3
Operating Conditions
- Ambient Temperature [°C]: -25...90
- Note On Ambient Temperature: cULus: ...75
- Ambient Temperature (Moving) [°C]: -25...90
- Note On Ambient Temperature (Moving): cULus: ...75
- Protection: IP 65; IP 67; IP 68; IP 69K
Electrical Connection

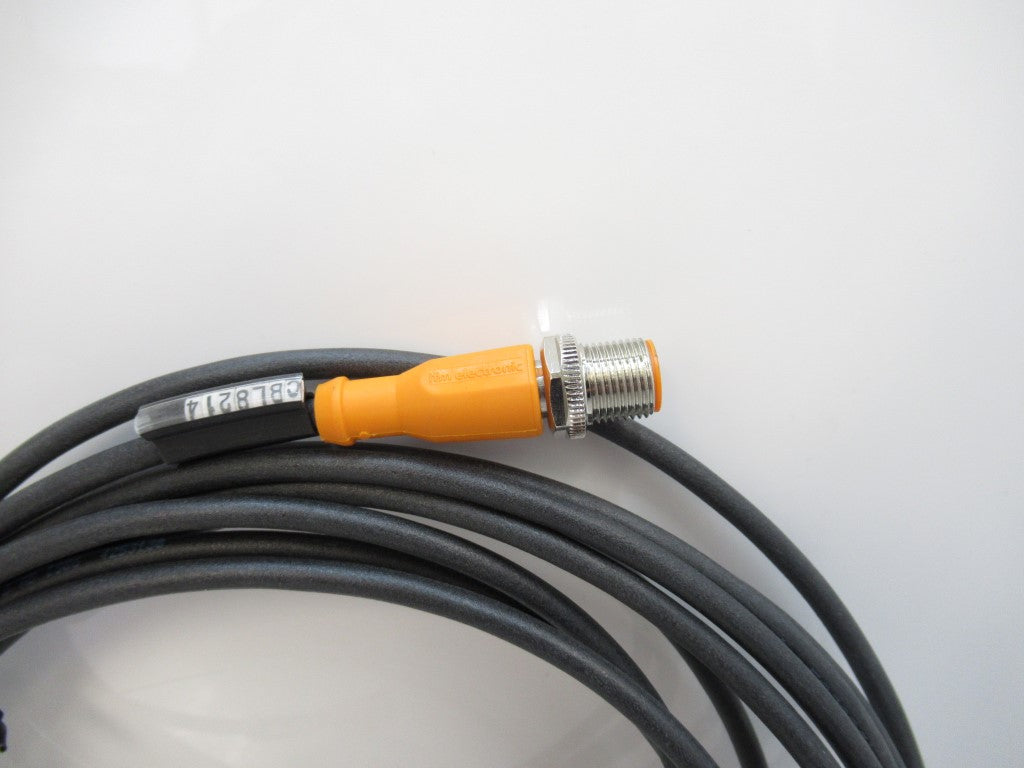

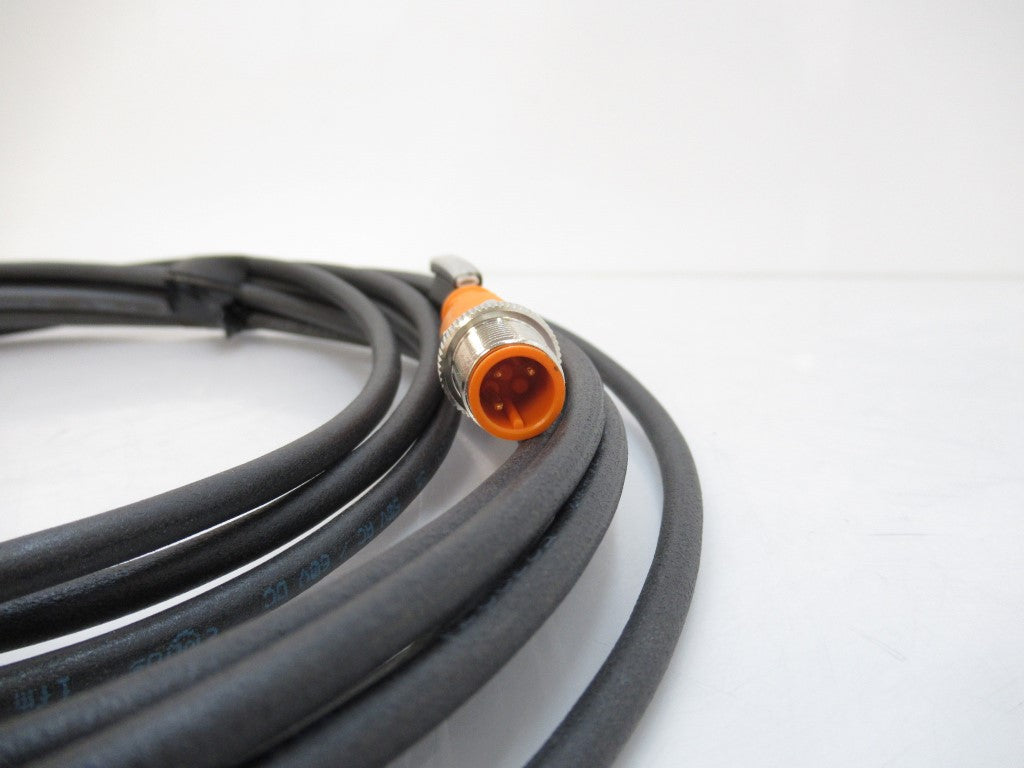

- Plug Connector: 1 x M12, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.6...1.5 Nm
- Connection Cable: 5 m, PUR, Halogen-Free, Black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

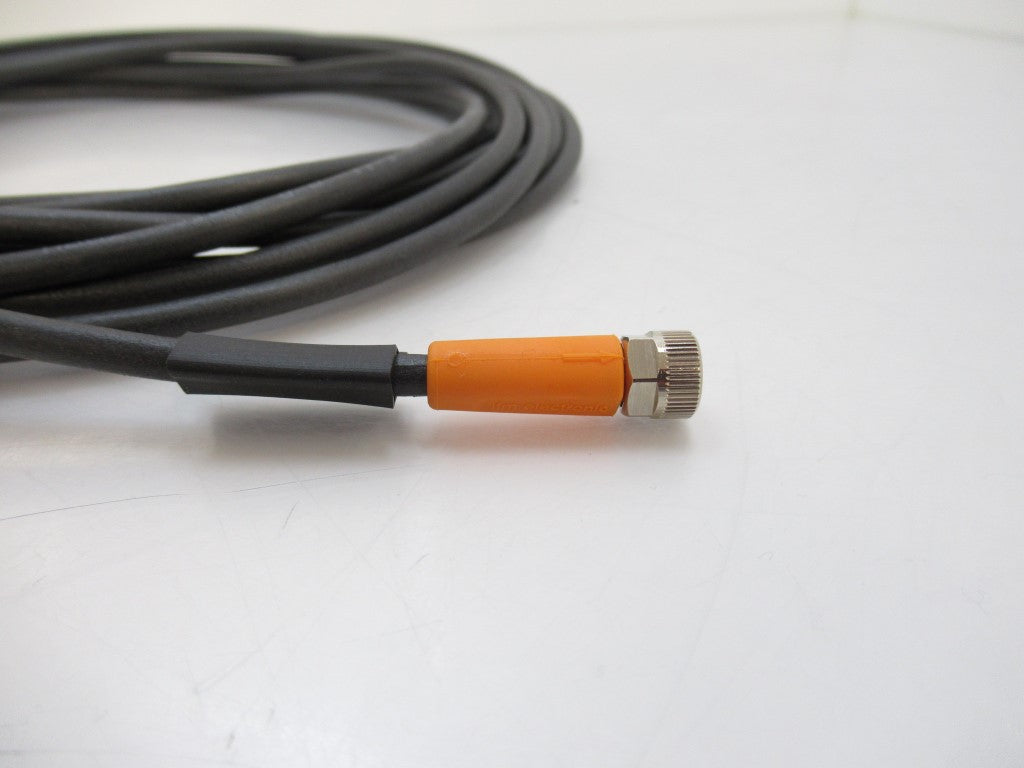

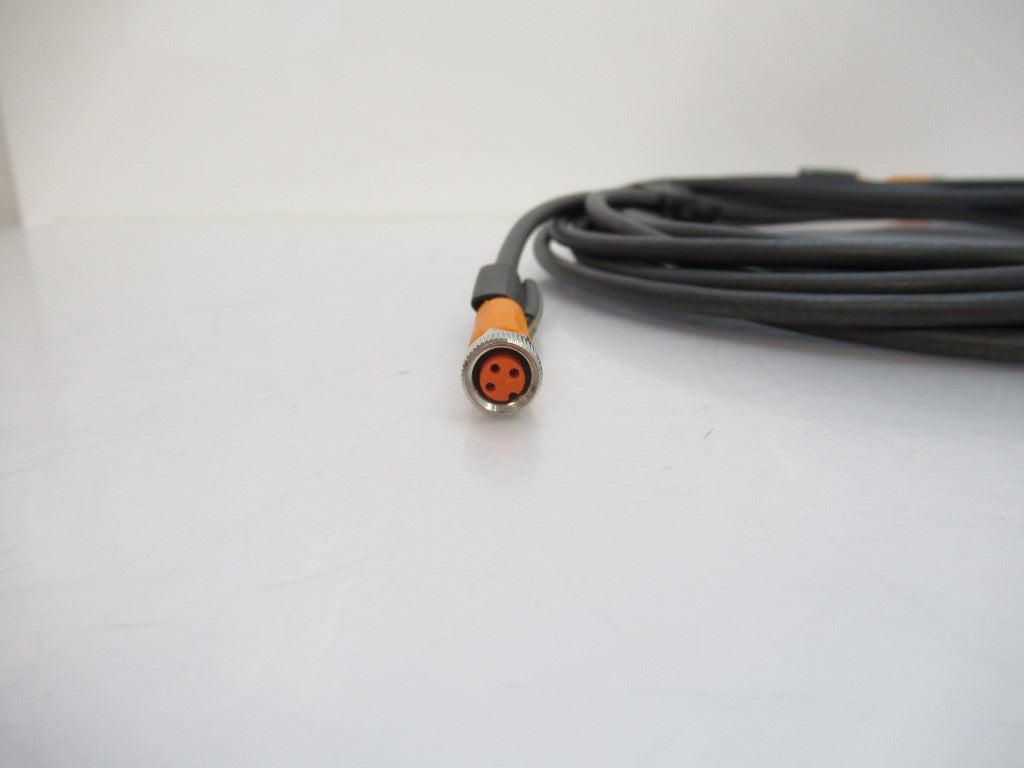

- Socket Connector: 1 x M8, Straight; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.3...0.5 Nm
-
