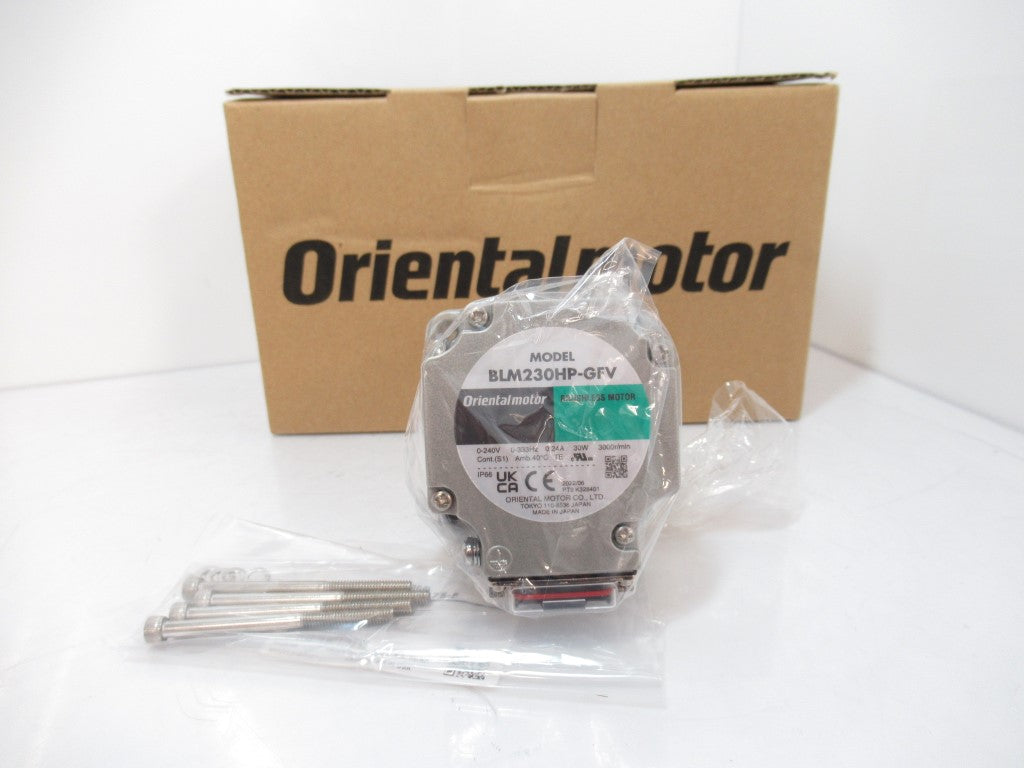

BLM230HP-30AS GFV2G30AS Orientalmotor Brushless DC Motor 30W
BLM230HP-30AS GFV2G30AS Orientalmotor Brushless DC Motor 30W is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 50% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 50% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Country Of Origin:
Product Information
BLM230HP30AS / GFV2G30AS
Motor Type |
Brushless DC Motor |
Motor Frame Size |
2.36 in. |
Output Power |
30 W (1/25 HP) |
Power Input |
AC |
Shaft/Gear Type |
Parallel Shaft Gearhead |
Gear Ratio (X:1) |
30 :1 |
Output Shaft Diameter |
3/8 inch |
Rated Torque |
27 lb-in |
Electromagnetic Brake |
Not Equipped |
Variable Speed Range (r/min) |
2.7 ~ 133 |
Permissible Load Inertia |
2000 oz-in²*When instantaneous stop or instantaneous bi-directional operation is performed = 310 oz-in² |
Permissible Radial Load |
0.39 in. from Shaft End = 45 lb0.79 in. from Shaft End = 67 lb |
Permissible Axial Load |
9 lb |
Components |

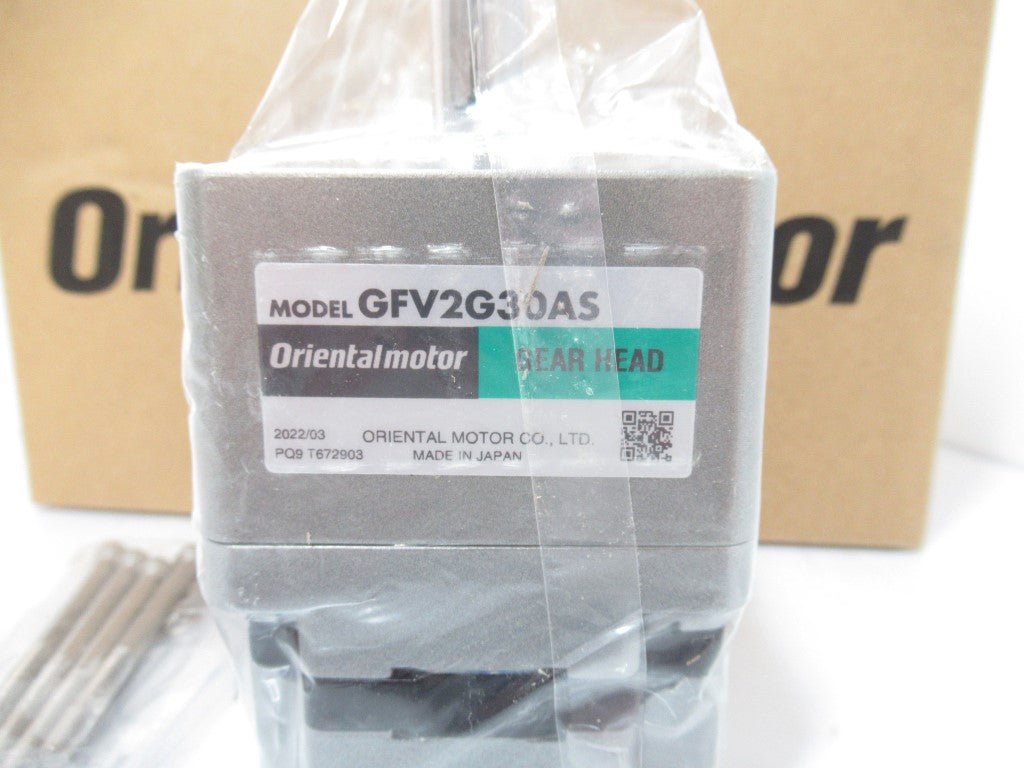

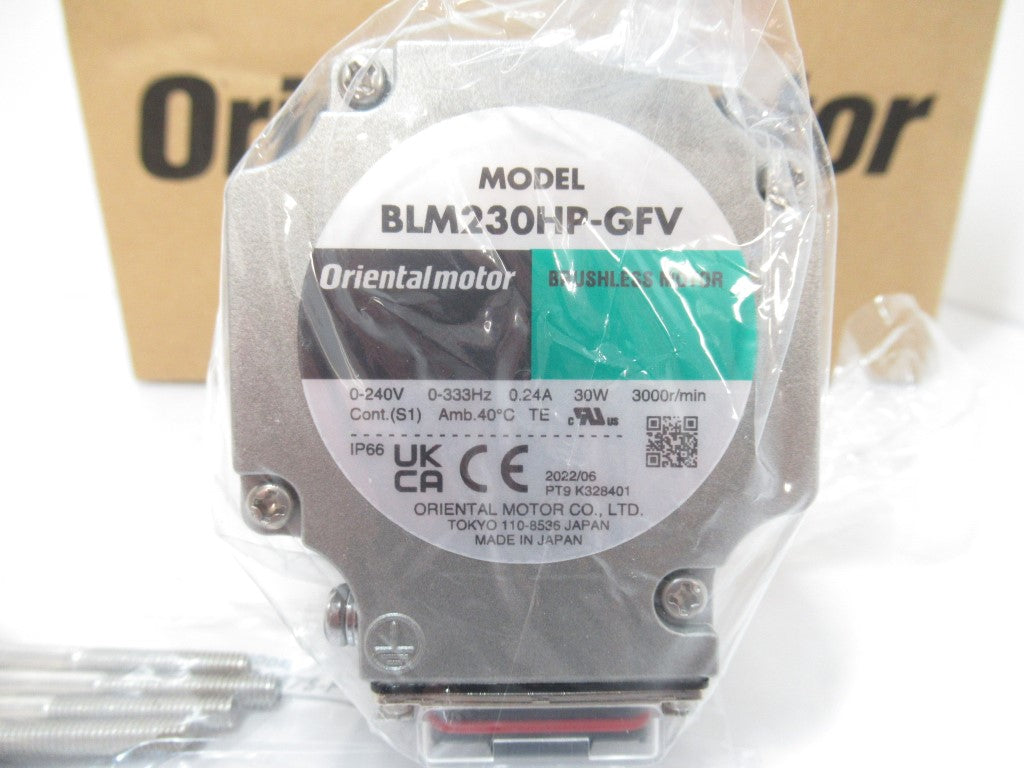

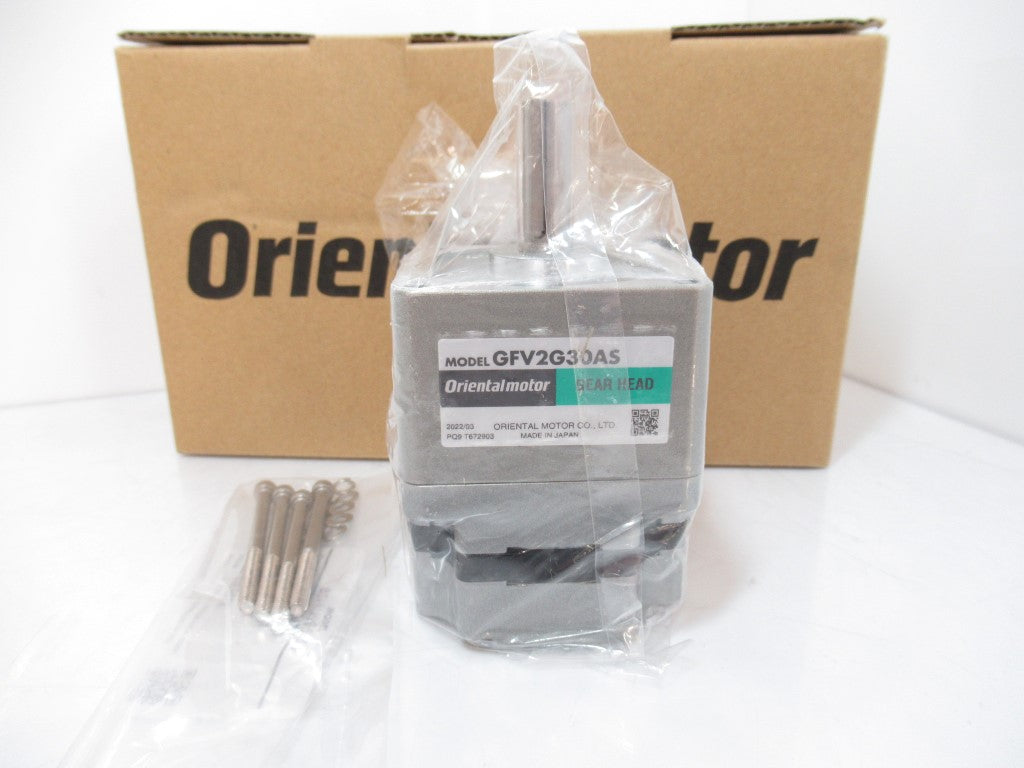

BLM230HP-GFV [Motor] GFV2G30AS [Gearhead] |
RoHS Compliant |
These products do not contain substances that exceed the regulation values in the RoHS Directive. |
Safety Standards |
ULCSACE |
CE Marking |
Low Voltage DirectivesEMC Directives |
Insulation Resistance (Motor) |
100 MΩ or more when 500 VDC megger is applied between the windings and the case after continuous operation under normal ambient temperature and humidity. |
Dielectric Strength (Motor) |
Sufficient to withstand 1.5 kVAC at 50 Hz applied between the windings and the case for 1 minute after continuous operation under normal ambient temperature and humidity. |
Temperature Rise (Motor) |
The temperature rise of the windings is 90ºF (50ºC) and that of the case is 72ºF (40ºC) when measured by the thermocouple method after rated continuous operation under normal ambient temperature and humidity. |
Ambient Temperature Range |
Motor: 32ºF ~ 104ºF (0ºC ~ 40ºC), nonfreezing Driver: 32ºF ~ 122ºF (0ºC ~ 50ºC) |
Ambient Humidity |
85% or less, non-condensing |
Altitude |
Up to 3300 ft (1000 m) above sea level. |
Operating Atmosphere |
No corrosive gases or dust. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments. |
Thermal Class |
CSA standards: 105 (A), EN standards: 120 (E)UL |
Degree of Protection |
Motor: IP66 |
