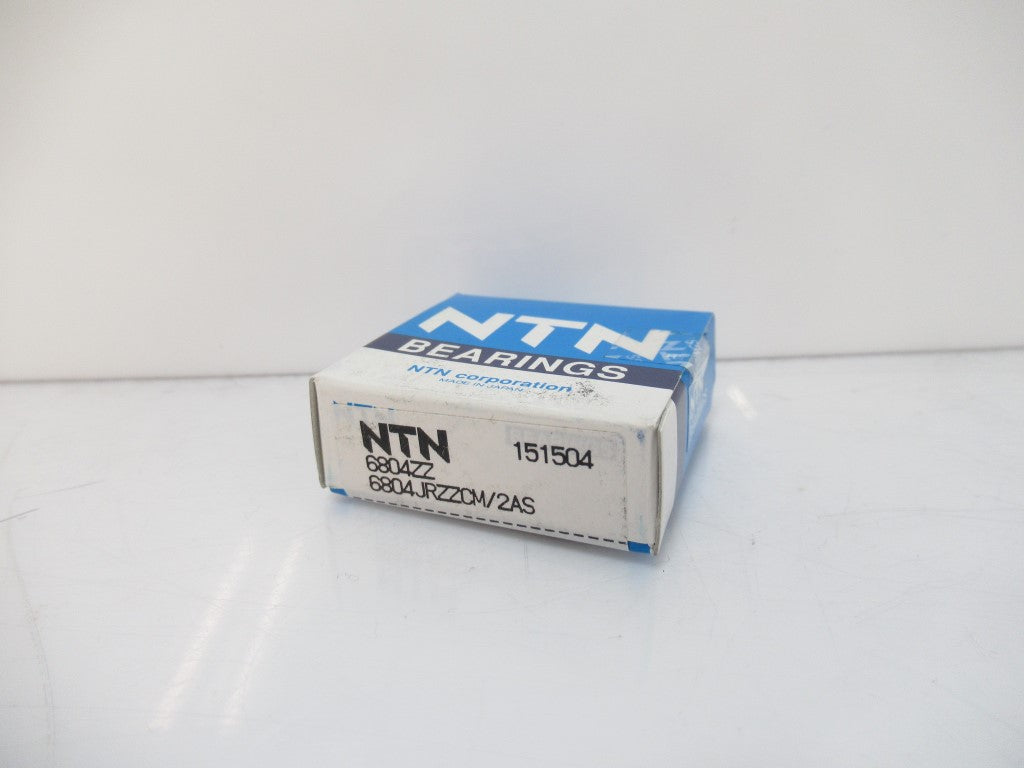

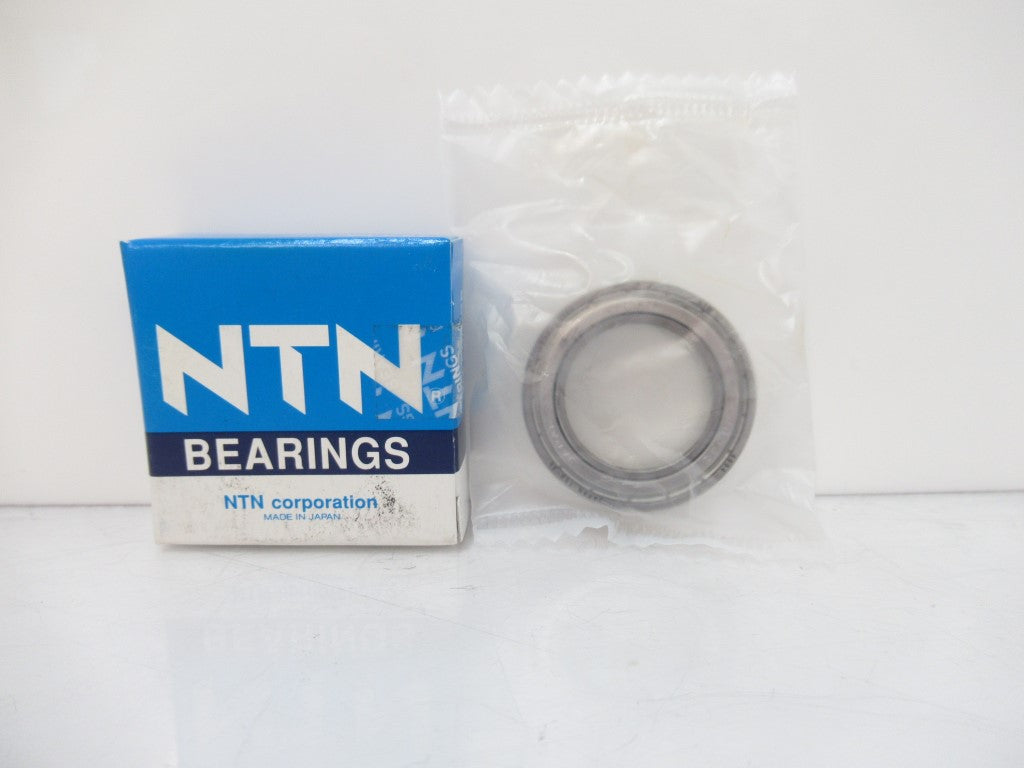

NTN 6804ZZ Single Row Radial Ball Bearing - Double Shielded
NTN 6804ZZ Single Row Radial Ball Bearing - Double Shielded is backordered and will ship as soon as it is back in stock.
As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 30% tariff.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival.
Items made in Canada and imported in the United States will be hit with a 25% fee upon arrival.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Country Of Origin:
Product Information
- No. In Set: Single Bearing
- Enclosure: Double Shielded
- Factor: 15.5
- Snap Ring: No Snap Ring
- Temperature Range [Min]: -40 °F
- Material: High Carbon Chrome Steel
- Rows Of Balls: Single
- O.D.: 32 mm
- Precision Level: ISO Class 0
- Fillet Radius: 0.3 mm
- I.D.: 20 mm
- Outer Ring Width: 7 mm
- Dynamic Load Rating: 4.003 kN
- Limiting Speed - Grease: 21000 RPM
- Bore Type: Round Bore
- Inner Ring Width: 7 mm
- Temperature Range [Max]: 250 °F
- Radial Internal Clearance: CN
- Inch/Metric: Metric
- Bearing Type: Deep Groove
- Ball Material: Steel
- Static Load Rating [Max]: 2.469 kN
- UPC: 4547359006148
- 6804JRZZCM/2AS
